Fig 6.18

Model of calcium-induced calcium release in hepatocytes

using Catalyst
using ModelingToolkit
using DifferentialEquations
using Plots
Plots.default(linewidth=2)

rn = @reaction_network begin
    @parameters I(t)
    (k1 * I, km1), R <--> RI
    (k2 * C, km2), RI <--> RIC
    (k3 * C, km3), RIC <--> RICC
    vr * (γ0 + γ1 * RIC) * (Cer - C), 0 --> C
    hill(C, p1, p2, 4), C => 0
end

\[\begin{split} \begin{align*} \mathrm{R} &\xrightleftharpoons[\mathtt{km1}]{\mathtt{k1} I\left( t \right)} \mathrm{\mathtt{RI}} \\ \mathrm{\mathtt{RI}} &\xrightleftharpoons[\mathtt{km2}]{C \mathtt{k2}} \mathrm{\mathtt{RIC}} \\ \mathrm{\mathtt{RIC}} &\xrightleftharpoons[\mathtt{km3}]{C \mathtt{k3}} \mathrm{\mathtt{RICC}} \\ \varnothing &\xrightleftharpoons[\frac{C^{4} \mathtt{p1}}{C^{4} + \mathtt{p2}^{4}}]{\left( - C + \mathtt{Cer} \right) \left( \mathtt{{\gamma}0} + \mathtt{RIC} \mathtt{{\gamma}1} \right) \mathtt{vr}} \mathrm{C} \end{align*} \end{split}\]

setdefaults!(rn, [
    :γ0 => 0.1,
    :γ1 => 20.5,
    :p1 => 8.5,
    :p2 => 0.065,
    :k1 => 12,
    :k2 => 15,
    :k3 => 1.8,
    :km1 => 8,
    :km2 => 1.65,
    :km3 => 0.21,
    :Cer => 8.37,
    :vr => 0.185,
    :I => 0,
    :C => 0,
    :R => 1,
    :RI => 0,
    :RIC => 0,
    :RICC => 0
])

osys = convert(ODESystem, rn; remove_conserved = true) |> structural_simplify
equations(osys)

┌ Warning: You are creating a system or problem while eliminating conserved quantities. Please note,
│         due to limitations / design choices in ModelingToolkit if you use the created system to
│         create a problem (e.g. an `ODEProblem`), or are directly creating a problem, you *should not*
│         modify that problem's initial conditions for species (e.g. using `remake`). Changing initial
│         conditions must be done by creating a new Problem from your reaction system or the
│         ModelingToolkit system you converted it into with the new initial condition map.
│         Modification of parameter values is still possible, *except* for the modification of any
│         conservation law constants (Γ), which is not possible. You might
│         get this warning when creating a problem directly.
│
│         You can remove this warning by setting `remove_conserved_warn = false`.
└ @ Catalyst ~/.julia/packages/Catalyst/48wH3/src/reactionsystem_conversions.jl:456

\[\begin{split} \begin{align} \frac{\mathrm{d} R\left( t \right)}{\mathrm{d}t} &= \mathtt{km1} \mathtt{RI}\left( t \right) - \mathtt{k1} R\left( t \right) I\left( t \right) \\ \frac{\mathrm{d} \mathtt{RI}\left( t \right)}{\mathrm{d}t} &= - \mathtt{km1} \mathtt{RI}\left( t \right) + \mathtt{km2} \mathtt{RIC}\left( t \right) + \mathtt{k1} R\left( t \right) I\left( t \right) - \mathtt{k2} \mathtt{RI}\left( t \right) C\left( t \right) \\ \frac{\mathrm{d} \mathtt{RIC}\left( t \right)}{\mathrm{d}t} &= - \mathtt{km2} \mathtt{RIC}\left( t \right) + \mathtt{km3} \left( - R\left( t \right) - \mathtt{RI}\left( t \right) - \mathtt{RIC}\left( t \right) + \Gamma_{1} \right) + \mathtt{k2} \mathtt{RI}\left( t \right) C\left( t \right) - \mathtt{k3} \mathtt{RIC}\left( t \right) C\left( t \right) \\ \frac{\mathrm{d} C\left( t \right)}{\mathrm{d}t} &= - hill\left( C\left( t \right), \mathtt{p1}, \mathtt{p2}, 4 \right) + \left( \mathtt{Cer} - C\left( t \right) \right) \mathtt{vr} \left( \mathtt{{\gamma}0} + \mathtt{RIC}\left( t \right) \mathtt{{\gamma}1} \right) \end{align} \end{split}\]

Fig 6.18 (A)

@unpack I = osys
prob = ODEProblem(osys, [], (0., 25.), [I => 2.0])
sol = solve(prob)

@unpack C, RIC, RICC = osys
plot(sol, idxs=[C, RIC, RICC], title="Fig 6.18 (A)", xlabel="Time", ylabel="Abundance", legend=:topright)

┌ Warning: Initialization system is overdetermined. 1 equations for 0 unknowns. Initialization will default to using least squares. `SCCNonlinearProblem` can only be used for initialization of fully determined systems and hence will not be used here. To suppress this warning pass warn_initialize_determined = false. To make this warning into an error, pass fully_determined = true
└ @ ModelingToolkit ~/.julia/packages/ModelingToolkit/klLLV/src/systems/diffeqs/abstractodesystem.jl:1354

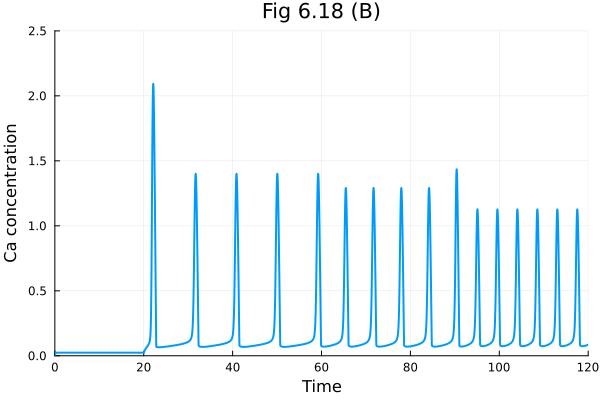

Fig 6.18 (B)

discrete_events = [[20] => [I ~ 0.7], [60] => [I ~ 1.2], [90] => [I ~ 4.0]]
osys618 = convert(ODESystem, rn; discrete_events, remove_conserved = true) |> structural_simplify

tend = 120.
prob = ODEProblem(osys618, [], tend)
sol = solve(prob)

plot(sol, idxs=[osys.C], title="Fig 6.18 (B)", xlabel="Time", ylabel="Ca concentration", legend=false, ylim=(0, 2.5))

┌ Warning: You are creating a system or problem while eliminating conserved quantities. Please note,
│         due to limitations / design choices in ModelingToolkit if you use the created system to
│         create a problem (e.g. an `ODEProblem`), or are directly creating a problem, you *should not*
│         modify that problem's initial conditions for species (e.g. using `remake`). Changing initial
│         conditions must be done by creating a new Problem from your reaction system or the
│         ModelingToolkit system you converted it into with the new initial condition map.
│         Modification of parameter values is still possible, *except* for the modification of any
│         conservation law constants (Γ), which is not possible. You might
│         get this warning when creating a problem directly.
│
│         You can remove this warning by setting `remove_conserved_warn = false`.
└ @ Catalyst ~/.julia/packages/Catalyst/48wH3/src/reactionsystem_conversions.jl:456
┌ Warning: Initialization system is overdetermined. 1 equations for 0 unknowns. Initialization will default to using least squares. `SCCNonlinearProblem` can only be used for initialization of fully determined systems and hence will not be used here. To suppress this warning pass warn_initialize_determined = false. To make this warning into an error, pass fully_determined = true
└ @ ModelingToolkit ~/.julia/packages/ModelingToolkit/klLLV/src/systems/diffeqs/abstractodesystem.jl:1354

---

This notebook was generated using Literate.jl.
