Oscillatory networks.

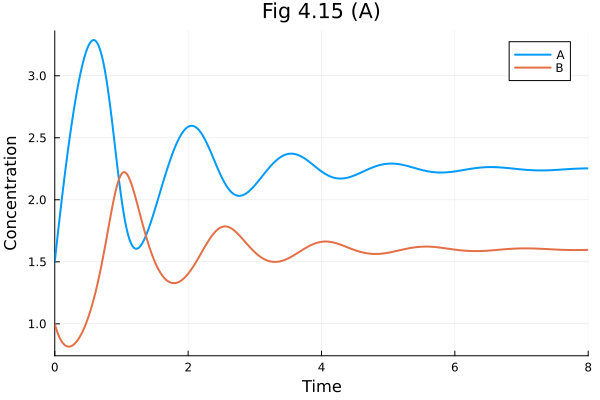

Figure 4.15 (A)#

using OrdinaryDiffEq
using ModelingToolkit
using Plots
Plots.default(linewidth=2)

The model

@independent_variables t
@variables A(t) B(t)
@parameters k0 k1 k2 n
D = Differential(t)

eqs = [
    D(A) ~ k0 - k1 * A * (1 + B^n),
    D(B) ~ k1 * A * (1 + B^n) - k2 * B
]

@mtkbuild osys = ODESystem(eqs, t)
\[\begin{split} \begin{align} \frac{\mathrm{d} A\left( t \right)}{\mathrm{d}t} &= \mathtt{k0} + \mathtt{k1} \left( -1 - \left( B\left( t \right) \right)^{n} \right) A\left( t \right) \\ \frac{\mathrm{d} B\left( t \right)}{\mathrm{d}t} &= - \mathtt{k2} B\left( t \right) + \mathtt{k1} \left( 1 + \left( B\left( t \right) \right)^{n} \right) A\left( t \right) \end{align} \end{split}\]
tend = 8.0
ps1 = Dict(k0 => 8, k1 => 1, k2 => 5, n => 2)
prob = ODEProblem(osys, [A => 1.5, B => 1.0], tend, ps1)
u0s = [
    [1.5, 1.0],
    [0.0, 1.0],
    [0.0, 3.0],
    [2.0, 0.0],
]

sols = map(u0s) do u0
    solve(remake(prob, u0=u0))
end

plot(sols[1], xlabel="Time", ylabel="Concentration", title ="Fig 4.15 (A)", xlims=(0, 8))
../_images/b3b04c8d833caf1e6639e0b9a06afd5c05b71c64f39e75934783304b61a0a7e8.png

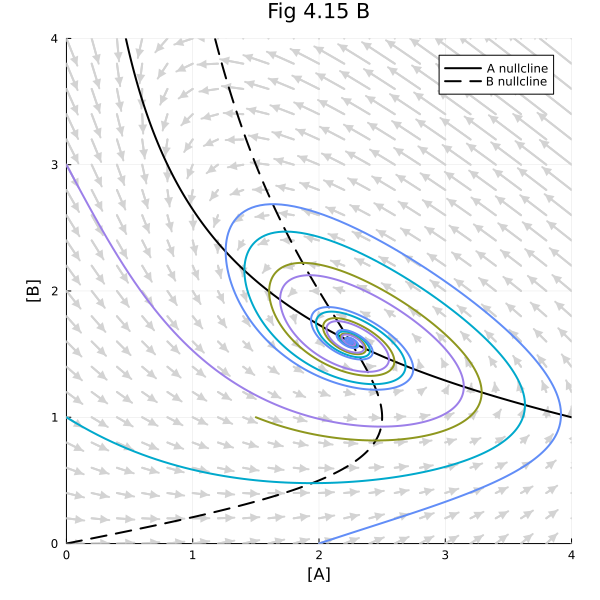

Fig 4.15 (B)#

∂F415 = function (x, y; scale=20)
    da, db = prob.f([x, y], prob.p, nothing)
    s = sqrt(hypot(da, db)) * scale
    return (da / s, db / s)
end

∂A415 = (x, y) -> prob.f([x, y], prob.p, nothing)[1]
∂B415 = (x, y) -> prob.f([x, y], prob.p, nothing)[2]

#8 (generic function with 1 method)

Grid points

r = range(0, 4, 21)
xx = [x for y in r, x in r]
yy = [y for y in r, x in r];

fig = plot(title="Fig 4.15 B")
quiver!(fig, xx, yy, quiver=∂F415, line=(:lightgrey), arrow=(:closed), aspect_ratio=:equal)
contour!(fig, 0:0.01:4, 0:0.01:4, ∂A415, levels=[0], cbar=false, line=(:black))
plot!(fig, Float64[], Float64[], line=(:black), label="A nullcline")
contour!(fig, 0:0.01:4, 0:0.01:4, ∂B415, levels=[0], cbar=false, line=(:black, :dash))
plot!(fig, Float64[], Float64[], line=(:black, :dash), label="B nullcline")
for sol in sols
    plot!(fig, sol, idxs=(A, B), label=nothing)
end
plot!(fig, xlim=(0, 4), ylim=(0, 4), legend=:topright, size=(600, 600), xlabel="[A]", ylabel="[B]")
../_images/9a92ef30ed104d1e1d4dfc0610d6c2df19f402d0200a789de6a4111d80513610.png

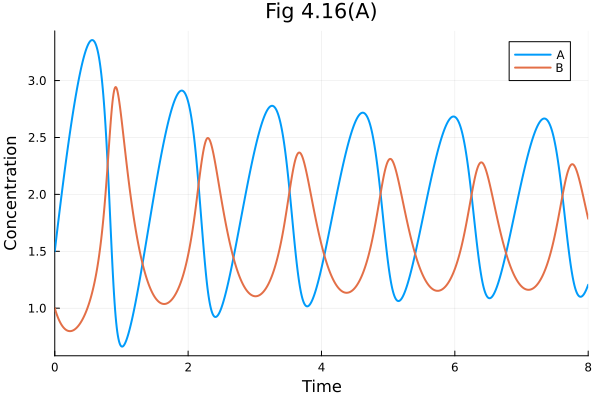

Fig 4.16 A#

Oscillatory parameter set

ps2 = Dict(k0 => 8, k1 => 1, k2 => 5, n => 2.5)
tend = 100.0
u0s = [
    [1.5, 1.0],
    [0.0, 1.0],
    [0.0, 3.0],
    [2.0, 0.0],
]

prob416 = remake(prob, p=ps2)

sols = map(u0s) do u0
    solve(remake(prob416, u0=u0))
end

plot(sols[1], xlabel="Time", ylabel="Concentration", title ="Fig 4.16(A)", xlims=(0, 8))
../_images/e69a3c189422fc2a0b709acd10446ed38838e12b9b58dc81fa453c6e3ad02a5b.png

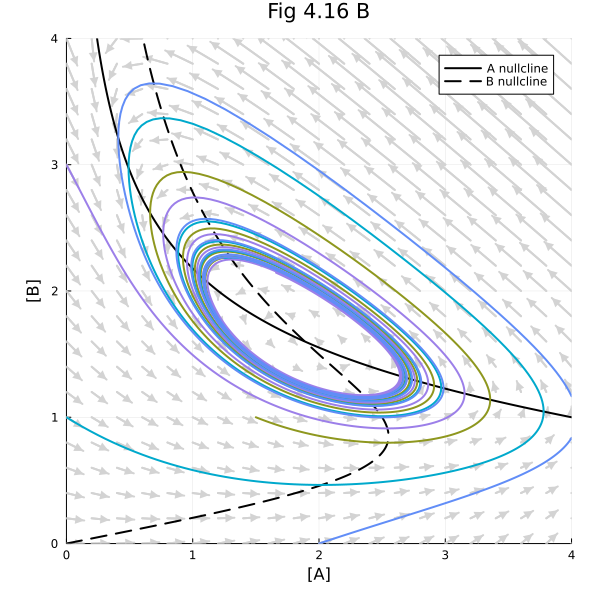

Fig 4.16 b#

∂F416 = function (x, y; scale=20)
    da, db = prob416.f([x, y], prob416.p, nothing)
    s = sqrt(hypot(da, db)) * scale
    return (da / s, db / s)
end
∂A416 = (x, y) -> prob416.f([x, y], prob416.p, nothing)[1]
∂B416 = (x, y) -> prob416.f([x, y], prob416.p, nothing)[2]

#21 (generic function with 1 method)

r = range(0, 4, 21)
xx = [x for y in r, x in r]
yy = [y for y in r, x in r];

fig = plot(title="Fig 4.16 B")
quiver!(fig, xx, yy, quiver=∂F416, line=(:lightgrey), arrow=(:closed), aspect_ratio=:equal)
contour!(fig, 0:0.01:4, 0:0.01:4, ∂A416, levels=[0], cbar=false, line=(:black))
plot!(fig, Float64[], Float64[], line=(:black), label="A nullcline")
contour!(fig, 0:0.01:4, 0:0.01:4, ∂B416, levels=[0], cbar=false, line=(:black, :dash))
plot!(fig, Float64[], Float64[], line=(:black, :dash), label="B nullcline")
for sol in sols
    plot!(fig, sol, idxs=(A, B), label=nothing)
end
plot!(fig, xlim=(0, 4), ylim=(0, 4), legend=:topright, size=(600, 600), xlabel="[A]", ylabel="[B]")
../_images/2b0bc034b592408602a3f54c064c56971b13583ac817defa4e7c9dcdec3e5f82.png

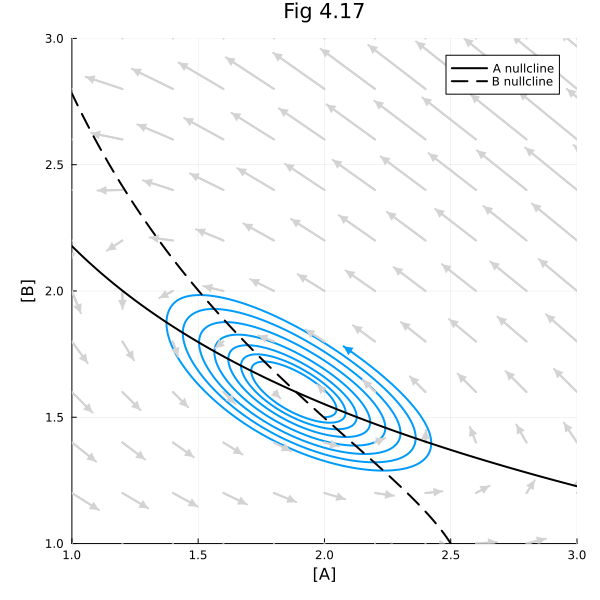

Fig 4.17#

prob417 = remake(prob, p=ps2, u0=[2.0, 1.5], tspan=10.0)
sol = solve(prob417)

fig = plot(title="Fig 4.17")
plot!(fig, sol, idxs=(A, B), label=nothing, arrow=:closed)
quiver!(fig, xx, yy, quiver=∂F416, line=(:lightgrey), arrow=(:closed), aspect_ratio=:equal)
contour!(fig, 1:0.01:3, 1:0.01:3, ∂A416, levels=[0], cbar=false, line=(:black))
plot!(fig, identity, 0, 0, line=(:black), label="A nullcline")
contour!(fig, 1:0.01:3, 1:0.01:3, ∂B416, levels=[0], cbar=false, line=(:black, :dash))
plot!(fig, identity, 0, 0, line=(:black, :dash), label="B nullcline")
plot!(fig, xlims=(1, 3), ylims=(1, 3), legend=:topright, size=(600, 600), xlabel="[A]", ylabel="[B]")
../_images/de9befaad11929aa17a88aee35a6017802ef6ae86d0a83c1a6859e96b2a3452c.png
