Pacing frequency

using ModelingToolkit
using OrdinaryDiffEq, SteadyStateDiffEq, DiffEqCallbacks
using Plots
using CSV
using DataFrames
using CurveFit
using CaMKIIModel
using CaMKIIModel: second
Plots.default(lw=1.5)

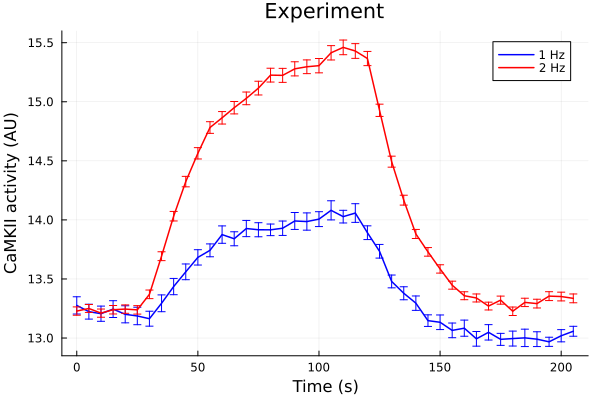

Experiments

freqdf = CSV.read(joinpath(@__DIR__, "data/CaMKAR-freq.csv"), DataFrame)
ts = 0:5:205
onehz = freqdf[!, "1Hz (Mean)"]
onehz_error = freqdf[!, "1Hz (SD)"] ./ sqrt.(freqdf[!, "1Hz (N)"])
twohz = freqdf[!, "2Hz (Mean)"]
twohz_error = freqdf[!, "2Hz (SD)"] ./ sqrt.(freqdf[!, "2Hz (N)"])

plot(ts, onehz, yerr=onehz_error, lab="1 Hz", color=:blue, markerstrokecolor=:blue)
plot!(ts, twohz, yerr=twohz_error, lab="2 Hz", color=:red, markerstrokecolor=:red)
plot!(title="Experiment", xlabel="Time (s)", ylabel="CaMKII activity (AU)")

savefig("pacing-frequency-exp.pdf")
"/home/github/actions-runner-1/_work/camkii-cardiomyocyte-model/camkii-cardiomyocyte-model/docs/pacing-frequency-exp.pdf"

Simulations

@time "Build system" sys = build_neonatal_ecc_sys(simplify=true, reduce_iso=true, reduce_camk=true)
tend = 205.0second
@time "Build problem" prob = ODEProblem(sys, [], tend)

@unpack Istim = sys
stimstart = 30.0second
stimend = 120.0second
callback = build_stim_callbacks(Istim, stimend; period=1second, starttime=stimstart)

alg = KenCarp47()
@time "Solve problem" sol1 = solve(prob, alg; callback)

callback2 = build_stim_callbacks(Istim, stimend; period=0.5second, starttime=stimstart)
@time "Solve problem" sol2 = solve(prob, alg; callback=callback2)

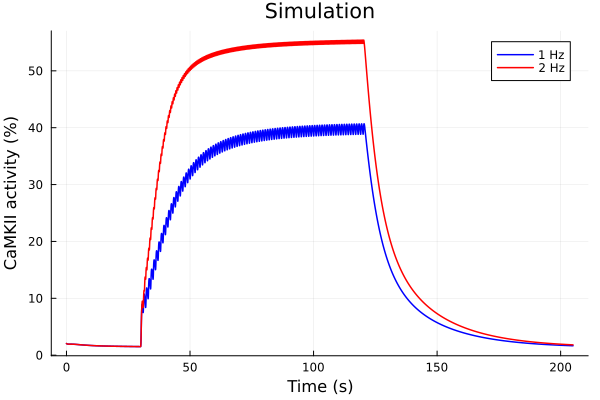

idxs = (sys.t / 1000, sys.CaMKAct * 100)

plot(sol1, idxs=idxs, lab="1 Hz", color=:blue)
plot!(sol2, idxs=idxs, lab="2 Hz", color=:red)
plot!(title="Simulation", xlabel="Time (s)", ylabel="CaMKII activity (%)")
Build system: 54.988547 seconds (95.98 M allocations: 4.526 GiB, 2.71% gc time, 94.83% compilation time: 32% of which was recompilation)
Build problem: 28.972936 seconds (54.57 M allocations: 2.622 GiB, 2.37% gc time, 97.21% compilation time: 38% of which was recompilation)
Solve problem: 11.167553 seconds (23.64 M allocations: 1.097 GiB, 8.02% gc time, 94.14% compilation time)
Solve problem: 1.038367 seconds (58.67 k allocations: 13.288 MiB)

savefig("pacing-frequency-sim.pdf")
"/home/github/actions-runner-1/_work/camkii-cardiomyocyte-model/camkii-cardiomyocyte-model/docs/pacing-frequency-sim.pdf"

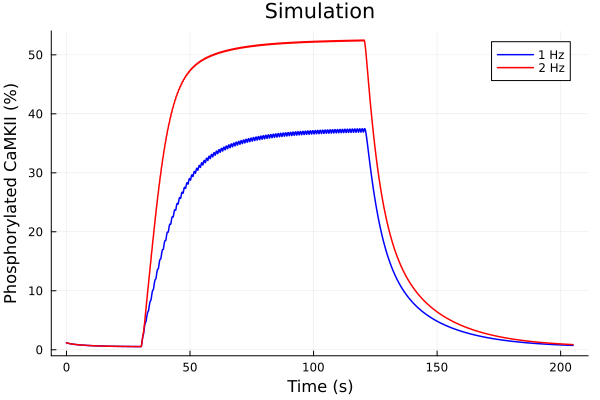

Phosphorylated fraction

idxs = (sys.t / 1000, (sys.CaMKP + sys.CaMKA + sys.CaMKA2) * 100)
plot(sol1, idxs=idxs, lab="1 Hz", color=:blue)
plot!(sol2, idxs=idxs, lab="2 Hz", color=:red)
plot!(title="Simulation", xlabel="Time (s)", ylabel="Phosphorylated CaMKII (%)")

savefig("pacing-frequency-phos.pdf")
"/home/github/actions-runner-1/_work/camkii-cardiomyocyte-model/camkii-cardiomyocyte-model/docs/pacing-frequency-phos.pdf"

This notebook was generated using Literate.jl.
