Pacing durations - NRVM CaMKII model

Experiments vs simulations.

using Model
using Model: second, Hz

using CSV
using CurveFit
using DataFrames
using DiffEqCallbacks
using DifferentialEquations
using ModelingToolkit
using ModelingToolkit: t_nounits as t
using OrdinaryDiffEqSDIRK
using Plots
using SteadyStateDiffEq
Plots.default(lw=1.5)

Experiments¶

30 sec resting + N sec 1Hz pacing + resting.

durationdf = CSV.read(joinpath(@__DIR__, "data/CaMKAR-duration.csv"), DataFrame)
ts = durationdf[!, "Time(sec)"]
fifteen = durationdf[!, "1Hz 15sec (Mean)"]
fifteen_error = durationdf[!, "1Hz 15sec (SD)"] ./ sqrt.(durationdf[!, "1Hz 15sec (N)"])
thirty = durationdf[!, "1Hz 30sec (Mean)"]
thirty_error = durationdf[!, "1Hz 30sec (SD)"] ./ sqrt.(durationdf[!, "1Hz 30sec (N)"])
sixty = durationdf[!, "1Hz 60sec (Mean)"]
sixty_error = durationdf[!, "1Hz 60sec (SD)"] ./ sqrt.(durationdf[!, "1Hz 60sec (N)"])
ninety = durationdf[!, "1Hz 90sec (Mean)"]
ninety_error = durationdf[!, "1Hz 90sec (SD)"] ./ sqrt.(durationdf[!, "1Hz 90sec (N)"])

42-element Vector{Float64}:
 0.07322025867393339
 0.06288123803690504
 0.06438696849626417
 0.07094952584857149
 0.0722214908336562
 0.07401047293769683
 0.06323601113333674
 0.07088528768397788
 0.06905459448562148
 0.06667878213772092
 ⋮
 0.06219021582828689
 0.06524406587899219
 0.05082442404251369
 0.06307382411198
 0.07385218047440929
 0.062460484843557096
 0.03877222159045237
 0.05170103726195504
 0.042024632430084405

Note that 30 sec timeseries have a lower baseline and 90 sec timeseries have a higher baseline before pacing.

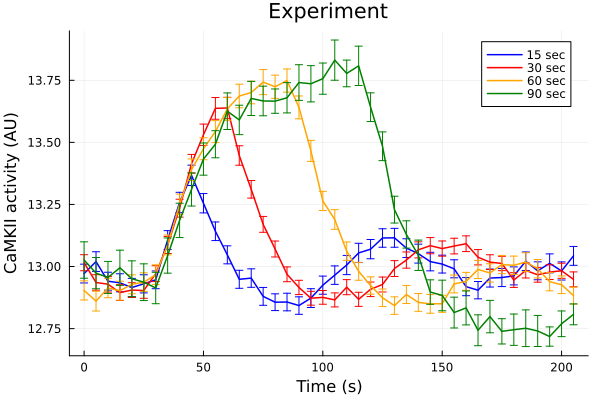

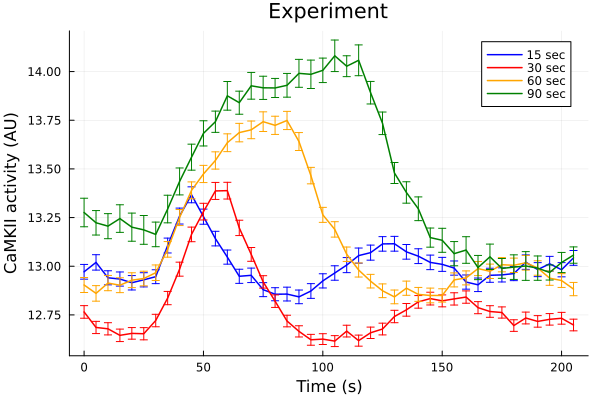

plot(ts, fifteen, yerr=fifteen_error, lab="15 sec", color=:blue, markerstrokecolor=:blue)
plot!(ts, thirty, yerr=thirty_error, lab="30 sec", color=:red, markerstrokecolor=:red)
plot!(ts, sixty, yerr=sixty_error, lab="60 sec", color=:orange, markerstrokecolor=:orange)
plot!(ts, ninety, yerr=ninety_error, lab="90 sec", color=:green, markerstrokecolor=:green)
plot!(title="Experiment", xlabel="Time (s)", ylabel="CaMKII activity (AU)")

savefig("pacing-duration-exp.pdf")
savefig("pacing-duration-exp.png")

"/home/github/actions-runner-2/_work/camkii-cardiomyocyte-model/camkii-cardiomyocyte-model/docs/pacing-duration-exp.png"

Simulation¶

@time "Build system" sys = Model.DEFAULT_SYS
tend = 210second
@time "Build problem" prob = ODEProblem(sys, [], (0second, tend))
alg = KenCarp4()

Build system: 0.000036 seconds (48 allocations: 2.203 KiB)
Build problem: 78.574912 seconds (124.50 M allocations: 6.104 GiB, 4.43% gc time, 99.73% compilation time: 11% of which was recompilation)

KenCarp4(; linsolve = nothing, nlsolve = OrdinaryDiffEqNonlinearSolve.NLNewton{Rational{Int64}, Rational{Int64}, Rational{Int64}, Nothing}(1//100, 10, 1//5, 1//5, false, true, nothing), smooth_est = true, extrapolant = linear, step_limiter! = trivial_limiter!, autodiff = ADTypes.AutoForwardDiff(), concrete_jac = nothing,)

stimstart = 30second
@unpack Istim, CaMKAct = sys
idxs = (t / 1000, CaMKAct)

sols = map((15, 30, 60, 90)) do dur
    cb = build_stim_callbacks(Istim, stimstart + dur * second; period=1second, starttime=stimstart)
    sol = solve(prob, alg; callback=cb)
end

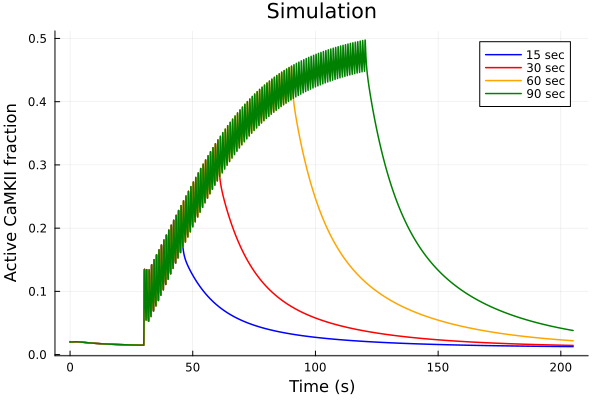

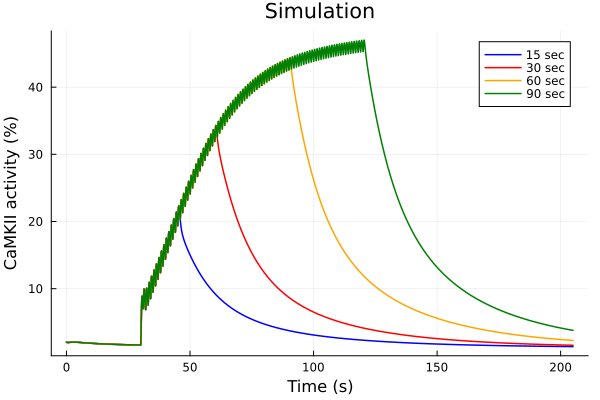

plot(title="Simulation")

for (sol, dur, color) in zip(sols, (15, 30, 60, 90), (:blue, :red, :orange, :green))
    plot!(sol, idxs=idxs, tspan=(0second, 205second), lab="$dur sec", color=color)
end

plot!(xlabel="Time (s)", ylabel="Active CaMKII fraction")

savefig("pacing-duration-sim.pdf")
savefig("pacing-duration-sim.png")

"/home/github/actions-runner-2/_work/camkii-cardiomyocyte-model/camkii-cardiomyocyte-model/docs/pacing-duration-sim.png"

Decay rates¶

Fit data from experiments and simulations against an exponential decay model.

Record 50 seconds after pacing ends.

ts = collect(range(0.0, stop=50.0, step=5.0)) ## in seconds

ydata_15 = fifteen[10:20]
ydata_30 = thirty[13:23]
ydata_60 = sixty[19:29]
ydata_90 = ninety[25:35]

11-element Vector{Float64}:
 13.89164293
 13.73430494
 13.47906779
 13.37909541
 13.29527631
 13.14725458
 13.13348484
 13.06471802
 13.08336721
 12.99340616
 13.04848118

Simulation points

ysim_15 = sols[1](stimstart+15second:5second:stimstart+15second+50second ; idxs=sys.CaMKAct * 100).u
ysim_30 = sols[2](stimstart+30second:5second:stimstart+30second+50second ; idxs=sys.CaMKAct * 100).u
ysim_60 = sols[3](stimstart+60second:5second:stimstart+60second+50second ; idxs=sys.CaMKAct * 100).u
ysim_90 = sols[4](stimstart+90second:5second:stimstart+90second+50second ; idxs=sys.CaMKAct * 100).u

11-element Vector{Float64}:
 44.81684933831418
 35.55473413472768
 27.844712625927308
 22.45556736675176
 18.546953177388716
 15.61258463816494
 13.341815831583798
 11.538576069044609
 10.074965581307097
  8.865462103033392
  7.851377304622975

Fit

fit_15 = solve(CurveFitProblem(ts, ydata_15), ExpSumFitAlgorithm(n=1, withconst=true))
fit_30 = solve(CurveFitProblem(ts, ydata_30), ExpSumFitAlgorithm(n=1, withconst=true))
fit_60 = solve(CurveFitProblem(ts, ydata_60), ExpSumFitAlgorithm(n=1, withconst=true))
fit_90 = solve(CurveFitProblem(ts, ydata_90), ExpSumFitAlgorithm(n=1, withconst=true))

fit_sim_15 = solve(CurveFitProblem(ts, ysim_15), ExpSumFitAlgorithm(n=1, withconst=true))
fit_sim_30 = solve(CurveFitProblem(ts, ysim_30), ExpSumFitAlgorithm(n=1, withconst=true))
fit_sim_60 = solve(CurveFitProblem(ts, ysim_60), ExpSumFitAlgorithm(n=1, withconst=true))
fit_sim_90 = solve(CurveFitProblem(ts, ysim_90), ExpSumFitAlgorithm(n=1, withconst=true))

retcode: Success
alg: ExpSumFitAlgorithm
residuals mean: 2.4223047810003414e-16
u: [5.664165007372851, 39.10258079560866, -0.055270779777872675]

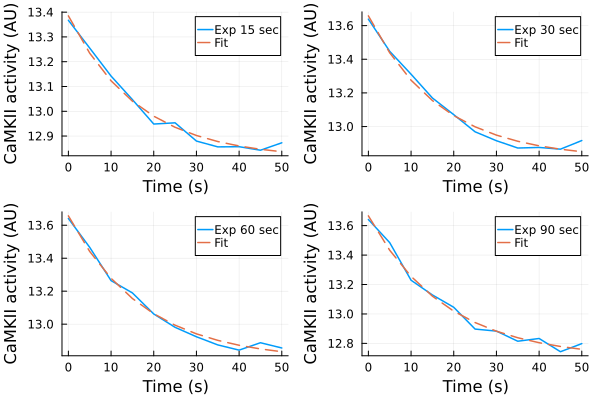

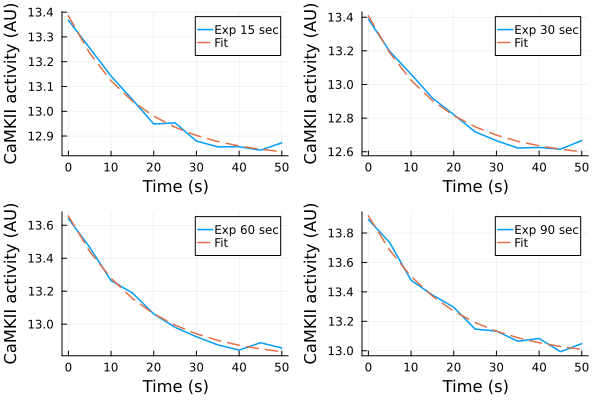

Fitting results (experiments)¶

p1 = plot(ts, ydata_15, label="Exp 15 sec")
plot!(p1, ts, predict(fit_15), label="Fit", linestyle=:dash)
p2 = plot(ts, ydata_30, label="Exp 30 sec")
plot!(p2, ts, predict(fit_30), label="Fit", linestyle=:dash)
p3 = plot(ts, ydata_60, label="Exp 60 sec")
plot!(p3, ts, predict(fit_60), label="Fit", linestyle=:dash)
p4 = plot(ts, ydata_90, label="Exp 90 sec")
plot!(p4, ts, predict(fit_90), label="Fit", linestyle=:dash)
plot(p1, p2, p3, p4, layout=(2,2), xlabel="Time (s)", ylabel="CaMKII activity (AU)")

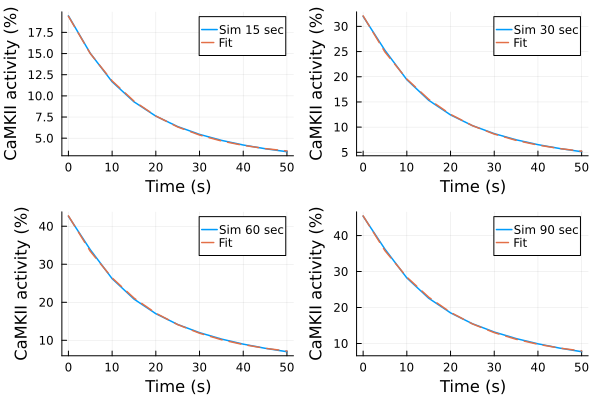

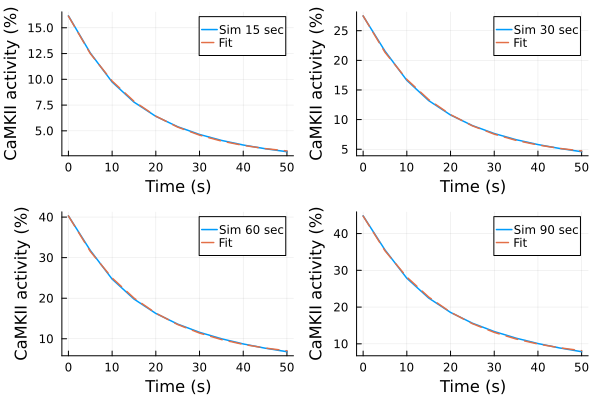

Fitting results (simulations)¶

p1s = plot(ts, ysim_15, label="Sim 15 sec")
plot!(p1s, ts, predict(fit_sim_15), label="Fit", linestyle=:dash)
p2s = plot(ts, ysim_30, label="Sim 30 sec")
plot!(p2s, ts, predict(fit_sim_30), label="Fit", linestyle=:dash)
p3s = plot(ts, ysim_60, label="Sim 60 sec")
plot!(p3s, ts, predict(fit_sim_60), label="Fit", linestyle=:dash)
p4s = plot(ts, ysim_90, label="Sim 90 sec")
plot!(p4s, ts, predict(fit_sim_90), label="Fit", linestyle=:dash)
plot(p1s, p2s, p3s, p4s, layout=(2,2), xlabel="Time (s)", ylabel="CaMKII activity (%)")

Decay time scales (tau)¶

tau_exp_15 = inv(-fit_15.u.λ[])
tau_exp_30 = inv(-fit_30.u.λ[])
tau_exp_60 = inv(-fit_60.u.λ[])
tau_exp_90 = inv(-fit_90.u.λ[])
tau_sim_15 = inv(-fit_sim_15.u.λ[])
tau_sim_30 = inv(-fit_sim_30.u.λ[])
tau_sim_60 = inv(-fit_sim_60.u.λ[])
tau_sim_90 = inv(-fit_sim_90.u.λ[])

println("The time scales for experiments: ")
for (tau, dur) in zip((tau_exp_15, tau_exp_30, tau_exp_60, tau_exp_90), (15, 30, 60, 90))
    println("$dur sec pacing is $(round(tau; digits=2)) seconds.")
end

println("The time scales for simulations: ")
for (tau, dur) in zip((tau_sim_15, tau_sim_30, tau_sim_60, tau_sim_90), (15, 30, 60, 90))
    println("$dur sec pacing is $(round(tau; digits=2)) seconds.")
end

The time scales for experiments:
15 sec pacing is 16.48 seconds.
30 sec pacing is 16.73 seconds.
60 sec pacing is 17.65 seconds.
90 sec pacing is 18.08 seconds.
The time scales for simulations:
15 sec pacing is 16.25 seconds.
30 sec pacing is 16.94 seconds.
60 sec pacing is 17.61 seconds.
90 sec pacing is 18.09 seconds.

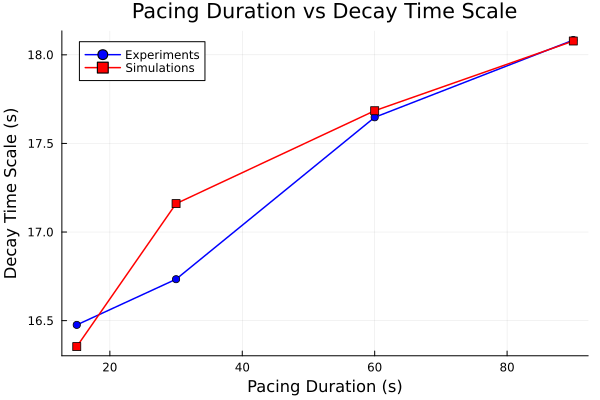

Plot pacing time vs decay time scale

pacing_durations = [15.0, 30.0, 60.0, 90.0]
tau_experiments = [tau_exp_15, tau_exp_30, tau_exp_60, tau_exp_90]
tau_simulations = [tau_sim_15, tau_sim_30, tau_sim_60, tau_sim_90]
plot(pacing_durations, tau_experiments, label="Experiments", marker=:circle, color=:blue)
plot!(pacing_durations, tau_simulations, label="Simulations", marker=:square, color=:red)
plot!(title="Pacing Duration vs Decay Time Scale", xlabel="Pacing Duration (s)", ylabel="Decay Time Scale (s)")

savefig("pacing-duration-tau.pdf")
savefig("pacing-duration-tau.png")

"/home/github/actions-runner-2/_work/camkii-cardiomyocyte-model/camkii-cardiomyocyte-model/docs/pacing-duration-tau.png"

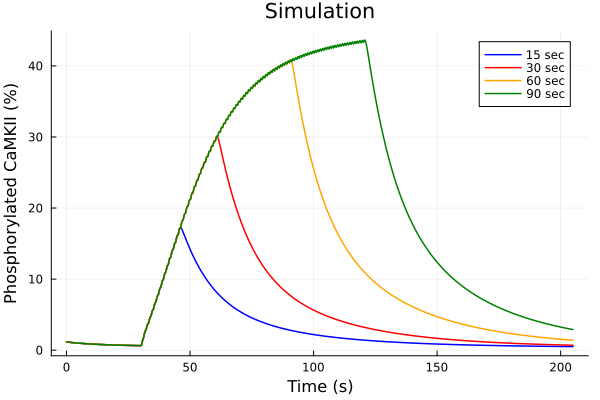

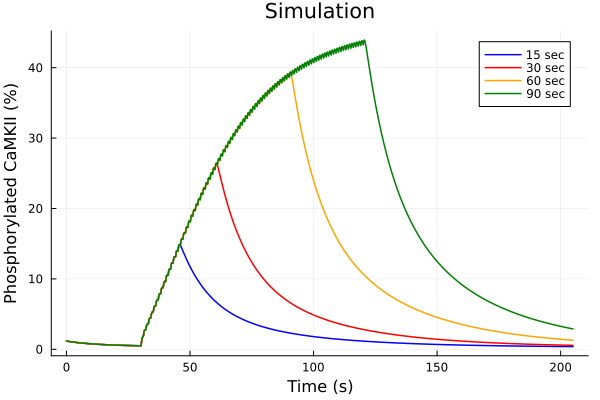

Phosphorylated fraction¶

idxs = (sys.t / 1000, (sys.CaMKP + sys.CaMKA + sys.CaMKA2) * 100)
tspan = (0second, 205second)
plot(sols[1], idxs=idxs, tspan=tspan, lab="15 sec", color=:blue)
plot!(sols[2], idxs=idxs, tspan=tspan, lab="30 sec", color=:red)
plot!(sols[3], idxs=idxs, tspan=tspan, lab="60 sec", color=:orange)
plot!(sols[4], idxs=idxs, tspan=tspan, lab="90 sec", color=:green)
plot!(title="Simulation", xlabel="Time (s)", ylabel="Phosphorylated CaMKII (%)")

savefig("pacing-duration-phos.pdf")
savefig("pacing-duration-phos.png")

"/home/github/actions-runner-2/_work/camkii-cardiomyocyte-model/camkii-cardiomyocyte-model/docs/pacing-duration-phos.png"

This notebook was generated using Literate.jl.
