Complex III model#
Comparing Gauthier and my complex III models
using ModelingToolkit
using ModelingToolkit: t_nounits as t, D_nounits as D
using SteadyStateDiffEq
using OrdinaryDiffEq
using Plots
using ECMEDox
using ECMEDox: mM, μM, iVT, mV, Molar, Hz, ms, minute
# complex III and the Q cycle from Gauthier, 2013
# Adapted from Demin, 2001
function c3_gauthier(;
dpsi=150mV,
MT_PROT=1,
O2=6μM,
sox_m=0.001μM,
h_i=exp10(-7) * Molar,
h_m=exp10(-7.6) * Molar,
ANTIMYCIN_BLOCK=0,
MYXOTHIAZOLE_BLOCK=0,
UQ = 3600μM,
UQH2 = 400μM,
cytc_ox = 208μM,
cytc_rd = 325μM - cytc_ox,
name = :c3_gauthier
)
@parameters begin
rhoC3 = 325μM ## Complex III activity
rhoQo = rhoC3 ## Qo seat
rhoQi = rhoC3 ## Qi seat
Q_T = 4mM ## Total CoQ pool
EmSQp_QH2p = +290mV
EmQp_SQp = -170mV
EmQn_SQn = +50mV
EmSQn_QH2n = +150mV
EmbL_bHo = -40mV
EmbL_bHr = EmbL_bHo - 60mV
EmbH_bLo = +20mV
EmbH_bLr = EmbH_bLo - 60mV
EmFeS = +280mV
Emcytc1 = +245mV
Emcytc = +265mV
EmO2 = -160mV
K03_C3 = 1666.63Hz / mM
KEQ3_C3 = exp(iVT * (EmFeS - EmSQp_QH2p)) ## -10mV
K04_C3 = 50.67Hz / mM
KEQ4_OX_C3 = exp(iVT * (EmbL_bHo - EmQp_SQp)) ## +130mV
KEQ4_RD_C3 = exp(iVT * (EmbL_bHr - EmQp_SQp)) ## +70mV
KD_Q = 22000Hz
K06_C3 = 166.67Hz
KEQ6_C3 = exp(iVT * (EmbH_bLo - EmbL_bHo)) ## +60mV
K07_OX_C3 = 13.33Hz / mM
K07_RD_C3 = 1.67Hz / mM
KEQ7_OX_C3 = exp(iVT * (EmQn_SQn - EmbH_bLo)) ## +30mV
KEQ7_RD_C3 = exp(iVT * (EmQn_SQn - EmbH_bLr)) ## +90mV
K08_OX_C3 = 83.33Hz / mM
K08_RD_C3 = 8.33Hz / mM
KEQ8_OX_C3 = exp(iVT * (EmSQn_QH2n - EmbH_bLo)) ## +130mV
KEQ8_RD_C3 = 9.4546 ## +60mV??? should be +190mV?
K09_C3 = 832.48Hz / mM
KEQ9_C3 = exp(iVT * (Emcytc1 - EmFeS)) ## -35mV
K010_C3 = 28.33Hz / mM
KEQ10_C3 = exp(iVT * (EmO2 - EmQp_SQp)) ## +10mV
K33_C3 = 2469.13Hz / mM
KEQ33_C3 = exp(iVT * (Emcytc - Emcytc1)) ## +20mV
end
# complex III inhibition by DOX and antimycin
C3_CONC = rhoC3 * MT_PROT
@variables begin
Q_n(t)
QH2_n(t)
QH2_p(t)
Q_p(t)
SQp(t) = 0
SQn(t) = 0
fes_ox(t) = C3_CONC
fes_rd(t) ## Conserved
cytc1_ox(t) = C3_CONC
cytc1_rd(t) ## Conserved
cytb_1(t) = C3_CONC
cytb_2(t) = 0
cytb_3(t) = 0
cytb_4(t) ## Conserved
fracbLrd(t)
fracbHrd(t)
vROSC3(t)
vHresC3(t)
end
# Split of electrical potentials
δ₁_C3 = 0.5
δ₂_C3 = 0.5
δ₃_C3 = 0.5
# Split of the electrical distance across the IMM
α_C3 = 0.25
β_C3 = 0.5
γ_C3 = 0.25
fHi = h_i * inv(1E-7Molar)
fHm = h_m * inv(1E-7Molar)
# QH2 + FeS = QH + FeS- + H+
Qo_avail = (rhoQo - SQp) / rhoQo * (1 - MYXOTHIAZOLE_BLOCK)
v3 = K03_C3 * (KEQ3_C3 * Qo_avail * fes_ox * QH2_p - fes_rd * SQp * fHi)
# v4: QH + bL = Qp + bL- + H+
el4 = exp(-iVT * α_C3 * δ₁_C3 * dpsi)
er4 = exp(iVT * α_C3 * (1 - δ₁_C3) * dpsi)
v4ox = K04_C3 * (KEQ4_OX_C3 * SQp * el4 * cytb_1 - Q_p * er4 * cytb_2 * fHi)
v4rd = K04_C3 * (KEQ4_RD_C3 * SQp * el4 * cytb_3 - Q_p * er4 * cytb_4 * fHi)
# v5 = Q diffusion (p-side -> n-side)
v5 = KD_Q * (Q_p - Q_n)
# v6 = bL to bH
v6 = K06_C3 * (KEQ6_C3 * cytb_2 * exp(-iVT * β_C3 * δ₂_C3 * dpsi) - cytb_3 * exp(iVT * β_C3 * (1 - δ₂_C3) * dpsi))
# v7 = bH to Qn; v8: bH to SQn
Qi_avail = (rhoQi - SQn) / rhoQi * (1 - ANTIMYCIN_BLOCK)
el7 = exp(-iVT * γ_C3 * δ₃_C3 * dpsi)
er7 = exp(iVT * γ_C3 * (1 - δ₃_C3) * dpsi)
qn = Q_n * Qi_avail
qh2n = QH2_n * Qi_avail
v7ox = K07_OX_C3 * (KEQ7_OX_C3 * cytb_3 * qn * el7 - cytb_1 * SQn * er7)
v7rd = K07_RD_C3 * (KEQ7_RD_C3 * cytb_4 * qn * el7 - cytb_2 * SQn * er7)
v8ox = K08_OX_C3 * (KEQ8_OX_C3 * cytb_3 * SQn * fHm^2 * el7 - cytb_1 * qh2n * er7)
v8rd = K08_RD_C3 * (KEQ8_RD_C3 * cytb_4 * SQn * fHm^2 * el7 - cytb_2 * qh2n * er7)
# v9 = fes -> cytc1
v9 = K09_C3 * (KEQ9_C3 * fes_rd * cytc1_ox - fes_ox * cytc1_rd)
# v10: SQp + O2 -> O2- + Q
v10 = K010_C3 * (KEQ10_C3 * O2 * SQp - sox_m * Q_p)
# cytc1_2+ + cytc_3+ = cytc1_3+ + cytc_2+
v33 = K33_C3 * (KEQ33_C3 * cytc1_rd * cytc_ox - cytc1_ox * cytc_rd)
eqs = [
C3_CONC ~ cytb_1 + cytb_2 + cytb_3 + cytb_4,
C3_CONC ~ fes_ox + fes_rd,
C3_CONC ~ cytc1_ox + cytc1_rd,
Q_n ~ 0.5 * UQ,
Q_p ~ 0.5 * UQ,
QH2_n ~ 0.5 * UQH2,
QH2_p ~ 0.5 * UQH2,
fracbLrd ~ (cytb_2 + cytb_4) / C3_CONC,
fracbHrd ~ (cytb_3 + cytb_4) / C3_CONC,
# D(UQH2) ~ dQH2n + dQH2p,
D(SQn) ~ v7ox + v7rd - v8ox - v8rd,
D(SQp) ~ v3 - v10 - v4ox - v4rd,
D(cytb_1) ~ v7ox + v8ox - v4ox,
D(cytb_2) ~ v4ox + v7rd + v8rd - v6,
D(cytb_3) ~ v6 - v4rd - v7ox - v8ox,
# D(cytb_4) = v4rd - v7rd - v8rd
D(fes_ox) ~ v9 - v3,
D(cytc1_ox) ~ v33 - v9,
vHresC3 ~ v3,
vROSC3 ~ v10,
]
return System(eqs, t; name)
end
# Semireverse bc1 complex model adapted from Gauthier, 2013
function c3_semireverse(;
dpsi=150mV,
MT_PROT=1,
O2=6μM,
sox_m=0.001μM,
h_i=exp10(-7) * Molar,
h_m=exp10(-7.6) * Molar,
ANTIMYCIN_BLOCK=0,
MYXOTHIAZOLE_BLOCK=0,
UQ = 3600μM,
UQH2 = 400μM,
cytc_ox = 208μM,
cytc_rd = 325μM - cytc_ox,
name = :c3_semireverse)
@parameters begin
rhoC3 = 325μM ## Complex III activity
Q_T = 4mM ## Total CoQ pool
EmQ_C3 = +60mV ## Ubiquinone redox potential at complex III Qo
EmSQp_QH2p = +290mV
EmQp_SQp = -170mV
EmQn_SQn = +50mV
EmSQn_QH2n = +150mV
EmbL_bHo = -40mV
EmbL_bHr = EmbL_bHo - 60mV
EmbH_bLo = +20mV
EmbH_bLr = EmbH_bLo - 60mV
EmFeS = +280mV
Emcytc1 = +245mV
EmO2 = -160mV
Emcytc = +255mV
# QH2 + FeS + bL = Q + FeS- + bL- + 2Ho+
K04_C3 = 50.67Hz / mM
KEQ4_OX_C3 = exp(iVT * (EmFeS + EmbL_bHo - 2EmQ_C3))
KEQ4_RD_C3 = exp(iVT * (EmFeS + EmbL_bHr - 2EmQ_C3))
# bL- + bH = bL + bH-
K06_C3 = 166.67Hz
KEQ6_C3 = exp(iVT * (EmbH_bLo - EmbL_bHo)) ## +70mV
# bH- + Q = bH + Q-
K07_OX_C3 = 13.33Hz / mM
K07_RD_C3 = 1.67Hz / mM
KEQ7_OX_C3 = exp(iVT * (EmQn_SQn - EmbH_bLo)) ## +30mV
KEQ7_RD_C3 = exp(iVT * (EmQn_SQn - EmbH_bLr)) ## +90mV
# bH- + Q- + 2H+ = bH + QH2
K08_OX_C3 = 83.33Hz / mM
K08_RD_C3 = 8.33Hz / mM
KEQ8_OX_C3 = exp(iVT * (EmSQn_QH2n - EmbH_bLo)) ## +130mV
KEQ8_RD_C3 = exp(iVT * (EmSQn_QH2n - EmbH_bLr)) ## +190mV
# FeS- + c1_3+ = FeS + c1_2+
K09_C3 = 832.48Hz / mM
KEQ9_C3 = exp(iVT * (Emcytc1 - EmFeS)) ## -40mV
# bL- + Q = bL + Q-
K010_C3 = 28.33Hz / mM
KEQ10_OX_C3 = exp(iVT * (EmQp_SQp - EmbL_bHo)) ## -130mV
KEQ10_RD_C3 = exp(iVT * (EmQp_SQp - EmbL_bHr)) ## -70mV
# Q- + O2 = Q + O2-
K011_C3 = 100Hz / mM
# c1_2+ + c_3+ = c1_3+ + c_2+
K33_C3 = 2469.13Hz / mM
KEQ33_C3 = exp(iVT * (Emcytc - Emcytc1)) ## +20mV
end
# complex III inhibition by DOX and antimycin
C3_INHIB = 1 - ANTIMYCIN_BLOCK
C3_CONC = rhoC3 * MT_PROT
@variables begin
Q_n(t)
QH2_n(t)
QH2_p(t)
Q_p(t)
SQn(t) = 0
SQp(t) = 0
fes_ox(t) = C3_CONC
fes_rd(t) ## Conserved
cytc1_ox(t) = C3_CONC
cytc1_rd(t) ## Conserved
blo_bho(t) = C3_CONC
blr_bho(t) = 0
blo_bhr(t) = 0
blr_bhr(t) ## Conserved
fracbLrd(t)
fracbHrd(t)
vROSC3(t)
vHresC3(t)
end
# Split of electrical potentials
δ₁_C3 = 0.5
δ₂_C3 = 0.5
δ₃_C3 = 0.5
# Split of the electrical distance across the IMM
α_C3 = 0.25
β_C3 = 0.5
γ_C3 = 0.25
# pH factors
fHi = h_i * inv(1E-7Molar)
fHm = h_m * inv(1E-7Molar)
# QH2 + FeS + bL = Q + FeS- + bL- + 2Ho+
# Lumped v3 and v4
FeS = fes_ox / C3_CONC * (1 - MYXOTHIAZOLE_BLOCK)
FeSm = fes_rd / C3_CONC * (1 - MYXOTHIAZOLE_BLOCK)
el4 = exp(-iVT * α_C3 * δ₁_C3 * dpsi)
er4 = exp(iVT * α_C3 * (1 - δ₁_C3) * dpsi)
k4ox = K04_C3 * KEQ4_OX_C3 * el4
k4rd = K04_C3 * KEQ4_RD_C3 * el4
km4 = K04_C3 * er4 * fHi^2
v4ox = k4ox * QH2_p * FeS * blo_bho - km4 * Q_p * FeSm * blr_bho
v4rd = k4rd * QH2_p * FeS * blo_bhr - km4 * Q_p * FeSm * blr_bhr
# bL- + bH = bL + bH-
el6 = exp(-iVT * β_C3 * δ₂_C3 * dpsi)
er6 = exp(iVT * β_C3 * (1 - δ₂_C3) * dpsi)
k6 = K06_C3 * KEQ6_C3 * el6
km6 = K06_C3 * er6
v6 = k6 * blr_bho - km6 * blo_bhr
# bH- + Q = bH + Q-
Qi_avail = (C3_CONC - SQn) / C3_CONC * C3_INHIB
el7 = exp(-iVT * γ_C3 * δ₃_C3 * dpsi)
er7 = exp(iVT * γ_C3 * (1 - δ₃_C3) * dpsi)
qn = Q_n * Qi_avail
qh2n = QH2_n * Qi_avail
k7ox = K07_OX_C3 * KEQ7_OX_C3 * el7
k7rd = K07_RD_C3 * KEQ7_RD_C3 * el7
km7ox = K07_OX_C3 * er7
km7rd = K07_RD_C3 * er7
k8ox = K08_OX_C3 * KEQ8_OX_C3 * el7 * fHm^2
k8rd = K08_RD_C3 * KEQ8_RD_C3 * el7 * fHm^2
km8ox = K08_OX_C3 * er7
km8rd = K08_RD_C3 * er7
v7ox = k7ox * blo_bhr * qn - km7ox * blo_bho * SQn
v7rd = k7rd * blr_bhr * qn - km7rd * blr_bho * SQn
v8ox = k8ox * blo_bhr * SQn - km8ox * blo_bho * qh2n
v8rd = k8rd * blr_bhr * SQn - km8rd * blr_bho * qh2n
# FeS- + c1_3+ = FeS + c1_2+
v9 = K09_C3 * (KEQ9_C3 * fes_rd * cytc1_ox - fes_ox * cytc1_rd)
# cytc1_2+ + cytc_3+ = cytc1_3+ + cytc_2+
v33 = K33_C3 * (KEQ33_C3 * cytc1_rd * cytc_ox - cytc1_ox * cytc_rd)
# bL- + Qp = bL + Qp-
k10ox = K010_C3 * KEQ10_OX_C3 * er4
k10rd = K010_C3 * KEQ10_RD_C3 * er4
km10 = K010_C3 * el4
v10ox = k10ox * Q_p * blr_bho - km10 * SQp * blo_bho
v10rd = k10rd * Q_p * blr_bhr - km10 * SQp * blo_bhr
# Qp- + O2 = Qp + O2-
v11 = K011_C3 * SQp * O2
eqs = [
C3_CONC ~ blo_bho + blr_bho + blo_bhr + blr_bhr,
C3_CONC ~ fes_ox + fes_rd,
C3_CONC ~ cytc1_ox + cytc1_rd,
Q_n ~ 0.5 * UQ,
Q_p ~ 0.5 * UQ,
QH2_n ~ 0.5 * UQH2,
QH2_p ~ 0.5 * UQH2,
fracbLrd ~ (blr_bho + blr_bhr) / C3_CONC,
fracbHrd ~ (blo_bhr + blr_bhr) / C3_CONC,
# D(UQH2) ~ dQH2n + dQH2p,
D(SQn) ~ v7ox + v7rd - v8ox - v8rd,
D(SQp) ~ v10ox + v10rd - v11,
D(blo_bho) ~ v7ox + v8ox - v4ox + v10ox,
D(blr_bho) ~ v4ox + v7rd + v8rd - v6 - v10ox,
D(blo_bhr) ~ v6 - v4rd - v7ox - v8ox + v10rd,
# D(blr_bhr) = v4rd - v7rd - v8rd - v10rd
D(fes_ox) ~ v9 - v4ox - v4rd,
D(cytc1_ox) ~ v33 - v9,
vHresC3 ~ v4ox + v4rd,
vROSC3 ~ v11,
]
return System(eqs, t; name)
end
# Complex III repulsion model
# Reduced heme bL blocks QH2 oxidation at Qo site due to repulsion of bL- and Q-
# SQp is unstable (Em(Q/SQ) = -300mV)
function c3_repulsion(;
dpsi=150mV,
MT_PROT=1,
O2=6μM,
sox_m=0.001μM,
h_i=exp10(-7) * Molar,
h_m=exp10(-7.6) * Molar,
ANTIMYCIN_BLOCK=0,
MYXOTHIAZOLE_BLOCK=0,
UQ = 3600μM,
UQH2 = 400μM,
cytc_ox = 208μM,
cytc_rd = 325μM - cytc_ox,
name = :c3_repulse
)
@parameters begin
rhoC3 = 325μM ## Complex III activity
Q_T = 4mM ## Total CoQ pool
EmQp = +60mV
EmSQp_QH2p = +400mV
EmQp_SQp = 2EmQp - EmSQp_QH2p
EmQn_SQn = +50mV
EmSQn_QH2n = +150mV
EmbL_bHo = -40mV
EmbL_bHr = EmbL_bHo - 60mV
EmbH_bLo = +20mV
EmbH_bLr = EmbH_bLo - 60mV
EmFeS = +280mV
Emcytc1 = +245mV
EmO2 = -160mV
Emcytc = +265mV
K03_C3 = 2E5Hz / mM ## 1666.63Hz / mM
KEQ3_C3 = exp(iVT * (EmFeS - EmSQp_QH2p)) ## ~ 0.01
K04_C3 = 50.67Hz / mM
KEQ4_OX_C3 = exp(iVT * (EmbL_bHo - EmQp_SQp))
KEQ4_RD_C3 = exp(iVT * (EmbL_bHr - EmQp_SQp))
KD_Q = 22000Hz
K06_C3 = 10000Hz ## from 166.67Hz
KEQ6_C3 = exp(iVT * (EmbH_bLo - EmbL_bHo))
K07_OX_C3 = 13.33Hz / mM
K07_RD_C3 = 1.67Hz / mM
KEQ7_OX_C3 = exp(iVT * (EmQn_SQn - EmbH_bLo))
KEQ7_RD_C3 = exp(iVT * (EmQn_SQn - EmbH_bLr))
K08_OX_C3 = 83.33Hz / mM
K08_RD_C3 = 8.33Hz / mM
KEQ8_OX_C3 = exp(iVT * (EmSQn_QH2n - EmbH_bLo))
KEQ8_RD_C3 = exp(iVT * (EmSQn_QH2n - EmbH_bLr))
K09_C3 = 832.48Hz / mM
KEQ9_C3 = exp(iVT * (Emcytc1 - EmFeS))
K010_C3 = 28.33Hz / mM
KEQ10_C3 = exp(iVT * (EmO2 - EmQp_SQp))
K33_C3 = 2469.13Hz / mM
KEQ33_C3 = exp(iVT * (Emcytc - Emcytc1))
end
# complex III inhibition by DOX and antimycin
C3_CONC = rhoC3 * MT_PROT
@variables begin
Q_n(t)
QH2_n(t)
QH2_p(t)
Q_p(t)
SQp(t) = 0
SQn(t) = 0
fes_ox(t) = C3_CONC
fes_rd(t) ## Conserved
cytc1_ox(t) = C3_CONC
cytc1_rd(t) ## Conserved
blo_bho(t) = C3_CONC
blo_bhr(t) = 0
blr_bho(t) = 0
blr_bhr(t) ## Conserved
fracbLrd(t)
fracbHrd(t)
vROSC3(t)
vHresC3(t)
end
# Split of electrical potentials
δ₁_C3 = 0.5
δ₂_C3 = 0.5
δ₃_C3 = 0.5
# Split of the electrical distance across the IMM
α_C3 = 0.25
β_C3 = 0.5
γ_C3 = 0.25
fHi = h_i * inv(1E-7Molar)
fHm = h_m * inv(1E-7Molar)
# QH2 + FeS = Q- + FeS- + H+
Qo_avail = (C3_CONC - SQp) / C3_CONC * (1 - fracbLrd) * (1 - MYXOTHIAZOLE_BLOCK)
v3 = K03_C3 * (KEQ3_C3 * Qo_avail * fes_ox * QH2_p - fes_rd * SQp * fHi^2)
# Q- + bL = Qp + bL-
el4 = exp(-iVT * α_C3 * δ₁_C3 * dpsi)
er4 = exp(iVT * α_C3 * (1 - δ₁_C3) * dpsi)
v4ox = K04_C3 * (KEQ4_OX_C3 * SQp * el4 * blo_bho - Q_p * er4 * blr_bho)
v4rd = K04_C3 * (KEQ4_RD_C3 * SQp * el4 * blo_bhr - Q_p * er4 * blr_bhr)
# v5 = Q diffusion (p-side -> n-side)
v5 = KD_Q * (Q_p - Q_n)
# v6 = bL to bH
el6 = exp(-iVT * β_C3 * δ₂_C3 * dpsi)
er6 = exp(iVT * β_C3 * (1 - δ₂_C3) * dpsi)
v6 = K06_C3 * (KEQ6_C3 * blr_bho * el6 - blo_bhr * er6)
# v7 = bH to Qn; v8: bH to SQn
Qi_avail = (C3_CONC - SQn) / C3_CONC * (1 - ANTIMYCIN_BLOCK)
el7 = exp(-iVT * γ_C3 * δ₃_C3 * dpsi)
er7 = exp(iVT * γ_C3 * (1 - δ₃_C3) * dpsi)
qn = Q_n * Qi_avail
qh2n = QH2_n * Qi_avail
v7ox = K07_OX_C3 * (KEQ7_OX_C3 * blo_bhr * qn * el7 - blo_bho * SQn * er7)
v7rd = K07_RD_C3 * (KEQ7_RD_C3 * blr_bhr * qn * el7 - blr_bho * SQn * er7)
v8ox = K08_OX_C3 * (KEQ8_OX_C3 * blo_bhr * SQn * fHm^2 * el7 - blo_bho * qh2n * er7)
v8rd = K08_RD_C3 * (KEQ8_RD_C3 * blr_bhr * SQn * fHm^2 * el7 - blr_bho * qh2n * er7)
# v9 = fes -> cytc1
v9 = K09_C3 * (KEQ9_C3 * fes_rd * cytc1_ox - fes_ox * cytc1_rd)
# SQp + O2 -> O2- + Q
v10 = K010_C3 * (KEQ10_C3 * O2 * SQp - sox_m * Q_p)
# cytc1_2+ + cytc_3+ = cytc1_3+ + cytc_2+
v33 = K33_C3 * (KEQ33_C3 * cytc1_rd * cytc_ox - cytc1_ox * cytc_rd)
eqs = [
C3_CONC ~ blo_bho + blr_bho + blo_bhr + blr_bhr,
C3_CONC ~ fes_ox + fes_rd,
C3_CONC ~ cytc1_ox + cytc1_rd,
Q_n ~ 0.5 * UQ,
Q_p ~ 0.5 * UQ,
QH2_n ~ 0.5 * UQH2,
QH2_p ~ 0.5 * UQH2,
fracbLrd ~ (blr_bho + blr_bhr) / C3_CONC,
fracbHrd ~ (blo_bhr + blr_bhr) / C3_CONC,
# D(UQH2) ~ dQH2n + dQH2p,
D(SQn) ~ v7ox + v7rd - v8ox - v8rd,
D(SQp) ~ v3 - v10 - v4ox - v4rd,
D(blo_bho) ~ v7ox + v8ox - v4ox,
D(blr_bho) ~ v4ox + v7rd + v8rd - v6,
D(blo_bhr) ~ v6 - v4rd - v7ox - v8ox,
# D(blr_bhr) = v4rd - v7rd - v8rd
D(fes_ox) ~ v9 - v3,
D(cytc1_ox) ~ v33 - v9,
vHresC3 ~ v6,
vROSC3 ~ v10,
]
return System(eqs, t; name)
end
c3_repulsion (generic function with 1 method)
@parameters begin
UQ = 3600μM
UQH2 = 400μM
dpsi = 150mV
cytc_ox = 208μM
cytc_rd = 325μM - cytc_ox
sox_m = 0.01μM
end
\[\begin{split} \begin{equation}
\left[
\begin{array}{c}
\mathtt{UQ} \\
\mathtt{UQH2} \\
\mathtt{dpsi} \\
\mathtt{cytc\_ox} \\
\mathtt{cytc\_rd} \\
\mathtt{sox\_m} \\
\end{array}
\right]
\end{equation}
\end{split}\]
gsys = c3_gauthier(;dpsi, cytc_ox, cytc_rd, UQ, UQH2, sox_m) |> mtkcompile
nsys = c3_repulsion(;dpsi, cytc_ox, cytc_rd, UQ, UQH2, sox_m) |> mtkcompile
rsys = c3_semireverse(;dpsi, cytc_ox, cytc_rd, UQ, UQH2, sox_m) |> mtkcompile
┌ Warning: Did not converge after `maxiters = 0` substitutions. Either there is a cycle in the rules or `maxiters` needs to be higher.
└ @ Symbolics ~/.julia/packages/Symbolics/sc64L/src/variable.jl:587
┌ Warning: Did not converge after `maxiters = 0` substitutions. Either there is a cycle in the rules or `maxiters` needs to be higher.
└ @ Symbolics ~/.julia/packages/Symbolics/sc64L/src/variable.jl:587
┌ Warning: Did not converge after `maxiters = 0` substitutions. Either there is a cycle in the rules or `maxiters` needs to be higher.
└ @ Symbolics ~/.julia/packages/Symbolics/sc64L/src/variable.jl:587
┌ Warning: Did not converge after `maxiters = 0` substitutions. Either there is a cycle in the rules or `maxiters` needs to be higher.
└ @ Symbolics ~/.julia/packages/Symbolics/sc64L/src/variable.jl:587
┌ Warning: Did not converge after `maxiters = 0` substitutions. Either there is a cycle in the rules or `maxiters` needs to be higher.
└ @ Symbolics ~/.julia/packages/Symbolics/sc64L/src/variable.jl:587
┌ Warning: Did not converge after `maxiters = 0` substitutions. Either there is a cycle in the rules or `maxiters` needs to be higher.
└ @ Symbolics ~/.julia/packages/Symbolics/sc64L/src/variable.jl:587
┌ Warning: Did not converge after `maxiters = 0` substitutions. Either there is a cycle in the rules or `maxiters` needs to be higher.
└ @ Symbolics ~/.julia/packages/Symbolics/sc64L/src/variable.jl:587
┌ Warning: Did not converge after `maxiters = 0` substitutions. Either there is a cycle in the rules or `maxiters` needs to be higher.
└ @ Symbolics ~/.julia/packages/Symbolics/sc64L/src/variable.jl:587
┌ Warning: Did not converge after `maxiters = 0` substitutions. Either there is a cycle in the rules or `maxiters` needs to be higher.
└ @ Symbolics ~/.julia/packages/Symbolics/sc64L/src/variable.jl:587
┌ Warning: Did not converge after `maxiters = 0` substitutions. Either there is a cycle in the rules or `maxiters` needs to be higher.
└ @ Symbolics ~/.julia/packages/Symbolics/sc64L/src/variable.jl:587
┌ Warning: Did not converge after `maxiters = 0` substitutions. Either there is a cycle in the rules or `maxiters` needs to be higher.
└ @ Symbolics ~/.julia/packages/Symbolics/sc64L/src/variable.jl:587
┌ Warning: Did not converge after `maxiters = 0` substitutions. Either there is a cycle in the rules or `maxiters` needs to be higher.
└ @ Symbolics ~/.julia/packages/Symbolics/sc64L/src/variable.jl:587
┌ Warning: Did not converge after `maxiters = 0` substitutions. Either there is a cycle in the rules or `maxiters` needs to be higher.
└ @ Symbolics ~/.julia/packages/Symbolics/sc64L/src/variable.jl:587
┌ Warning: Did not converge after `maxiters = 0` substitutions. Either there is a cycle in the rules or `maxiters` needs to be higher.
└ @ Symbolics ~/.julia/packages/Symbolics/sc64L/src/variable.jl:587
┌ Warning: Did not converge after `maxiters = 0` substitutions. Either there is a cycle in the rules or `maxiters` needs to be higher.
└ @ Symbolics ~/.julia/packages/Symbolics/sc64L/src/variable.jl:587
\[\begin{split} \begin{align}
\frac{\mathrm{d} \mathtt{cytc1\_ox}\left( t \right)}{\mathrm{d}t} &= - \mathtt{K09\_C3} \left( - \mathtt{fes\_ox}\left( t \right) \mathtt{cytc1\_rd}\left( t \right) + \mathtt{KEQ9\_C3} \mathtt{cytc1\_ox}\left( t \right) \mathtt{fes\_rd}\left( t \right) \right) + \mathtt{K33\_C3} \left( - \mathtt{cytc\_rd} \mathtt{cytc1\_ox}\left( t \right) + \mathtt{KEQ33\_C3} \mathtt{cytc\_ox} \mathtt{cytc1\_rd}\left( t \right) \right) \\
\frac{\mathrm{d} \mathtt{fes\_ox}\left( t \right)}{\mathrm{d}t} &= \frac{ - \mathtt{K04\_C3} \mathtt{KEQ4\_OX\_C3} \mathtt{QH2\_p}\left( t \right) \mathtt{fes\_ox}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}} \mathtt{blo\_bho}\left( t \right)}{\mathtt{rhoC3}} + \frac{1 \mathtt{K04\_C3} \mathtt{Q\_p}\left( t \right) \mathtt{blr\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}} \mathtt{fes\_rd}\left( t \right)}{\mathtt{rhoC3}} + \frac{ - \mathtt{K04\_C3} \mathtt{KEQ4\_RD\_C3} \mathtt{QH2\_p}\left( t \right) \mathtt{fes\_ox}\left( t \right) \mathtt{blo\_bhr}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}}}{\mathtt{rhoC3}} + \frac{1 \mathtt{K04\_C3} \mathtt{blr\_bhr}\left( t \right) \mathtt{Q\_p}\left( t \right) e^{0.0046795 \mathtt{dpsi}} \mathtt{fes\_rd}\left( t \right)}{\mathtt{rhoC3}} + \mathtt{K09\_C3} \left( - \mathtt{fes\_ox}\left( t \right) \mathtt{cytc1\_rd}\left( t \right) + \mathtt{KEQ9\_C3} \mathtt{cytc1\_ox}\left( t \right) \mathtt{fes\_rd}\left( t \right) \right) \\
\frac{\mathrm{d} \mathtt{blo\_bhr}\left( t \right)}{\mathrm{d}t} &= \frac{\mathtt{K08\_OX\_C3} \left( \mathtt{rhoC3} - \mathtt{SQn}\left( t \right) \right) \mathtt{QH2\_n}\left( t \right) \mathtt{blo\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}}}{\mathtt{rhoC3}} + \frac{ - \mathtt{K04\_C3} \mathtt{KEQ4\_RD\_C3} \mathtt{QH2\_p}\left( t \right) \mathtt{fes\_ox}\left( t \right) \mathtt{blo\_bhr}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}}}{\mathtt{rhoC3}} + \frac{1 \mathtt{K04\_C3} \mathtt{blr\_bhr}\left( t \right) \mathtt{Q\_p}\left( t \right) e^{0.0046795 \mathtt{dpsi}} \mathtt{fes\_rd}\left( t \right)}{\mathtt{rhoC3}} + \frac{ - \mathtt{K07\_OX\_C3} \mathtt{KEQ7\_OX\_C3} \left( \mathtt{rhoC3} - \mathtt{SQn}\left( t \right) \right) \mathtt{blo\_bhr}\left( t \right) \mathtt{Q\_n}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}}}{\mathtt{rhoC3}} - \mathtt{K06\_C3} e^{0.009359 \mathtt{dpsi}} \mathtt{blo\_bhr}\left( t \right) - \mathtt{K010\_C3} \mathtt{blo\_bhr}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}} \mathtt{SQp}\left( t \right) + \mathtt{K06\_C3} \mathtt{KEQ6\_C3} e^{ - 0.009359 \mathtt{dpsi}} \mathtt{blr\_bho}\left( t \right) + \mathtt{K07\_OX\_C3} \mathtt{SQn}\left( t \right) \mathtt{blo\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}} + \mathtt{K010\_C3} \mathtt{KEQ10\_RD\_C3} \mathtt{blr\_bhr}\left( t \right) \mathtt{Q\_p}\left( t \right) e^{0.0046795 \mathtt{dpsi}} - 0.063096 \mathtt{K08\_OX\_C3} \mathtt{KEQ8\_OX\_C3} \mathtt{blo\_bhr}\left( t \right) \mathtt{SQn}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}} \\
\frac{\mathrm{d} \mathtt{blr\_bho}\left( t \right)}{\mathrm{d}t} &= \frac{\mathtt{K07\_RD\_C3} \mathtt{KEQ7\_RD\_C3} \left( \mathtt{rhoC3} - \mathtt{SQn}\left( t \right) \right) \mathtt{blr\_bhr}\left( t \right) \mathtt{Q\_n}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}}}{\mathtt{rhoC3}} + \frac{\mathtt{K04\_C3} \mathtt{KEQ4\_OX\_C3} \mathtt{QH2\_p}\left( t \right) \mathtt{fes\_ox}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}} \mathtt{blo\_bho}\left( t \right)}{\mathtt{rhoC3}} + \frac{ - 1 \mathtt{K04\_C3} \mathtt{Q\_p}\left( t \right) \mathtt{blr\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}} \mathtt{fes\_rd}\left( t \right)}{\mathtt{rhoC3}} + \frac{ - \mathtt{K08\_RD\_C3} \left( \mathtt{rhoC3} - \mathtt{SQn}\left( t \right) \right) \mathtt{QH2\_n}\left( t \right) \mathtt{blr\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}}}{\mathtt{rhoC3}} + \mathtt{K06\_C3} e^{0.009359 \mathtt{dpsi}} \mathtt{blo\_bhr}\left( t \right) + \mathtt{K010\_C3} e^{ - 0.0046795 \mathtt{dpsi}} \mathtt{blo\_bho}\left( t \right) \mathtt{SQp}\left( t \right) - \mathtt{K06\_C3} \mathtt{KEQ6\_C3} e^{ - 0.009359 \mathtt{dpsi}} \mathtt{blr\_bho}\left( t \right) - \mathtt{K07\_RD\_C3} \mathtt{SQn}\left( t \right) \mathtt{blr\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}} - \mathtt{K010\_C3} \mathtt{KEQ10\_OX\_C3} \mathtt{Q\_p}\left( t \right) \mathtt{blr\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}} + 0.063096 \mathtt{K08\_RD\_C3} \mathtt{KEQ8\_RD\_C3} \mathtt{blr\_bhr}\left( t \right) \mathtt{SQn}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}} \\
\frac{\mathrm{d} \mathtt{blo\_bho}\left( t \right)}{\mathrm{d}t} &= \frac{ - \mathtt{K04\_C3} \mathtt{KEQ4\_OX\_C3} \mathtt{QH2\_p}\left( t \right) \mathtt{fes\_ox}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}} \mathtt{blo\_bho}\left( t \right)}{\mathtt{rhoC3}} + \frac{1 \mathtt{K04\_C3} \mathtt{Q\_p}\left( t \right) \mathtt{blr\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}} \mathtt{fes\_rd}\left( t \right)}{\mathtt{rhoC3}} + \frac{ - \mathtt{K08\_OX\_C3} \left( \mathtt{rhoC3} - \mathtt{SQn}\left( t \right) \right) \mathtt{QH2\_n}\left( t \right) \mathtt{blo\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}}}{\mathtt{rhoC3}} + \frac{\mathtt{K07\_OX\_C3} \mathtt{KEQ7\_OX\_C3} \left( \mathtt{rhoC3} - \mathtt{SQn}\left( t \right) \right) \mathtt{blo\_bhr}\left( t \right) \mathtt{Q\_n}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}}}{\mathtt{rhoC3}} - \mathtt{K010\_C3} e^{ - 0.0046795 \mathtt{dpsi}} \mathtt{blo\_bho}\left( t \right) \mathtt{SQp}\left( t \right) - \mathtt{K07\_OX\_C3} \mathtt{SQn}\left( t \right) \mathtt{blo\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}} + \mathtt{K010\_C3} \mathtt{KEQ10\_OX\_C3} \mathtt{Q\_p}\left( t \right) \mathtt{blr\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}} + 0.063096 \mathtt{K08\_OX\_C3} \mathtt{KEQ8\_OX\_C3} \mathtt{blo\_bhr}\left( t \right) \mathtt{SQn}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}} \\
\frac{\mathrm{d} \mathtt{SQp}\left( t \right)}{\mathrm{d}t} &= - 6 \mathtt{K011\_C3} \mathtt{SQp}\left( t \right) - \mathtt{K010\_C3} \mathtt{blo\_bhr}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}} \mathtt{SQp}\left( t \right) - \mathtt{K010\_C3} e^{ - 0.0046795 \mathtt{dpsi}} \mathtt{blo\_bho}\left( t \right) \mathtt{SQp}\left( t \right) + \mathtt{K010\_C3} \mathtt{KEQ10\_OX\_C3} \mathtt{Q\_p}\left( t \right) \mathtt{blr\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}} + \mathtt{K010\_C3} \mathtt{KEQ10\_RD\_C3} \mathtt{blr\_bhr}\left( t \right) \mathtt{Q\_p}\left( t \right) e^{0.0046795 \mathtt{dpsi}} \\
\frac{\mathrm{d} \mathtt{SQn}\left( t \right)}{\mathrm{d}t} &= \frac{\mathtt{K07\_RD\_C3} \mathtt{KEQ7\_RD\_C3} \left( \mathtt{rhoC3} - \mathtt{SQn}\left( t \right) \right) \mathtt{blr\_bhr}\left( t \right) \mathtt{Q\_n}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}}}{\mathtt{rhoC3}} + \frac{\mathtt{K07\_OX\_C3} \mathtt{KEQ7\_OX\_C3} \left( \mathtt{rhoC3} - \mathtt{SQn}\left( t \right) \right) \mathtt{blo\_bhr}\left( t \right) \mathtt{Q\_n}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}}}{\mathtt{rhoC3}} + \frac{\mathtt{K08\_OX\_C3} \left( \mathtt{rhoC3} - \mathtt{SQn}\left( t \right) \right) \mathtt{QH2\_n}\left( t \right) \mathtt{blo\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}}}{\mathtt{rhoC3}} + \frac{\mathtt{K08\_RD\_C3} \left( \mathtt{rhoC3} - \mathtt{SQn}\left( t \right) \right) \mathtt{QH2\_n}\left( t \right) \mathtt{blr\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}}}{\mathtt{rhoC3}} - \mathtt{K07\_OX\_C3} \mathtt{SQn}\left( t \right) \mathtt{blo\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}} - \mathtt{K07\_RD\_C3} \mathtt{SQn}\left( t \right) \mathtt{blr\_bho}\left( t \right) e^{0.0046795 \mathtt{dpsi}} - 0.063096 \mathtt{K08\_OX\_C3} \mathtt{KEQ8\_OX\_C3} \mathtt{blo\_bhr}\left( t \right) \mathtt{SQn}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}} - 0.063096 \mathtt{K08\_RD\_C3} \mathtt{KEQ8\_RD\_C3} \mathtt{blr\_bhr}\left( t \right) \mathtt{SQn}\left( t \right) e^{ - 0.0046795 \mathtt{dpsi}}
\end{align}
\end{split}\]
prob_g = SteadyStateProblem(gsys, [])
prob_n = SteadyStateProblem(nsys, [nsys.EmSQp_QH2p => +400mV, nsys.EmQp => 60mV, nsys.K010_C3 => 33Hz / mM])
prob_r = SteadyStateProblem(rsys, [rsys.K010_C3 => 4Hz / mM, rsys.K011_C3 => 100Hz / mM, rsys.K04_C3 => 50Hz / mM])
alg = DynamicSS(Rodas5P())
ealg = EnsembleThreads()
extract(sim, k) = map(s -> s[k], sim)
extract (generic function with 1 method)
Varying MMP#
dpsirange = 100mV:1mV:200mV
alter_dpsi = (prob, i, repeat) -> begin
prob.ps[dpsi] = dpsirange[i]
prob
end
eprob_g = EnsembleProblem(prob_g; prob_func=alter_dpsi)
eprob_n = EnsembleProblem(prob_n; prob_func=alter_dpsi)
eprob_r = EnsembleProblem(prob_r; prob_func=alter_dpsi)
@time sim_g = solve(eprob_g, alg, ealg; trajectories=length(dpsirange), abstol=1e-8, reltol=1e-8)
@time sim_n = solve(eprob_n, alg, ealg; trajectories=length(dpsirange), abstol=1e-8, reltol=1e-8)
@time sim_r = solve(eprob_r, alg, ealg; trajectories=length(dpsirange), abstol=1e-8, reltol=1e-8)
xs = dpsirange

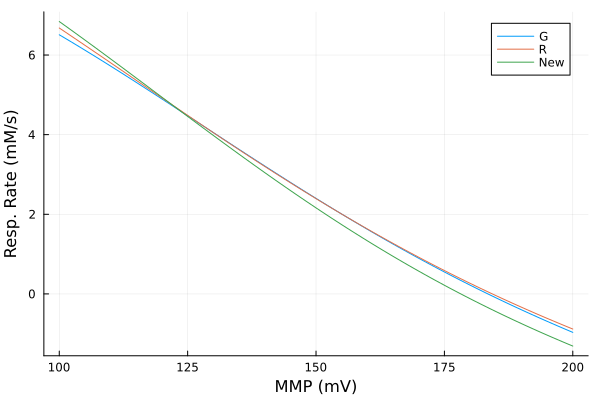

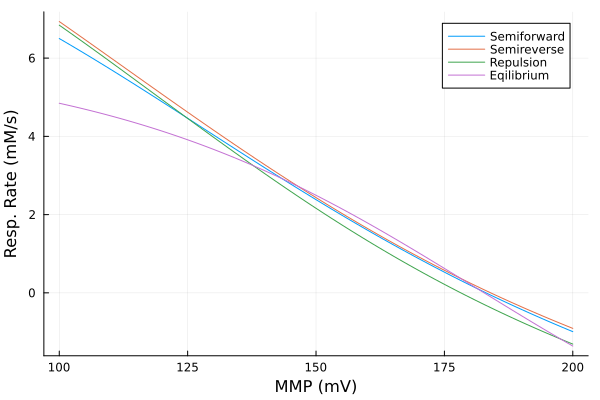

ys = [extract(sim_g, gsys.vHresC3) extract(sim_r, rsys.vHresC3) extract(sim_n, nsys.vHresC3)]
plot(xs, ys, xlabel="MMP (mV)", ylabel="Resp. Rate (mM/s)", label=["G" "R" "New"])
4.856241 seconds (28.76 M allocations: 1.486 GiB, 7.56% gc time, 171.78% compilation time)
2.912938 seconds (15.74 M allocations: 867.859 MiB, 19.30% gc time, 169.31% compilation time)
2.871038 seconds (15.91 M allocations: 841.798 MiB, 9.81% gc time, 170.05% compilation time)

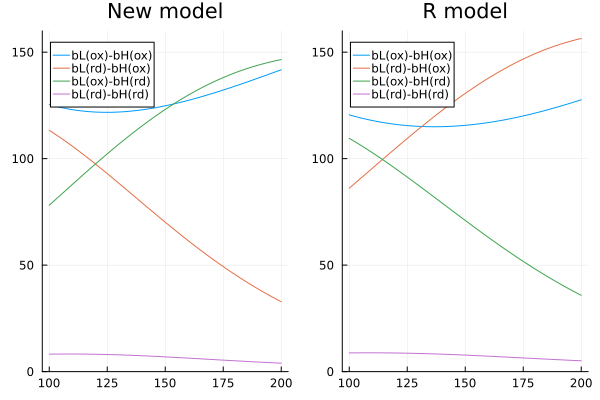

plot(xs, extract(sim_n, nsys.blo_bho), label="bL(ox)-bH(ox)", title="New model")
plot!(xs, extract(sim_n, nsys.blo_bhr), label="bL(rd)-bH(ox)")
plot!(xs, extract(sim_n, nsys.blr_bho), label="bL(ox)-bH(rd)")
pl1 = plot!(xs, extract(sim_n, nsys.blr_bhr), label="bL(rd)-bH(rd)", ylim=(0, 160))
plot(xs, extract(sim_r, rsys.blo_bho), label="bL(ox)-bH(ox)", title = "R model")
plot!(xs, extract(sim_r, rsys.blr_bho), label="bL(rd)-bH(ox)")
plot!(xs, extract(sim_r, rsys.blo_bhr), label="bL(ox)-bH(rd)")
pl2 = plot!(xs, extract(sim_r, rsys.blr_bhr), label="bL(rd)-bH(rd)", ylim=(0, 160))
plot(pl1, pl2)

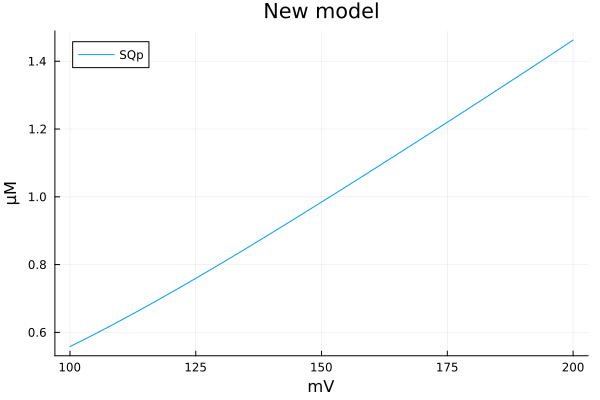

plot(dpsirange, extract(sim_n, nsys.SQp), label="SQp", title="New model", xlabel="mV", ylabel="μM")

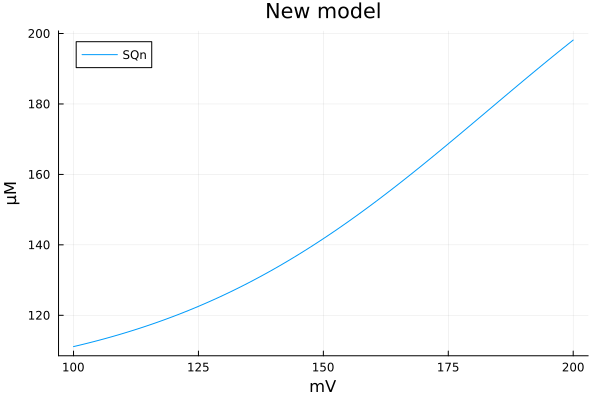

plot(dpsirange, extract(sim_n, nsys.SQn), label="SQn", title="New model", xlabel="mV", ylabel="μM")

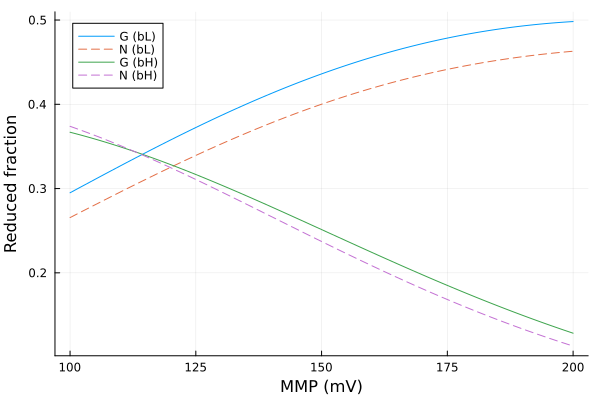

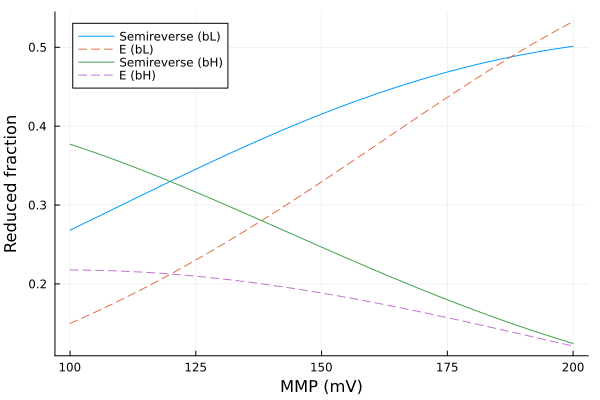

ys = [extract(sim_g, gsys.fracbLrd) extract(sim_n, nsys.fracbLrd) extract(sim_g, gsys.fracbHrd) extract(sim_n, nsys.fracbHrd)]
plot(xs, ys, xlabel="MMP (mV)", ylabel="Reduced fraction", label=["G (bL)" "N (bL)" "G (bH)" "N (bH)"], line=[:solid :dash :solid :dash])
ROS generation rate: 0.005 ~ 0.020 mM/s

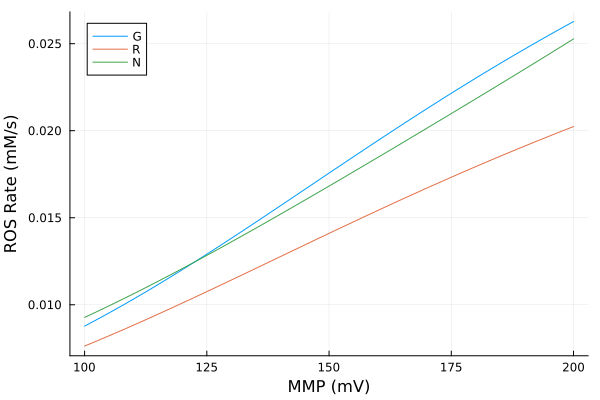

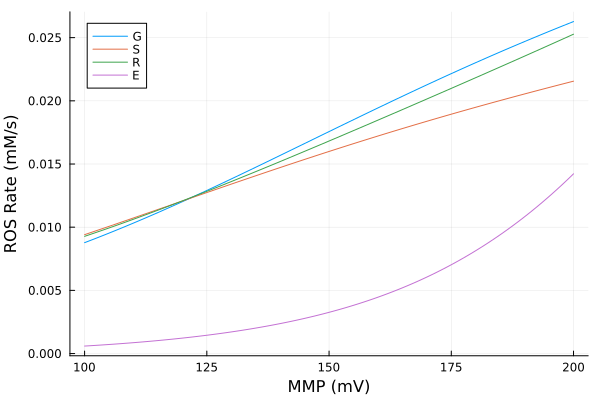

ys = [extract(sim_g, gsys.vROSC3) extract(sim_r, rsys.vROSC3) extract(sim_n, nsys.vROSC3)]
plot(xs, ys, xlabel="MMP (mV)", ylabel="ROS Rate (mM/s)", label=["G" "R" "N"])
Varying UQH2#
qh2range = 10μM:10μM:3990μM
alter_qh2 = (prob, i, repeat) -> begin
prob.ps[UQH2] = qh2range[i]
prob.ps[UQ] = 4000μM - prob.ps[UQH2]
prob
end
eprob_g = EnsembleProblem(prob_g; prob_func=alter_qh2)
eprob_n = EnsembleProblem(prob_n; prob_func=alter_qh2)
eprob_r = EnsembleProblem(prob_r; prob_func=alter_qh2)
@time sim_g = solve(eprob_g, alg, ealg; trajectories=length(qh2range), abstol=1e-8, reltol=1e-8)
@time sim_n = solve(eprob_n, alg, ealg; trajectories=length(qh2range), abstol=1e-8, reltol=1e-8)
@time sim_r = solve(eprob_r, alg, ealg; trajectories=length(qh2range), abstol=1e-8, reltol=1e-8)
1.013302 seconds (11.37 M allocations: 625.389 MiB, 18.94% gc time, 29.05% compilation time)
1.823223 seconds (11.89 M allocations: 774.942 MiB, 48.73% gc time, 12.34% compilation time)
1.193293 seconds (11.57 M allocations: 635.397 MiB, 24.84% gc time, 22.21% compilation time)
EnsembleSolution Solution of length 399 with uType:
SciMLBase.NonlinearSolution{_A, _B, _C, _D, SciMLBase.SteadyStateProblem{Vector{Float64}, true, ModelingToolkit.MTKParameters{Vector{Float64}, Vector{Float64}, Tuple{}, Tuple{}, Tuple{}, Tuple{}}, SciMLBase.ODEFunction{true, SciMLBase.FullSpecialize, ModelingToolkit.GeneratedFunctionWrapper{(2, 3, true), RuntimeGeneratedFunctions.RuntimeGeneratedFunction{(:__mtk_arg_1, :___mtkparameters___, :t), ModelingToolkit.var"#_RGF_ModTag", ModelingToolkit.var"#_RGF_ModTag", (0xc51b65e2, 0x421b5b64, 0x53a8bbbf, 0xa056a6c9, 0x1294a9e5), Nothing}, RuntimeGeneratedFunctions.RuntimeGeneratedFunction{(:ˍ₋out, :__mtk_arg_1, :___mtkparameters___, :t), ModelingToolkit.var"#_RGF_ModTag", ModelingToolkit.var"#_RGF_ModTag", (0x87ab45c7, 0xc599f68c, 0x587c3b2f, 0xa378a8a7, 0xab7e3080), Nothing}}, LinearAlgebra.UniformScaling{Bool}, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, ModelingToolkit.ObservedFunctionCache{ModelingToolkit.System}, Nothing, ModelingToolkit.System, SciMLBase.OverrideInitData{SciMLBase.NonlinearProblem{Nothing, true, ModelingToolkit.MTKParameters{Vector{Float64}, StaticArraysCore.SizedVector{0, Float64, Vector{Float64}}, Tuple{}, Tuple{}, Tuple{}, Tuple{}}, SciMLBase.NonlinearFunction{true, SciMLBase.FullSpecialize, ModelingToolkit.GeneratedFunctionWrapper{(2, 2, true), RuntimeGeneratedFunctions.RuntimeGeneratedFunction{(:__mtk_arg_1, :___mtkparameters___), ModelingToolkit.var"#_RGF_ModTag", ModelingToolkit.var"#_RGF_ModTag", (0xc79fffc5, 0x6f78b94f, 0x074311ca, 0x913854e5, 0xe5f17ceb), Nothing}, RuntimeGeneratedFunctions.RuntimeGeneratedFunction{(:ˍ₋out, :__mtk_arg_1, :___mtkparameters___), ModelingToolkit.var"#_RGF_ModTag", ModelingToolkit.var"#_RGF_ModTag", (0x80c0f0ef, 0x63844c77, 0x781a10c6, 0xb77b3427, 0x0028879d), Nothing}}, LinearAlgebra.UniformScaling{Bool}, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, ModelingToolkit.ObservedFunctionCache{ModelingToolkit.System}, Nothing, ModelingToolkit.System, Nothing, Nothing}, Base.Pairs{Symbol, Union{}, Tuple{}, @NamedTuple{}}, SciMLBase.StandardNonlinearProblem}, Nothing, Nothing, Nothing, ModelingToolkit.InitializationMetadata{ModelingToolkit.ReconstructInitializeprob{ModelingToolkit.var"#_getter#892"{Tuple{ComposedFunction{ModelingToolkit.PConstructorApplicator{typeof(identity)}, ModelingToolkit.ObservedWrapper{true, ModelingToolkit.GeneratedFunctionWrapper{(2, 3, true), RuntimeGeneratedFunctions.RuntimeGeneratedFunction{(:__mtk_arg_1, :___mtkparameters___, :t), ModelingToolkit.var"#_RGF_ModTag", ModelingToolkit.var"#_RGF_ModTag", (0xd69959ac, 0xc6e56873, 0x4aa8d2d1, 0xa34c0332, 0x64b8f9fd), Nothing}, RuntimeGeneratedFunctions.RuntimeGeneratedFunction{(:ˍ₋out, :__mtk_arg_1, :___mtkparameters___, :t), ModelingToolkit.var"#_RGF_ModTag", ModelingToolkit.var"#_RGF_ModTag", (0xa2907fd8, 0xdb1558d2, 0xd6dbf71d, 0x7cc3f253, 0x432aeb93), Nothing}}}}, Returns{StaticArraysCore.SizedVector{0, Float64, Vector{Float64}}}, Returns{Tuple{}}, Returns{Tuple{}}, Returns{Tuple{}}}}, ComposedFunction{typeof(identity), SymbolicIndexingInterface.MultipleGetters{SymbolicIndexingInterface.ContinuousTimeseries, Vector{Any}}}}, Nothing, ModelingToolkit.SetInitialUnknowns{SymbolicIndexingInterface.MultipleSetters{Vector{SymbolicIndexingInterface.ParameterHookWrapper{SymbolicIndexingInterface.SetParameterIndex{ModelingToolkit.ParameterIndex{SciMLStructures.Initials, Int64}}, SymbolicUtils.BasicSymbolic{Real}}}}}}, Val{true}}, Nothing}, Base.Pairs{Symbol, Union{}, Tuple{}, @NamedTuple{}}}, SteadyStateDiffEq.DynamicSS{_A1, Float64}, _E, Nothing, Nothing, Nothing} where {_A, _B, _C, _D, _A1, _E}
xs = qh2range ./ 4000μM .* 100

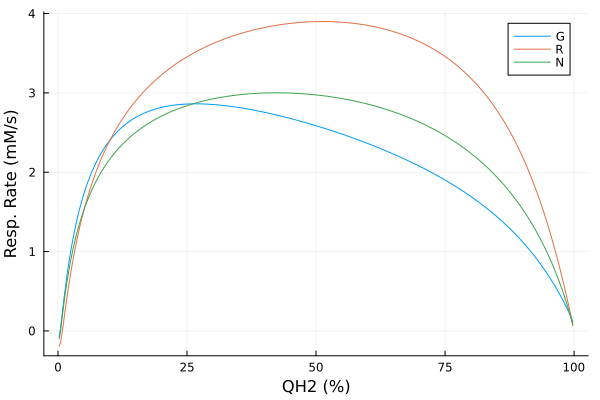

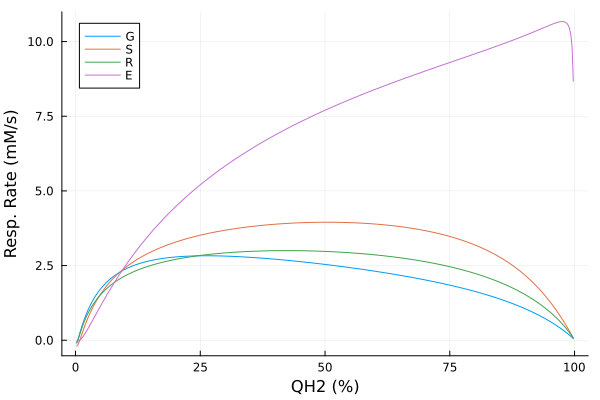

ys = [extract(sim_g, gsys.vHresC3) extract(sim_r, rsys.vHresC3) extract(sim_n, nsys.vHresC3)]
plot(xs, ys, xlabel="QH2 (%)", ylabel="Resp. Rate (mM/s)", label=["G" "R" "N"])

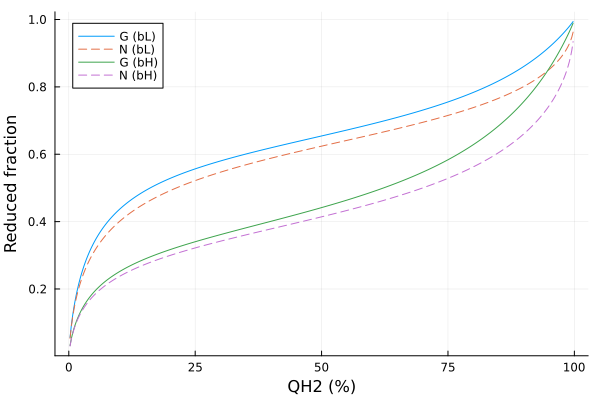

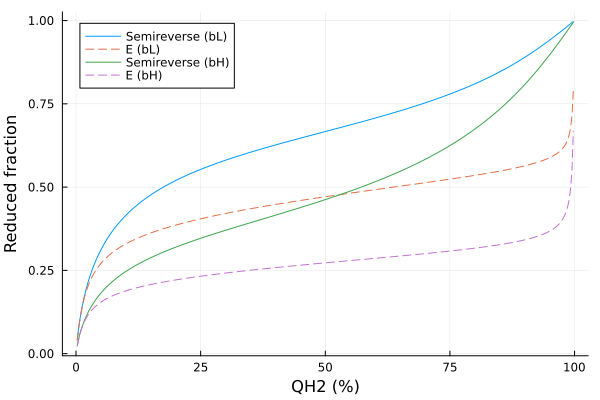

ys = [extract(sim_g, gsys.fracbLrd) extract(sim_n, nsys.fracbLrd) extract(sim_g, gsys.fracbHrd) extract(sim_n, nsys.fracbHrd)]
plot(xs, ys, xlabel="QH2 (%)", ylabel="Reduced fraction", label=["G (bL)" "N (bL)" "G (bH)" "N (bH)"], line=[:solid :dash :solid :dash])

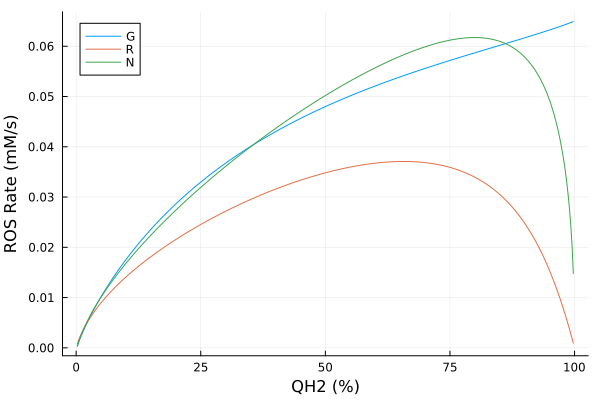

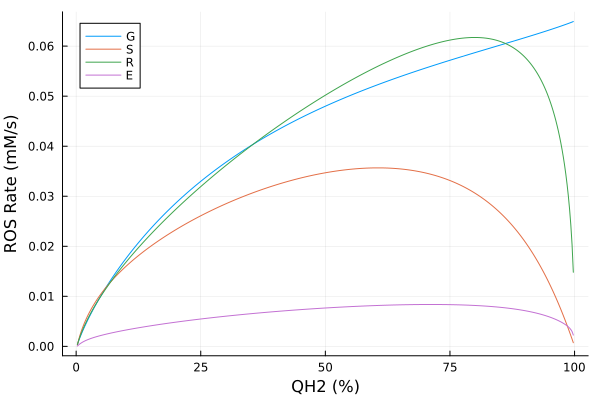

ys = [extract(sim_g, gsys.vROSC3) extract(sim_r, rsys.vROSC3) extract(sim_n, nsys.vROSC3)]
plot(xs, ys, xlabel="QH2 (%)", ylabel="ROS Rate (mM/s)", label=["G" "R" "N"])
ys = [extract(sim_g, gsys.SQp) extract(sim_r, rsys.SQp) extract(sim_n, nsys.SQp)]
399×3 Matrix{Float64}:
3.75078 1.41217 0.0574884
6.65507 2.56853 0.103164
9.29678 3.59749 0.143711
11.7823 4.54158 0.180907
14.1555 5.41951 0.215625
16.4399 6.24505 0.248394
18.6505 7.02694 0.279567
20.7976 7.77139 0.3094
22.8886 8.48309 0.338083
24.9294 9.16649 0.365765
⋮
259.688 12.9704 2.1381
260.038 11.6569 2.04611
260.392 10.312 1.94416
260.749 8.93667 1.82999
261.111 7.529 1.70035
261.478 6.08861 1.55024
261.853 4.61533 1.37131
262.238 3.10909 1.14729
262.646 1.57025 0.836363
This notebook was generated using Literate.jl.
