Random walk (Python)#

2D random walk#

import numpy as np
import matplotlib.pyplot as plt
%matplotlib inline
from numpy.random import default_rng
rng = default_rng()

# Parameters
N_PARTICLES = 100
N_STEPS = 10000
STEP_SIZE = 1
CHOICES = np.array([[0, 1], [1, 0], [0, -1], [-1, 0]])  # Up, right, down, and left

dx = CHOICES[rng.integers(4, size=(N_STEPS, N_PARTICLES))]
pos = dx.cumsum(axis=0) - dx[0, :, :]

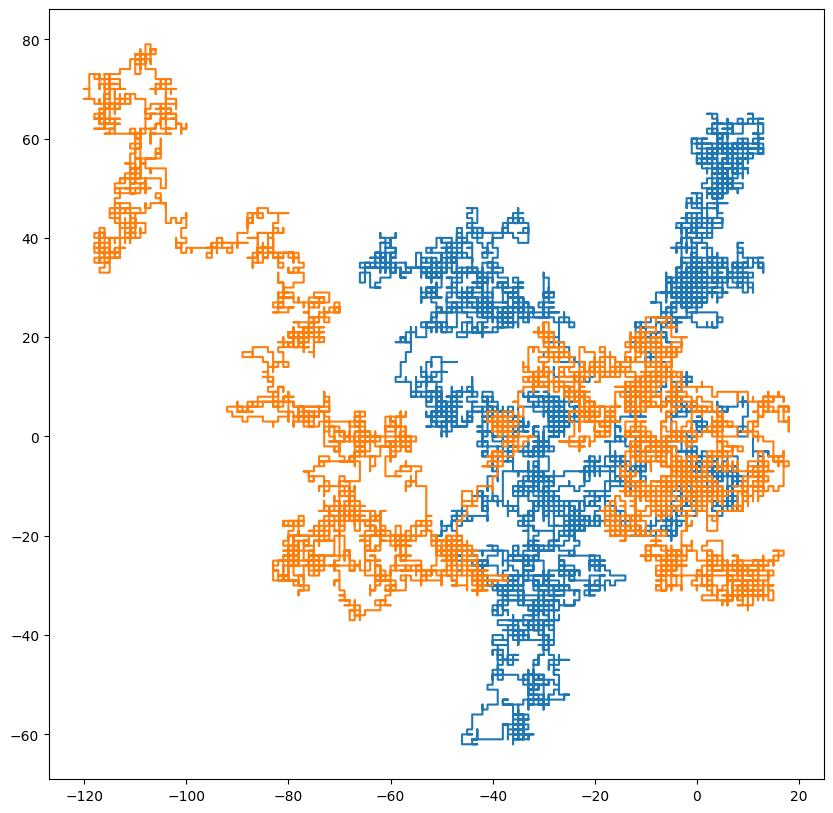

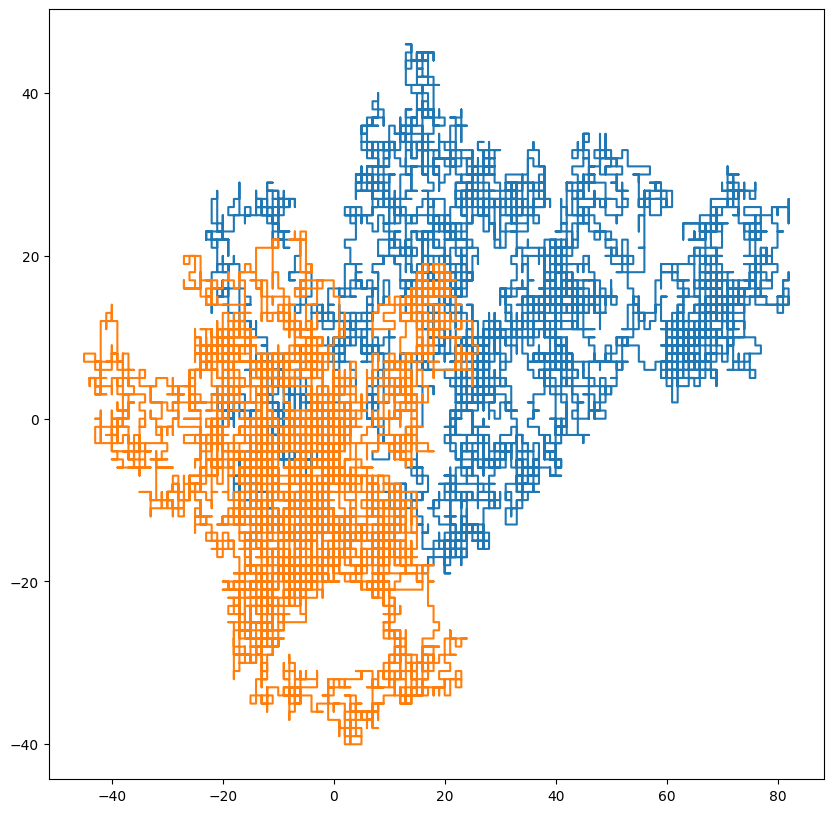

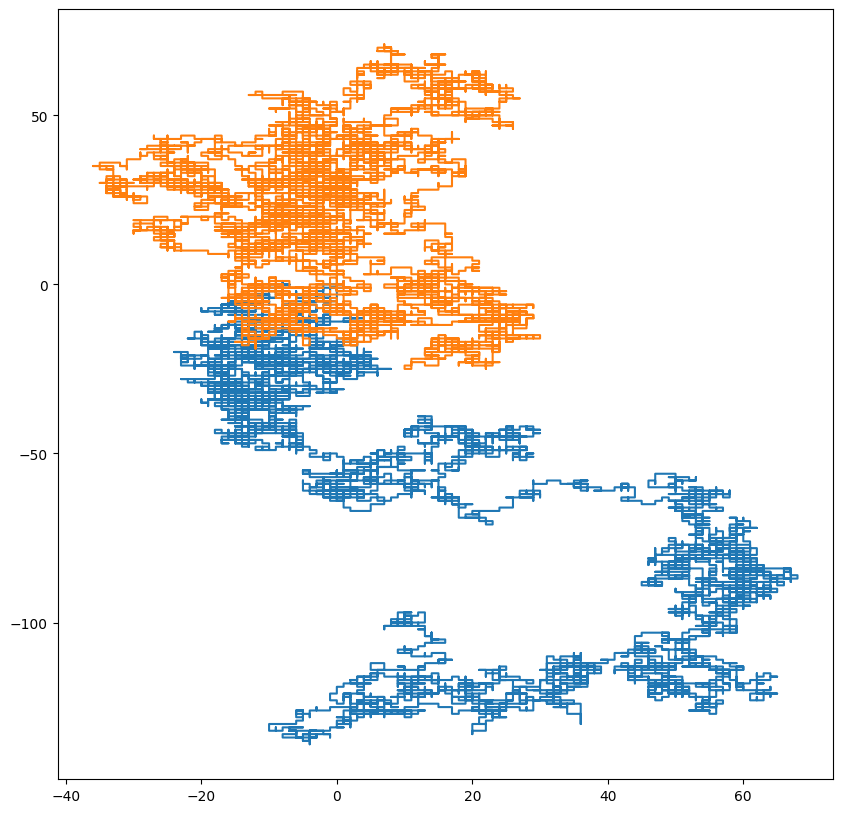

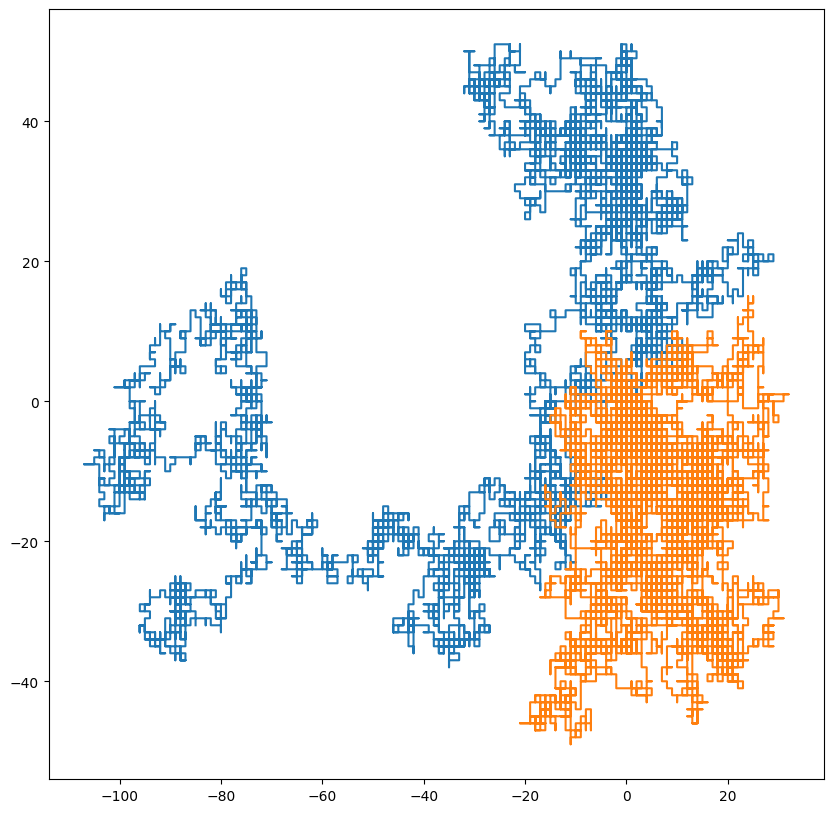

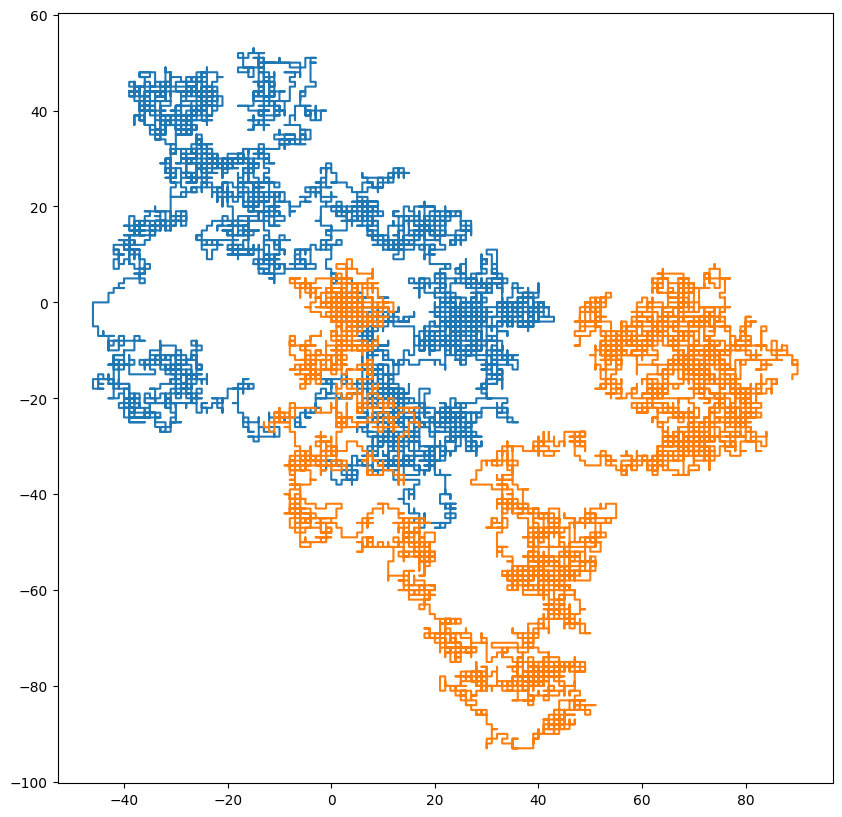

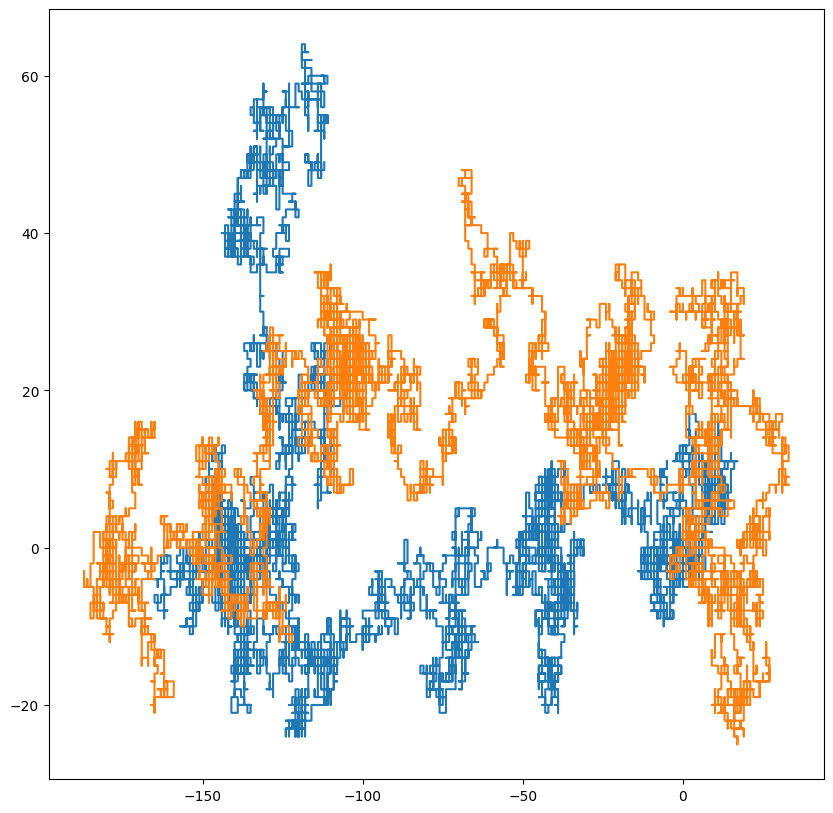

fig, ax = plt.subplots(figsize=(10, 10))
ax.plot(pos[:, 0, 0], pos[:, 0, 1])
ax.plot(pos[:, 1, 0], pos[:, 1, 1])

[<matplotlib.lines.Line2D at 0x7f640c9eb110>]
_images/91879de50d5a95a3a06abccaacf74e3165f93526bac6ae7a6ae93c485eff1afb.png

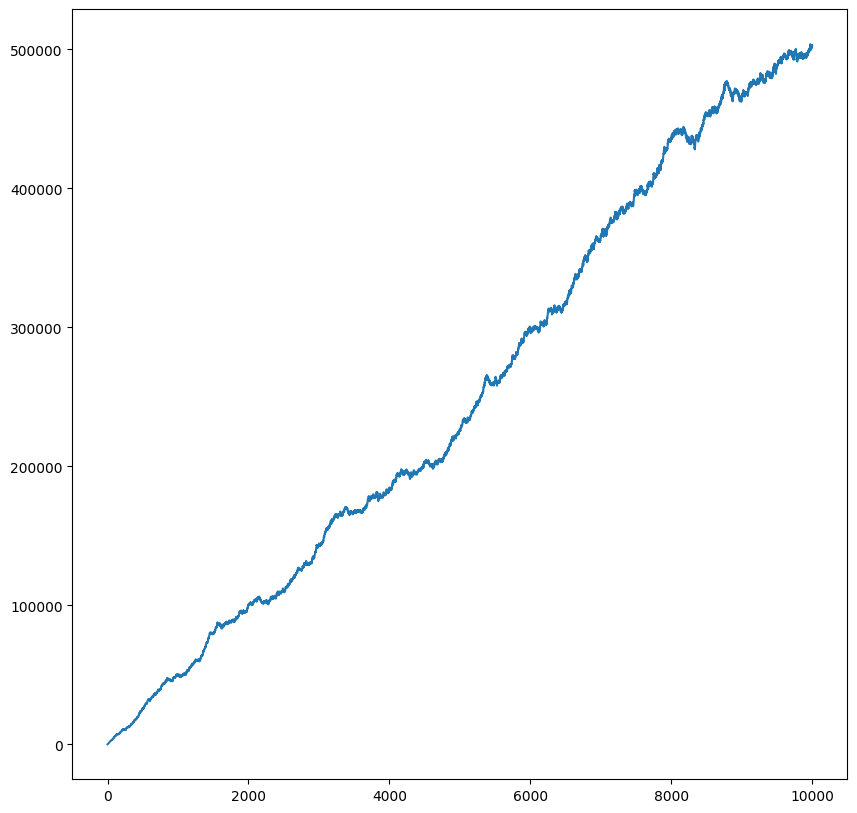

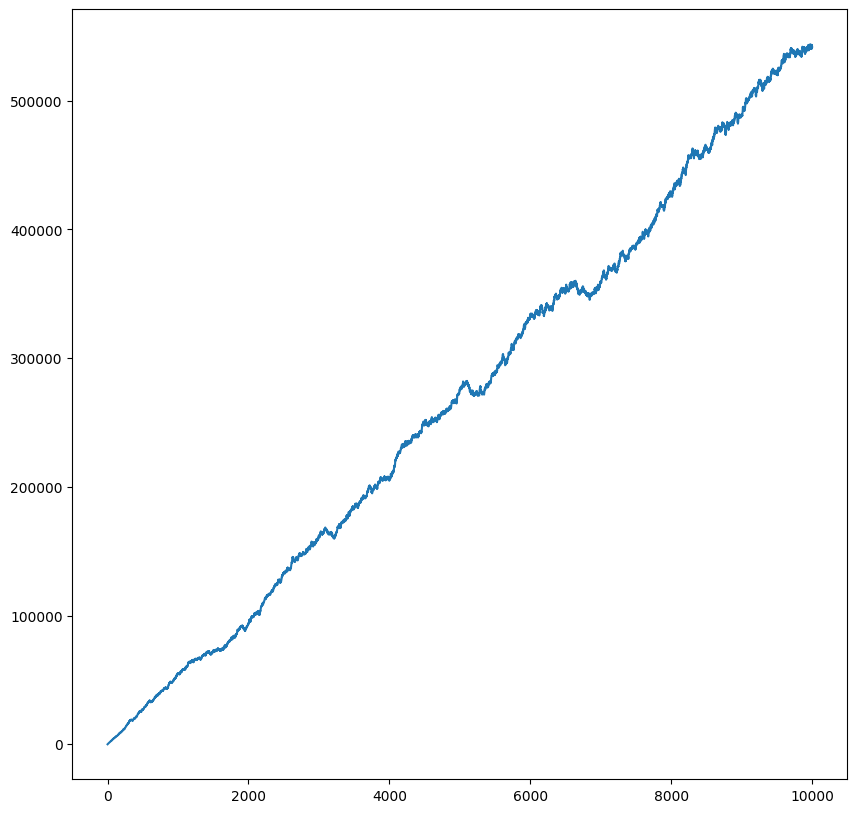

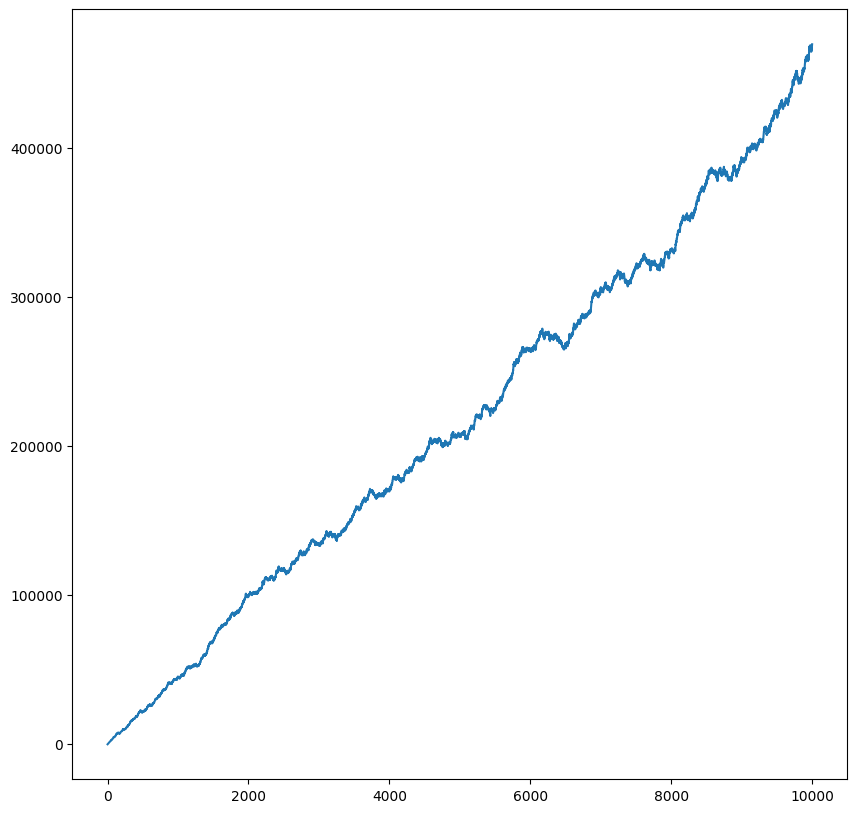

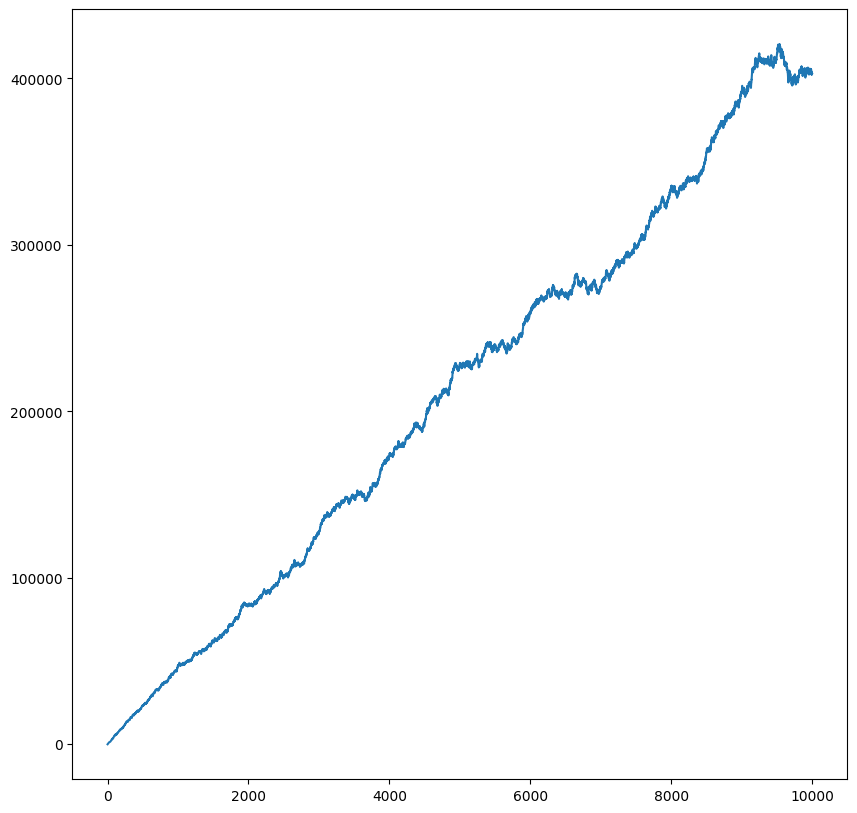

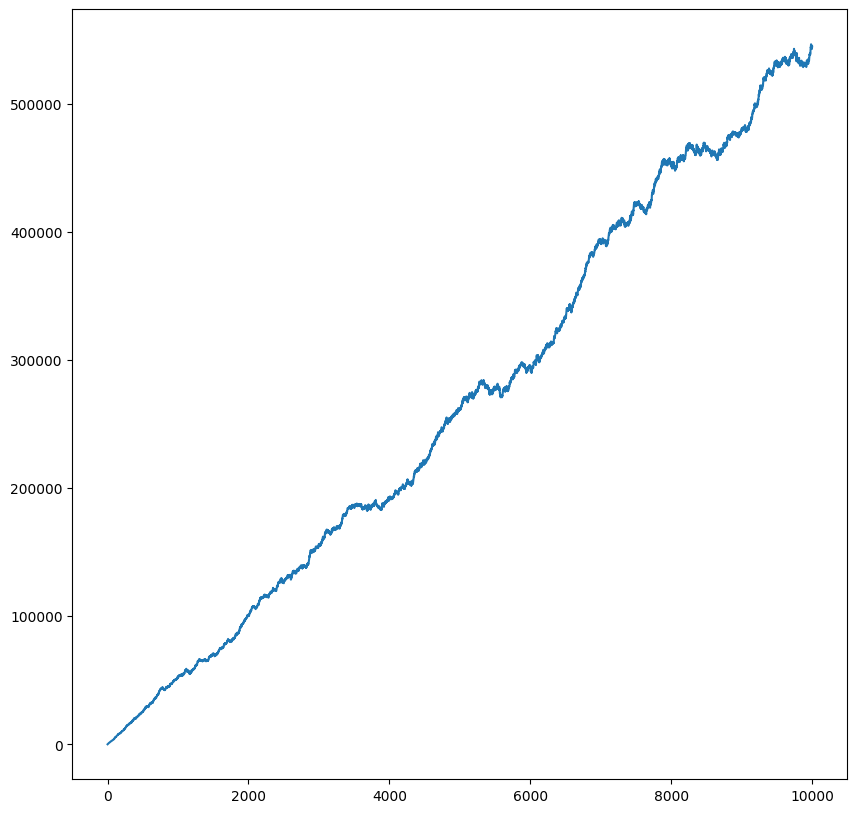

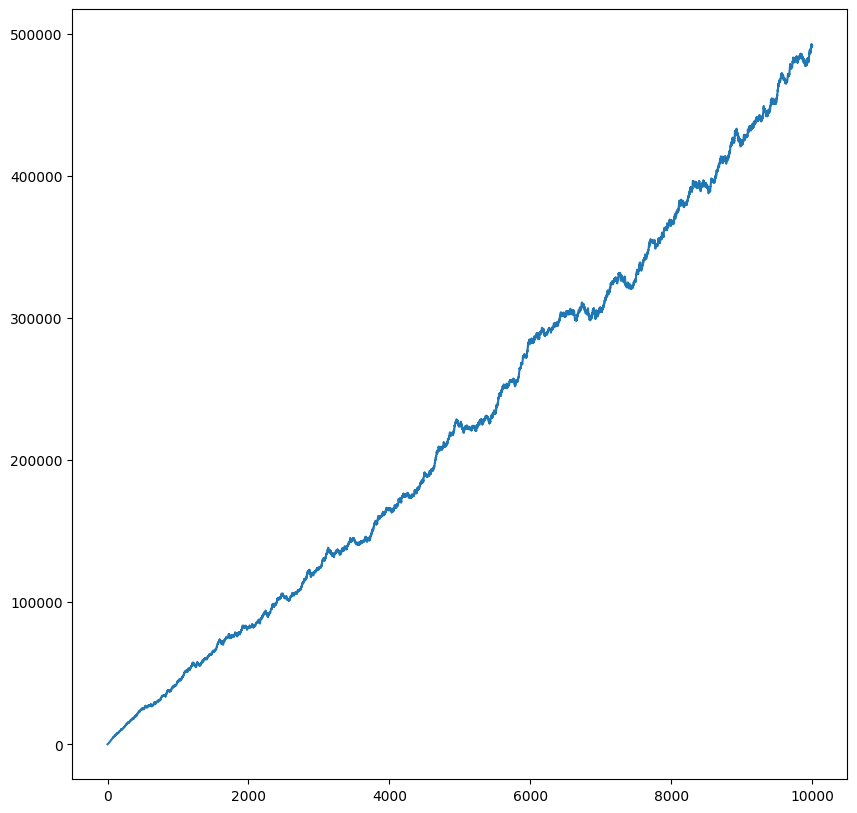

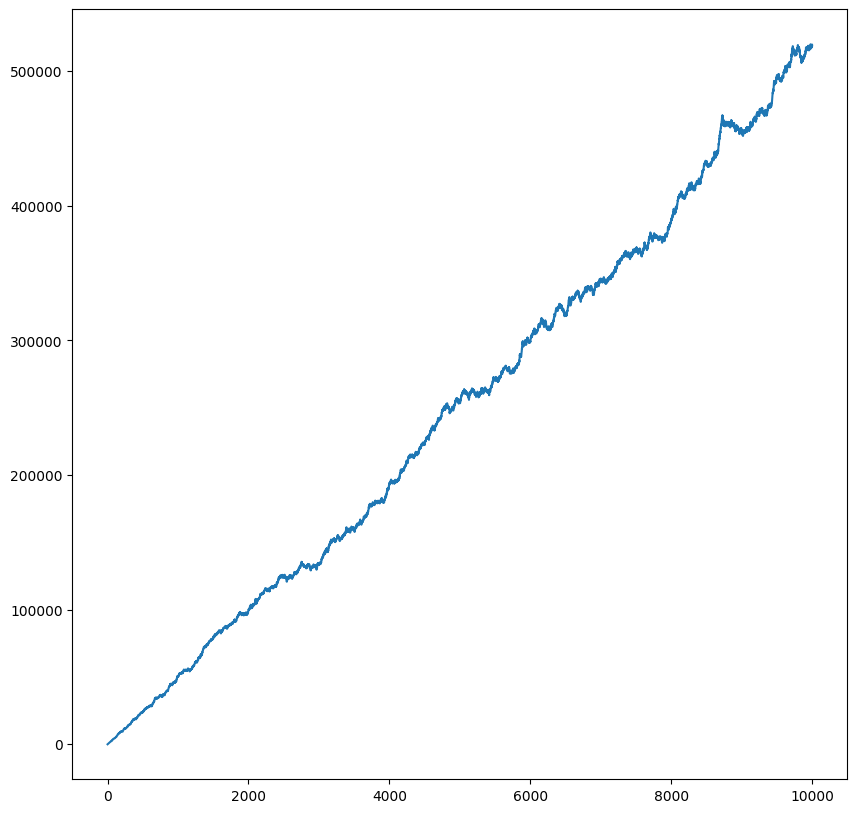

Mean-squared displacement (MSD)

fig, ax = plt.subplots(figsize=(10, 10))
msd = np.mean(np.sum(pos**2, axis=1), axis=1)
ax.plot(np.arange(N_STEPS), msd)

[<matplotlib.lines.Line2D at 0x7f640c74e710>]
_images/4e19203ad0f0d89176f9708a9b986b17bf987966800f24eb8b65d9e325711812.png
