Graph model: The spread of SARS-CoV-2

Source from Agents.jl examples

Here we add one more category of individuals: those who are infected, but do not know it. Transmission rate for infected and diagnosed individuals is lower than infected and undetected.

using Agents, Random
using Agents.DataFrames, Agents.Graphs
using StatsBase: sample, Weights
using LinearAlgebra: diagind
using CairoMakie
CairoMakie.activate!(px_per_unit = 1.0)

Update message: Agents v6

This is a new major version of Agents.jl with lots of cool stuff!
However, from this version onwards, we will stop posting update messages
to the REPL console!

If you want to be updated, follow this discourse post:

https://discourse.julialang.org/t/agents-jl-v6-releases-announcement-post/111678

(and see the CHANGELOG.md file online for a list of changes!)

Define the Model

@agent struct PoorSoul(GraphAgent)
    days_infected::Int  ## number of days since is infected
    status::Symbol  ## S/I/R
end

Initialize the model

function make_model(;
    Ns,
    migration_rates,
    β_und,
    β_det,
    infection_period = 30,
    reinfection_probability = 0.05,
    detection_time = 14,
    death_rate = 0.02,
    Is = [zeros(Int, length(Ns) - 1)..., 1],
    seed = 2024,
)

    rng = Xoshiro(seed)
    @assert length(Ns) ==
    length(Is) ==
    length(β_und) ==
    length(β_det) ==
    size(migration_rates, 1) "length of Ns, Is, and B, and number of rows/columns in migration_rates should be the same "
    @assert size(migration_rates, 1) == size(migration_rates, 2) "migration_rates rates should be a square matrix"

    C = length(Ns) ## Number of cities

    # normalize migration_rates
    migration_rates_sum = sum(migration_rates, dims = 2)
    for c in 1:C
        migration_rates[c, :] ./= migration_rates_sum[c]
    end

    properties = (;
        Ns,
        Is,
        β_und,
        β_det,
        migration_rates,
        infection_period,
        reinfection_probability,
        detection_time,
        C,
        death_rate
    )

    space = GraphSpace(complete_graph(C))
    model = StandardABM(PoorSoul, space; agent_step!, properties, rng)

    # Add initial individuals
    for city in 1:C, n in 1:Ns[city]
        ind = add_agent!(city, model, 0, :S) ## Susceptible
    end

    # add infected individuals
    for city in 1:C
        inds = ids_in_position(city, model)
        for n in 1:Is[city]
            agent = model[inds[n]]
            agent.status = :I ## Set infected individual
            agent.days_infected = 1
        end
    end
    return model
end
make_model (generic function with 1 method)

Initialize parameters

function create_params(;
    C,
    max_travel_rate,
    infection_period = 30,
    reinfection_probability = 0.05,
    detection_time = 14,
    death_rate = 0.02,
    Is = [zeros(Int, C - 1)..., 1],
    seed = 2024,
)
    rng = Xoshiro(seed)
    Ns = rand(rng, 50:5000, C) ## City population
    β_und = rand(rng, 0.3:0.02:0.6, C) ## Undetected transmission
    β_det = β_und ./ 10 ## Detected transmission (set to 10% of undetected)

    # Migrate from city i to city j
    # People in small cities tend to migrate to bigger cities
    migration_rates = zeros(C, C)
    for c in 1:C
        for c2 in 1:C
            migration_rates[c, c2] = (Ns[c] + Ns[c2]) / Ns[c]
        end
    end

    # Normalize migration rates
    maxM = maximum(migration_rates)
    migration_rates = (migration_rates .* max_travel_rate) ./ maxM
    # Migrate to self = 1
    migration_rates[diagind(migration_rates)] .= 1.0

    params = (;
        Ns,
        β_und,
        β_det,
        migration_rates,
        infection_period,
        reinfection_probability,
        detection_time,
        death_rate,
        Is
    )

    return params
end
create_params (generic function with 1 method)

Stepping functions

function agent_step!(agent, model)
    migrate!(agent, model)
    transmit!(agent, model)
    update!(agent, model)
    recover_or_die!(agent, model)
    return nothing
end

function migrate!(agent, model)
    pid = agent.pos
    m = sample(abmrng(model), 1:(model.C), Weights(model.migration_rates[pid, :]))
    if m ≠ pid
        move_agent!(agent, m, model)
    end
    return nothing
end

function transmit!(agent, model)
    agent.status == :S && return
    rate = if agent.days_infected < model.detection_time
        model.β_und[agent.pos]
    else
        model.β_det[agent.pos]
    end

    rng = abmrng(model)
    n = rate * abs(randn(rng))
    n <= 0 && return

    for contactID in ids_in_position(agent, model)
        contact = model[contactID]
        if contact.status == :S ||
           (contact.status == :R && rand(rng) ≤ model.reinfection_probability)
            contact.status = :I
            n -= 1
            n <= 0 && return
        end
    end
    return nothing
end

update!(agent, model) = agent.status == :I && (agent.days_infected += 1)

function recover_or_die!(agent, model)
    if agent.days_infected ≥ model.infection_period
        if rand(abmrng(model)) ≤ model.death_rate
            remove_agent!(agent, model)
        else
            agent.status = :R
            agent.days_infected = 0
        end
    end
    return nothing
end
recover_or_die! (generic function with 1 method)

Initialize the model

params = create_params(C = 10, max_travel_rate = 0.01)
model = make_model(; params...)
StandardABM with 24597 agents of type PoorSoul
 agents container: Dict
 space: GraphSpace with 10 positions and 45 edges
 scheduler: fastest
 properties: Ns, Is, β_und, β_det, migration_rates, infection_period, reinfection_probability, detection_time, C, death_rate

Animation

Observable: The quantity that updates dynamically and interactively Makie plots.

abmobs = ABMObservable(model)

infected_fraction(m, x) = count(m[id].status == :I for id in x) / length(x)
infected_fractions(m) = [infected_fraction(m, ids_in_position(p, m)) for p in positions(m)]
infected_fractions (generic function with 1 method)

Connect (lift) observables to model states

fracs = lift(infected_fractions, abmobs.model)
color = lift(fs -> [cgrad(:inferno)[f] for f in fs], fracs)
title = lift(
    (m) -> "step = $(abmtime(m)), infected = $(round(Int, 100infected_fraction(m, allids(m))))%",
    abmobs.model
)
Observable("step = 0, infected = 0%")

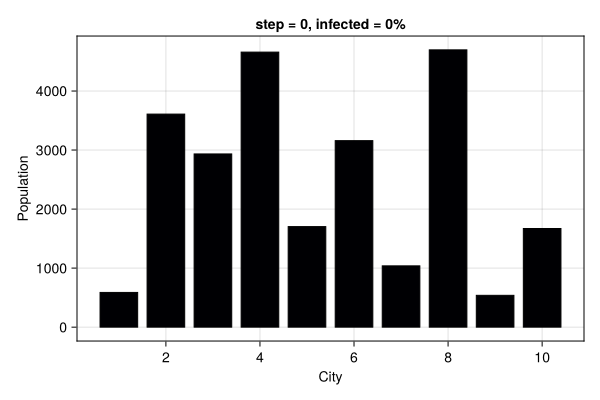

Figure

fig = Figure(size = (600, 400))
ax = Axis(fig[1, 1]; title, xlabel = "City", ylabel = "Population")
barplot!(ax, model.Ns; strokecolor = :black, strokewidth = 1, color)
fig

Animation

vio = Makie.Record(fig; framerate = 5) do io
    for j in 1:30
        recordframe!(io)
        Agents.step!(abmobs, 1)
    end
    recordframe!(io)
end

vio |> display

This notebook was generated using Literate.jl.
