Cell division model

https://juliadynamics.github.io/Agents.jl/stable/examples/delaunay/

Using https://github.com/JuliaDynamics/Agents.jl and https://github.com/JuliaGeometry/DelaunayTriangulation.jl

using Agents
using StaticArrays
import DelaunayTriangulation as DT
using DelaunayTriangulation
using LinearAlgebra
using StreamSampling
using Random
using StatsBase
using Base64
using CairoMakie
CairoMakie.activate!(px_per_unit = 0.5)

The helper function displays video files in Jupyter notebooks

function display_mp4(filename)
    display("text/html", string("""<video autoplay controls><source src="data:video/x-m4v;base64,""",
        base64encode(open(read, filename)),
        """" type="video/mp4"></video>"""))
end

display_mp4 (generic function with 1 method)

Define agents (3 colors of cells)

@enum CellType begin
    Red
    Blue
    Orange
end

@agent struct Cell(ContinuousAgent{2,Float64})
    const color::CellType
    const birth::Float64
    death::Float64 = Inf
end

Defining methods for the agents

DT.getx(cell::Cell) = cell.pos[1]
DT.gety(cell::Cell) = cell.pos[2]
DT.number_type(::Type{Cell}) = Float64
DT.number_type(::Type{Vector{Cell}}) = Float64
DT.is_point2(::Cell) = true

Compute parameters for a pair of cells

spring_constant(model, i::Int, j::Int, t) = spring_constant(model, model[i], model[j], t)
function spring_constant(model, p::Cell, q::Cell, t; μ=20.0)
    δ = norm(p.pos - q.pos)
    s = rest_length(model, p, q, t)
    t < 1 && return μ ## no adhesion for the initial population
    μₕₑₜ = ifelse(p.color == q.color, 1.0, 0.1) ## heterotypic_spring_constant
    return ifelse(δ > s, μₕₑₜ * μ, μ)
end

spring_constant (generic function with 2 methods)

rest_length(model, i::Int, j::Int, t) = rest_length(model, model[i], model[j]..., t)
function rest_length(model, p, q, t;
    s=1.0,  ## mature_cell_spring_rest_length
    ε=0.05, ## expansion_rate
)
    return min(s, (s - ε) * t + ε)
end

rest_length (generic function with 2 methods)

function proliferation_rate(model, i::Int, t; tₘᵢₙ = 1.0, K=100.0^2, Aₘᵢₙ=0.01)
    p = model[i]
    age = t - p.birth
    tₘₐₓ = p.color == Red ? 15.0 : p.color == Blue ? 20.0 : 3.0
    A = get_area(model.tessellation, i)
    if age ≤ tₘᵢₙ || age ≥ tₘₐₓ || A < Aₘᵢₙ
        return 0.0
    end
    Aᵢ = get_area(model.tessellation, i)
    β = p.color == Red ? 0.4 : p.color == Blue ? 0.5 : 0.8
    return max(0.0, β * (1 - 1 / (K * Aᵢ)))
end

proliferation_rate (generic function with 1 method)

Forces between two cells

force(model, i::Int, j::Int, t) = force(model, model[i], model[j], t)
function force(model, p::Cell, q::Cell, t; ℓₘₐₓ = 1.5)
    rᵢⱼ = q.pos - p.pos
    δ = norm(rᵢⱼ)
    if δ > ℓₘₐₓ
        return SVector(0.0, 0.0)
    end
    μ = spring_constant(model, p, q, t)
    s = rest_length(model, p, q, t)
    return μ * (δ - s) * rᵢⱼ / δ
end

force (generic function with 2 methods)

Final random tug

function random_force(model, i::Int; ξ=0.01)
    p = model[i]
    Δt = model.dt
    return sqrt(2ξ / Δt) * SVector(randn(), randn())
end

random_force (generic function with 1 method)

Accumulate forces acting on one cell

function force(model, i::Int, t)
    F = SVector(0.0, 0.0)
    for j in get_neighbours(model.triangulation, i)
        DT.is_ghost_vertex(j) && continue
        F = F + force(model, i, j, t)
    end
    F = F + random_force(model, i)
    return F
end

force (generic function with 3 methods)

Cell movement velocity

velocity(model, i, t; η=0.5) = force(model, i, t) / η

velocity (generic function with 1 method)

First update_velocities!() and then update_positions!() for each cell to avoid positional errors

function update_velocities!(model, t)
    for i in each_solid_vertex(model.triangulation)
        model[i].vel = velocity(model, i, t)
    end
    return model
end

function new_position(model, i, t)
    xᵢ = model[i]
    r = xᵢ.pos + model.dt * xᵢ.vel
    x, y = r
    xmax, ymax = spacesize(model)
    # Freeze if the new position is out of bounds
    if x < 0 || x > xmax || y < 0 || y > ymax
        r = xᵢ.pos
    end
    return r
end

function update_positions!(model, t)
    update_velocities!(model, t)
    for i in each_solid_vertex(model.triangulation)
        model[i].pos = new_position(model, i, t)
    end
    return model
end

update_positions! (generic function with 1 method)

Cumulative sum of proliferation probabilities

function proliferation_probability(model, t)
    Δt = model.dt
    # Technically nagents is not the number of alive agents, but with the way we are handling agents this is correct
    probs = zeros(nagents(model))
    for i in allids(model)
        # Skip empty and dead cells
        if !DT.has_vertex(model.triangulation, i) || (i ∈ model.dead_cells)
            probs[i] = 0.0
        else
            probs[i] = proliferation_rate(model, i, t) * Δt
        end
    end
    return probs
end

select_proliferative_cell(model, probs) = StatsBase.sample(weights(probs))

select_proliferative_cell (generic function with 1 method)

sampling from a Voronoi cell

function sample_triangle(tri::Triangulation, T)
    i, j, k = triangle_vertices(T)
    p, q, r = get_point(tri, i, j, k)
    px, py = getxy(p)
    qx, qy = getxy(q)
    rx, ry = getxy(r)
    a = (qx - px, qy - py)
    b = (rx - px, ry - py)
    u₁, u₂ = rand(), rand()
    if u₁ + u₂ > 1
        u₁, u₂ = 1 - u₁, 1 - u₂
    end
    ax, ay = getxy(a)
    bx, by = getxy(b)
    wx, wy = u₁ * ax + u₂ * bx, u₁ * ay + u₂ * by
    return SVector(px + wx, py + wy)
end

sample_triangle (generic function with 1 method)

select a random triangle from a triangulation

function random_triangle(tri::Triangulation)
    triangles = DT.each_solid_triangle(tri)
    area(T) = DT.triangle_area(get_point(tri, triangle_vertices(T)...)...)
    T = itsample(triangles, area)
    return T
end

random_triangle (generic function with 1 method)

First, triangulate the Voronoi cell. Then, sample a triangle from the triangulation, and finally sample a point from the triangle

function triangulate_voronoi_cell(vorn::VoronoiTessellation, i)
    S = @view get_polygon(vorn, i)[1:end-1]
    points = DT.get_polygon_points(vorn)
    return triangulate_convex(points, S)
end
function sample_voronoi_cell(vorn::VoronoiTessellation, i)
    tri = triangulate_voronoi_cell(vorn, i)
    T = random_triangle(tri)
    return sample_triangle(tri, T)
end

mutation_probability(p) = p.color == Red ? 0.3 : p.color == Blue ? 0.5 : 0.05 # pₘᵤₜ

mutation_probability (generic function with 1 method)

computing the daughter cell and performing the proliferation event.

function place_daughter_cell!(model, i::Int, t)
    parent = model[i]
    # this is an SVector, not a Cell
    daughterpos = sample_voronoi_cell(model.tessellation, i)
    u = rand()
    clr = parent.color
    if u < mutation_probability(parent)
        newclr = clr == Red ? Blue : clr == Blue ? Orange : Red
    else
        newclr = clr
    end
    add_agent!(daughterpos, model; color=newclr, birth=t, vel=SVector(0.0, 0.0))
    return daughterpos
end

function proliferate_cells!(model, t)
    probs = proliferation_probability(model, t)
    u = rand()
    event = u < sum(probs)
    !event && return false
    i = select_proliferative_cell(model, probs)
    daughterpos = place_daughter_cell!(model, i, t)
    return true
end

max_age(p) = p.color == Red ? 10.0 : p.color == Blue ? 10.0 : 3.0 # dₘₐₓ
death_rate(p) = p.color == Red ? 0.001 : p.color == Blue ? 0.00005 : 0.0001 # psick

death_rate (generic function with 1 method)

Mark cell i as dead

function cull_cell!(model, i::Int, t)
    p = model[i]
    elder = t - p.birth> max_age(p)
    sick = rand() < model.dt * death_rate(p)
    xmax, ymax = spacesize(model)
    x, y = p.pos
    outside = x < 0 || x > xmax || y < 0 || y > ymax
    if elder || sick || outside
        push!(model.dead_cells, i)
        p.death = t
    end
    return model
end
function cull_cells!(model, t)
    for i in each_solid_vertex(model.triangulation)
        cull_cell!(model, i, t)
    end
    return model
end

cull_cells! (generic function with 1 method)

(Finally,) define the stepping function of the ABModel

function model_step!(model)
    stepn = abmtime(model)
    t = stepn * model.dt
    cull_cells!(model, t)
    proliferate_cells!(model, t)
    update_positions!(model, t)
    points = [a.pos for a in allagents(model)]
    model.triangulation = retriangulate(model.triangulation, points; skip_points=model.dead_cells)
    model.tessellation = voronoi(model.triangulation, clip=true)
    return model
end

model_step! (generic function with 1 method)

Initialize the model

function initialize_cell_model(;
    ninit=50,
    radius=2.0,
    dt=0.01,
    sides=SVector(20.0, 20.0),
    seed=0)
    Random.seed!(seed)
    # Generate the initial random positions
    cent = SVector(sides[1] / 2, sides[2] / 2)
    cells = map(1:ninit) do i
        θ = 2π * rand()
        r = radius * sqrt(rand())
        pos = cent + SVector(r * cos(θ), r * sin(θ))
        cell = Cell(; id=i, pos=pos,
            color=Red, birth=0.0, vel=SVector(0.0, 0.0))
    end
    positions = [cell.pos for cell in cells]

    # Compute the triangulation and the tessellation
    triangulation = triangulate(positions)
    tessellation = voronoi(triangulation, clip=true)

    # Define the model parameters
    properties = Dict(
        :triangulation => triangulation,
        :tessellation => tessellation,
        :dt => dt,
        :dead_cells => Set{Int}()
    )

    # Define the space
    space = ContinuousSpace(sides; periodic=false)

    # Define the model
    model = StandardABM(Cell, space; model_step!, properties, container=Vector)

    # Add cells
    for (id, pos) in pairs(positions)
        add_agent!(pos, model; color=Red, birth=0.0, vel=SVector(0.0, 0.0))
    end

    return model
end

initialize_cell_model (generic function with 1 method)

Helper functions

function count_cell_type(model, type)
    stepn = abmtime(model)
    t = stepn * model.dt
    n = 0
    for i in each_solid_vertex(model.triangulation)
        n += model[i].color == type
    end
    return n
end
count_red(model) = count_cell_type(model, Red)
count_blue(model) = count_cell_type(model, Blue)
count_orange(model) = count_cell_type(model, Orange)
count_total(model) = num_solid_vertices(model.triangulation)
function average_cell_area(model)
    area_itr = (get_area(model.tessellation, i) for i in each_solid_vertex(model.triangulation))
    mean_area = mean(area_itr)
    return mean_area
end
function cell_diameter(vorn, i)
    S = get_polygon(vorn, i)
    # This is an O(|S|^2) method, but |S| is small so it is fine
    max_d = 0.0
    for i in S
        p = get_polygon_point(vorn, i)
        for j in S
            i == j && continue
            q = get_polygon_point(vorn, j)
            d = norm(getxy(p) .- getxy(q))
            max_d = max(max_d, d)
        end
    end
    return max_d
end
function average_cell_diameter(model)
    diam_itr = (cell_diameter(model.tessellation, i) for i in each_solid_vertex(model.triangulation))
    mean_diam = mean(diam_itr)
    return mean_diam
end
function average_spring_length(model)
    spring_itr = (norm(model[i].pos - model[j].pos) for (i, j) in each_solid_edge(model.triangulation))
    mean_spring = mean(spring_itr)
    return mean_spring
end

average_spring_length (generic function with 1 method)

Run the simulations

finalT = 50.0
model = initialize_cell_model()
nsteps = Int(finalT / model.dt)
mdata = [count_red, count_blue, count_orange, count_total,
    average_cell_area, average_cell_diameter, average_spring_length]
@time agent_df, model_df = run!(model, nsteps; mdata);

 85.578329 seconds (318.63 M allocations: 44.216 GiB, 2.62% gc time, 6.88% compilation time)

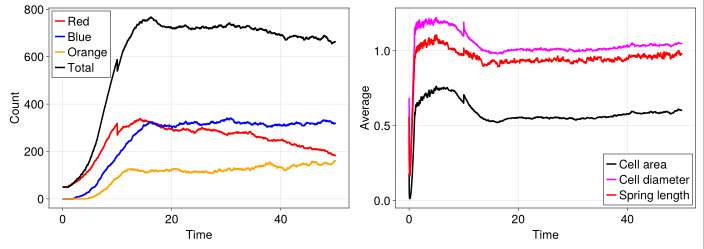

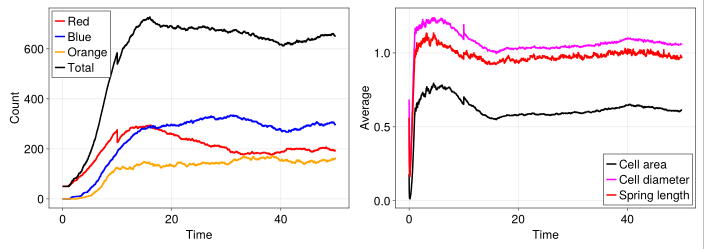

Visualize using CairoMakie

time = 0:model.dt:finalT
fig = Figure(fontsize=24)
ax = Axis(fig[1, 1], xlabel="Time", ylabel="Count", width=600, height=400)
lines!(ax, time, model_df[!, :count_red], color=:red, label="Red", linewidth=3)
lines!(ax, time, model_df[!, :count_blue], color=:blue, label="Blue", linewidth=3)
lines!(ax, time, model_df[!, :count_orange], color=:orange, label="Orange", linewidth=3)
lines!(ax, time, model_df[!, :count_total], color=:black, label="Total", linewidth=3)
axislegend(ax, position=:lt)
ax = Axis(fig[1, 2], xlabel="Time", ylabel="Average", width=600, height=400)
lines!(ax, time, model_df[!, :average_cell_area], color=:black, label="Cell area", linewidth=3)
lines!(ax, time, model_df[!, :average_cell_diameter], color=:magenta, label="Cell diameter", linewidth=3)
lines!(ax, time, model_df[!, :average_spring_length], color=:red, label="Spring length", linewidth=3)
axislegend(ax, position=:rb)
resize_to_layout!(fig)
fig

Animate the results

voronoi_marker = (model, cell) -> begin
    id = cell.id
    verts = get_polygon_coordinates(model.tessellation, id)
    return Makie.Polygon([Point2f(getxy(q) .- cell.pos) for q in verts])
end
voronoi_color(cell) = cell.color == Red ? :red : cell.color == Blue ? :blue : :orange
model = initialize_cell_model() ## reinitialise the model for the animation
fig, ax, amobs = abmplot(model, agent_marker=cell -> voronoi_marker(model, cell), agent_color=voronoi_color,
    agentsplotkwargs=(strokewidth=1,), figure=(; size=(1600, 800), fontsize=34), mdata=mdata,
    axis=(; width=800, height=800), when=10)
current_time = Observable(0.0)
t = Observable([0.0])
nred = Observable(amobs.mdf[][!, :count_red])
nblue = Observable(amobs.mdf[][!, :count_blue])
norange = Observable(amobs.mdf[][!, :count_orange])
ntotal = Observable(amobs.mdf[][!, :count_total])
avg_area = Observable(amobs.mdf[][!, :average_cell_area])
avg_diam = Observable(amobs.mdf[][!, :average_cell_diameter])
avg_spring = Observable(amobs.mdf[][!, :average_spring_length])
plot_layout = fig[:, end+1] = GridLayout()
count_layout = plot_layout[1, 1] = GridLayout()
ax_count = Axis(count_layout[1, 1], xlabel="Time", ylabel="Count", width=600, height=400)
lines!(ax_count, t, nred, color=:red, label="Red", linewidth=3)
lines!(ax_count, t, nblue, color=:blue, label="Blue", linewidth=3)
lines!(ax_count, t, norange, color=:orange, label="Orange", linewidth=3)
lines!(ax_count, t, ntotal, color=:black, label="Total", linewidth=3)
vlines!(ax_count, current_time, color=:grey, linestyle=:dash, linewidth=3)
xlims!(ax_count, 0, finalT)
ylims!(ax_count, 0, 800)
avg_layout = plot_layout[2, 1] = GridLayout()
ax_avg = Axis(avg_layout[1, 1], xlabel="Time", ylabel="Average", width=600, height=400)
lines!(ax_avg, t, avg_area, color=:black, label="Cell area", linewidth=3)
lines!(ax_avg, t, avg_diam, color=:magenta, label="Cell diameter", linewidth=3)
lines!(ax_avg, t, avg_spring, color=:red, label="Spring length", linewidth=3)
vlines!(ax_avg, current_time, color=:grey, linestyle=:dash, linewidth=3)
axislegend(ax_avg, position=:rt)
xlims!(ax_avg, 0, finalT)
ylims!(ax_avg, 0, 2)
resize_to_layout!(fig)
on(amobs.mdf) do mdf
    current_time[] = abmtime(amobs.model[]) * model.dt
    t.val = mdf[!, :time] .* model.dt
    nred[] = mdf[!, :count_red]
    nblue[] = mdf[!, :count_blue]
    norange[] = mdf[!, :count_orange]
    ntotal[] = mdf[!, :count_total]
    avg_area[] = mdf[!, :average_cell_area]
    avg_diam[] = mdf[!, :average_cell_diameter]
    avg_spring[] = mdf[!, :average_spring_length]
end

ObserverFunction defined at /home/runner/work/jl-abm/jl-abm/docs/09-celldiv.ipynb:41 operating on Observable(1×8 DataFrame
 Row │ time   count_red  count_blue  count_orange  count_total  average_cell_a ⋯
     │ Int64  Int64      Int64       Int64         Int64        Float64        ⋯
─────┼──────────────────────────────────────────────────────────────────────────
   1 │     0         50           0             0           50           0.181 ⋯
                                                               3 columns omitted)

Record the results for every 10 steps

vio = Makie.Record(fig, 1:(nsteps ÷ 10), framerate=24) do i
    step!(amobs, 10)
end

save("celldiv.mp4", vio)

"celldiv.mp4"

This notebook was generated using Literate.jl.
