Metabolic network modeling with COBRA

Databases of models

1. Biomodels https://www.ebi.ac.uk/biomodels-main/publmodels

2. BiGG http://bigg.ucsd.edu/

3. HMA http://www.metabolicatlas.org

Documentation of cobrapy and cobra toolbox

1. https://cobrapy.readthedocs.io/en/stable/index.html

2. https://opencobra.github.io/cobratoolbox/stable/

Solvers

1. Gurobi http://www.gurobi.com

2. cplex https://www.ibm.com/products/ilog-cplex-optimization-studio

3. glpk

To install cobrapy, run the following code below (requires pip):

# install cobrapy
# !pip install cobra
# !pip install pytest

# load modules
import cobra
from cobra.io import load_model

# check cobra version
cobra.__version__

'0.26.3'

model = load_model("textbook")

model

Name	e_coli_core
Memory address	7fcd71b2b610
Number of metabolites	72
Number of reactions	95
Number of genes	137
Number of groups	0
Objective expression	1.0*Biomass_Ecoli_core - 1.0*Biomass_Ecoli_core_reverse_2cdba
Compartments	cytosol, extracellular

You can also load a exist model by using io functions like load_matlab_model, read_sbml_model …

## io functions

# cobra.io.read_sbml_model
# cobra.io.load_json_model
# cobra.io.load_matlab_model
# cobra.io.load_yaml_model

Components of model

Model (cobra.core.model.Model)

---

attribute:

Attribute	Type	Description
reactions	DictList	A DictList where the key is the reaction identifier and the value a Reaction
metabolites	DictList	A DictList where the key is the metabolite identifier and the value a Metabolite
genes	DictList	A DictList where the key is the gene identifier and the value a Gene
solution	cobra.Solution	The last obtained solution from optimizing the model.
boundary	DictList	Boundary reactions in the model. Reactions that either have no substrate or product.
exchanges	DictList	Exchange reactions in model. Reactions that exchange mass with the exterior. Uses annotations and heuristics to exclude non-exchanges such as sink reactions.
demands	DictList	Demand reactions in model. Irreversible reactions that accumulate or consume a metabolite in the inside of the model.
sinks	DictList	Sink reactions in model. Reversible reactions that accumulate or consume a metabolite in the inside of the model.
objective	optlang.interface.Objective	Before introduction of the optlang based problems, this function returned the objective reactions as a list. With optlang, the objective is not limited a simple linear summation of individual reaction fluxes, making that return value ambiguous. Henceforth, use cobra.util.solver.linear_reaction_coefficients to get a dictionary of reactions with their linear coefficients (empty if there are none) The set value can be dictionary (reactions as keys, linear coefficients as values), string (reaction identifier), int (reaction index), Reaction or problem.Objective or sympy expression directly interpreted as objectives.

methods:

Method	Parameters	Return type	Description
copy	None	cobra.Model	Provides a partial ‘deepcopy’ of the Model. All of the Metabolite, Gene, and Reaction objects are created anew but in a faster fashion than deepcopy
add_metabolites	metabolite_list (list)	None	Will add a list of metabolites to the model object and add new constraints accordingly.
remove_metabolites	metabolite_list (list) destructive (bool)	None	Remove a list of metabolites from the the object.
add_boundary	metabolite (cobra.Metabolite) type (str, {"exchange", "demand", "sink"}) reaction_id (str, optional) lb (float, optional) ub (float, optional) sbo_term (str, optional)	cobra.Reaction	Add a boundary reaction for a given metabolite. There are three different types of pre-defined boundary reactions: exchange, demand, and sink reactions. An exchange reaction is a reversible, unbalanced reaction that adds to or removes an extracellular metabolite from the extracellular compartment. A demand reaction is an irreversible reaction that consumes an intracellular metabolite. A sink is similar to an exchange but specifically for intracellular metabolites. If you set the reaction type to something else, you must specify the desired identifier of the created reaction along with its upper and lower bound. The name will be given by the metabolite name and the given type.
add_reactions	reaction_list (list)	None	Add reactions to the model. Reactions with identifiers identical to a reaction already in the model are ignored.
remove_reactions	reaction_list (list) remove_orphans (bool)	None	Remove reactions from the model.
slim_optimize	error_value (float, None) message (string)	float	Optimize model without creating a solution object.
optimize	objective_sense ({None, 'maximize' 'minimize'}, optional) raise_error (bool)	cobra.Solution	Optimize the model using flux balance analysis.
summary	solution (cobra.Solution, optional) threshold (float, optional) fva (pandas.DataFrame or float, optional) names (bool, optional) float_format (callable, optional)	cobra.ModelSummary	Create a summary of the exchange fluxes of the model.

# components of a cobra Model

print(f"{len(model.reactions)} Reactions in the model\n------------------")
for r in model.reactions[:10]:
    print(f"{r.id}: {r.reaction}, associated with {r.gene_name_reaction_rule}")
print()


print(f"{len(model.metabolites)} Metabolites in the model\n------------------")
for m in model.metabolites[:10]:
    print(f"{m.id}: {m.name}")
print()


print(f"{len(model.genes)} Genes in the model\n------------------")
for g in model.genes[:10]:
    print(f"{g.id}: {g.name}")

95 Reactions in the model
------------------
ACALD: acald_c + coa_c + nad_c <=> accoa_c + h_c + nadh_c, associated with mhpF or adhE
ACALDt: acald_e <=> acald_c, associated with G_s0001
ACKr: ac_c + atp_c <=> actp_c + adp_c, associated with ackA or tdcD or purT
ACONTa: cit_c <=> acon_C_c + h2o_c, associated with acnB or acnA
ACONTb: acon_C_c + h2o_c <=> icit_c, associated with acnB or acnA
ACt2r: ac_e + h_e <=> ac_c + h_c, associated with
ADK1: amp_c + atp_c <=> 2.0 adp_c, associated with adk
AKGDH: akg_c + coa_c + nad_c --> co2_c + nadh_c + succoa_c, associated with sucA and lpd and sucB
AKGt2r: akg_e + h_e <=> akg_c + h_c, associated with kgtP
ALCD2x: etoh_c + nad_c <=> acald_c + h_c + nadh_c, associated with adhP or frmA or adhE

72 Metabolites in the model
------------------
13dpg_c: 3-Phospho-D-glyceroyl phosphate
2pg_c: D-Glycerate 2-phosphate
3pg_c: 3-Phospho-D-glycerate
6pgc_c: 6-Phospho-D-gluconate
6pgl_c: 6-phospho-D-glucono-1,5-lactone
ac_c: Acetate
ac_e: Acetate
acald_c: Acetaldehyde
acald_e: Acetaldehyde
accoa_c: Acetyl-CoA

137 Genes in the model
------------------
b1241: adhE
b0351: mhpF
s0001: G_s0001
b3115: tdcD
b1849: purT
b2296: ackA
b1276: acnA
b0118: acnB
b0474: adk
b0116: lpd

# deepcopy a cobra model
model_copy = model.copy()

new_reaction = cobra.Reaction("new_rxn_1")
model_copy.add_reactions([new_reaction])

len(model_copy.reactions), len(model.reactions)

(96, 95)

# model objective
print(model.objective)

Maximize
1.0*Biomass_Ecoli_core - 1.0*Biomass_Ecoli_core_reverse_2cdba

# check the reaction in the objective function
model.reactions.get_by_id("Biomass_Ecoli_core")

Reaction identifier	Biomass_Ecoli_core
Name	Biomass Objective Function with GAM
Memory address	0x7fcd71766850
Stoichiometry	1.496 3pg_c + 3.7478 accoa_c + 59.81 atp_c + 0.361 e4p_c + 0.0709 f6p_c + 0.129 g3p_c + 0.205 g6p_c + 0.2557 gln__L_c + 4.9414 glu__L_c + 59.81 h2o_c + 3.547 nad_c + 13.0279 nadph_c + 1.7867 oaa_c... 1.496 3-Phospho-D-glycerate + 3.7478 Acetyl-CoA + 59.81 ATP + 0.361 D-Erythrose 4-phosphate + 0.0709 D-Fructose 6-phosphate + 0.129 Glyceraldehyde 3-phosphate + 0.205 D-Glucose 6-phosphate + 0.2557...
GPR
Lower bound	0.0
Upper bound	1000.0

Reactions (cobra.core.reaction.Reaction)

---

attribute:

Attribute	Type	Description
id	string	The identifier to associate with this reaction
name	string	A human readable name for the reaction
reaction	string	Human readable reaction string
lower_bound	float	The lower flux bound
upper_bound	float	The upper flux bound
bounds	tupple	The upper and the lower flux bounds
subsystem	string	Subsystem where the reaction is meant to occur
objective_coefficient	float	The coefficient for this reaction in a linear objective
flux_expression	sympy expression	Forward flux expression
flux	float	The flux value in the most recent solution.
reduced_cost	float	The reduced cost in the most recent solution.
metabolites	dict (cobra.metabolite: float)	The dict of metabolites involved in the reaction.
genes	frozenset (cobra.gene)	The frozenset of genes involved in the reaction.
gene_reaction_rule	string	The boolean representation of the gene requirements for the reaction to be active.

methods:

Method	Parameters	Return type	Description
remove_from_model	remove_orphans=False (bool)	None	Removes the reaction from a model.
get_coefficient	metabolite_id (str or cobra.Metabolite)	float	Return the stoichiometric coefficient of a metabolite.
get_coefficients	metabolite_ids (iterable)	map	Return the stoichiometric coefficients for a list of metabolites.
add_metabolites	metabolites_to_add (dict) combine (bool) reversibly (bool)	None	Add metabolites and stoichiometric coefficients to the reaction. If the final coefficient for a metabolite is 0 then it is removed from the reaction.
subtract_metabolites	metabolites (dict) combine (bool) reversibly (bool)	None	Subtract metabolites from a reaction. That means add the metabolites with -1*coefficient. If the final coefficient for a metabolite is 0 then the metabolite is removed from the reaction.
build_reaction_string	use_metabolite_names=False (bool)	str	Generate a human readable reaction string
build_reaction_from_string	reaction_str (string) verbose (bool) fwd_arrow (re.compile) rev_arrow (re.compile) reversible_arrow (re.compile) term_split (string)	None	Builds reaction from reaction equation reaction_str using parser Takes a string and using the specifications supplied in the optional arguments infers a set of metabolites, metabolite compartments and stoichiometries for the reaction. It also infers the reversibility of the reaction from the reaction arrow.
knock_out	None	None	Knockout reaction by setting its bounds to zero.

# create new reactions
# cobra.Reaction(id=...)
new_rxns = [cobra.Reaction(id=f"R{i}", name=f"reaction No.{i}", lower_bound=0, upper_bound=1000) for i in range(1, 10)]

# add reactions to a model
model_copy.add_reactions(new_rxns)
print(model_copy.reactions[-10:])
print(f"Now the model has {len(model_copy.reactions)} reactions")

# remove reactions from a model
model_copy.remove_reactions(new_rxns)
print(f"Now the model has {len(model_copy.reactions)} reactions")

[<Reaction new_rxn_1 at 0x7fcd71787210>, <Reaction R1 at 0x7fcd71405890>, <Reaction R2 at 0x7fcd71406050>, <Reaction R3 at 0x7fcd71406010>, <Reaction R4 at 0x7fcd71405f50>, <Reaction R5 at 0x7fcd71405dd0>, <Reaction R6 at 0x7fcd71406850>, <Reaction R7 at 0x7fcd71406a10>, <Reaction R8 at 0x7fcd71406bd0>, <Reaction R9 at 0x7fcd71406d90>]
Now the model has 105 reactions
Now the model has 96 reactions

# get a reaction from a model
print(model.reactions[0])
print(model.reactions.get_by_id("ACALDt"),"\n")


# reactions attributes
rxn = model.reactions.get_by_id("ACALD")
print(f"ID: {rxn.id}\n\
        Name: {rxn.name}\n\
        Lower bound: {rxn.lower_bound}\n\
        Upper bound: {rxn.upper_bound}\n\
        Subsystem: {rxn.subsystem}\n\
        Metabolites: {rxn.metabolites}\n\
        Genes: {rxn.genes}\n\
        Gene-reaction rule: {rxn.gene_reaction_rule}")

ACALD: acald_c + coa_c + nad_c <=> accoa_c + h_c + nadh_c
ACALDt: acald_e <=> acald_c

ID: ACALD
        Name: acetaldehyde dehydrogenase (acetylating)
        Lower bound: -1000.0
        Upper bound: 1000.0
        Subsystem:
        Metabolites: {<Metabolite acald_c at 0x7fcd716c9850>: -1.0, <Metabolite coa_c at 0x7fcd7170a690>: -1.0, <Metabolite nad_c at 0x7fcd7171f7d0>: -1.0, <Metabolite accoa_c at 0x7fcd716cb4d0>: 1.0, <Metabolite h_c at 0x7fcd7171bad0>: 1.0, <Metabolite nadh_c at 0x7fcd7171fb50>: 1.0}
        Genes: frozenset({<Gene b0351 at 0x7fcd71d98cd0>, <Gene b1241 at 0x7fcd84449150>})
        Gene-reaction rule: b0351 or b1241

rxn.build_reaction_string()

'acald_c + coa_c + nad_c <=> accoa_c + h_c + nadh_c'

new_rxn = cobra.Reaction("dummy_rxn")
model_copy.add_reactions([new_rxn])
new_rxn

Reaction identifier	dummy_rxn
Name
Memory address	0x7fcd7153cd50
Stoichiometry	--> -->
GPR
Lower bound	0.0
Upper bound	1000.0

# build a reaction by a human readable reaction string
new_rxn.build_reaction_from_string("acald_c + coa_c + nad_c --> accoa_c + h_c + nadh_c")
new_rxn

Reaction identifier	dummy_rxn
Name
Memory address	0x7fcd7153cd50
Stoichiometry	acald_c + coa_c + nad_c --> accoa_c + h_c + nadh_c Acetaldehyde + Coenzyme A + Nicotinamide adenine dinucleotide --> Acetyl-CoA + H+ + Nicotinamide adenine dinucleotide - reduced
GPR
Lower bound	0
Upper bound	1000.0

# assign new values to the reaction attributes
new_rxn.name = "R123"
new_rxn.lower_bound, new_rxn.upper_bound = -1, 30
new_rxn.subsystem = "new subsystem"
new_rxn

Reaction identifier	dummy_rxn
Name	R123
Memory address	0x7fcd7153cd50
Stoichiometry	acald_c + coa_c + nad_c <=> accoa_c + h_c + nadh_c Acetaldehyde + Coenzyme A + Nicotinamide adenine dinucleotide <=> Acetyl-CoA + H+ + Nicotinamide adenine dinucleotide - reduced
GPR
Lower bound	-1
Upper bound	30

# knock out a reaction
new_rxn.knock_out()
new_rxn.bounds

(0, 0)

Metabolites (cobra.core.metabolite.Metabolite)

---

attribute:

Attribute	Type	Description
id	str	the identifier to associate with the metabolite
formula	str	Chemical formula (e.g. H2O)
name	str	A human readable name.
charge	float	The charge number of the metabolite
compartment	str or None	Compartment of the metabolite.
elements	dict	Dictionary of elements as keys and their count in the metabolite as integer.
shadow_price	float	The shadow price in the most recent solution.

method:

Method	Parameters	Return type	Description
remove_from_model	destructive (bool)	None	Removes the association from self.model
summary	solution=None (cobra.Solution) threshold=0.01 (float) fva=None (pandas.DataFrame or float) names=False (bool) float_format='{:.3g}'.format (callable)	cobra.MetaboliteSummary	Create a summary of the producing and consuming fluxes. This method requires the model for which this metabolite is a part to be solved.

# create a new metabolite
new_met = cobra.Metabolite(id="met_c", name="new metabolite", formula="C100H200", compartment="c")
print(new_met.elements)
new_met

{'C': 100, 'H': 200}

Metabolite identifier	met_c
Name	new metabolite
Memory address	0x7fcd71419990
Formula	C100H200
Compartment	c
In 0 reaction(s)

# add a metabolite to a reaction
new_rxn.add_metabolites({
    new_met: 1
})
new_rxn

Reaction identifier	dummy_rxn
Name	R123
Memory address	0x7fcd7153cd50
Stoichiometry	acald_c + coa_c + nad_c --> accoa_c + h_c + met_c + nadh_c Acetaldehyde + Coenzyme A + Nicotinamide adenine dinucleotide --> Acetyl-CoA + H+ + new metabolite + Nicotinamide adenine dinucleotide - reduced
GPR
Lower bound	0
Upper bound	0

# remove a metabolite from a reaction
new_rxn.subtract_metabolites({
    new_met: 1
})
new_rxn

Reaction identifier	dummy_rxn
Name	R123
Memory address	0x7fcd7153cd50
Stoichiometry	acald_c + coa_c + nad_c --> accoa_c + h_c + nadh_c Acetaldehyde + Coenzyme A + Nicotinamide adenine dinucleotide --> Acetyl-CoA + H+ + Nicotinamide adenine dinucleotide - reduced
GPR
Lower bound	0
Upper bound	0

# remove metabolite from a model
model_copy.remove_metabolites([model_copy.metabolites.get_by_id("met_c")])

# get a metabolite from a model
print(model.metabolites[0])
print(model.metabolites.get_by_id("mal__L_c"),"\n")

# metabolites property
met = model.metabolites.get_by_id("mal__L_c")
print(f"ID: {met.id}\n\
        Name: {met.name}\n\
        Formula: {met.formula}\n\
        Charge: {met.charge}\n\
        Compartment: {met.compartment}\n\
        Reactions: {met.reactions}\n")

13dpg_c
mal__L_c

ID: mal__L_c
        Name: L-Malate
        Formula: C4H4O5
        Charge: -2
        Compartment: c
        Reactions: frozenset({<Reaction MDH at 0x7fcd715d6a10>, <Reaction ME1 at 0x7fcd715d7750>, <Reaction MALS at 0x7fcd715d4f50>, <Reaction ME2 at 0x7fcd715e4e90>, <Reaction FUM at 0x7fcd717a5990>, <Reaction MALt2_2 at 0x7fcd715d77d0>})

met.summary()

mal__L_c

C4H4O5

Producing Reactions

Percent	Flux	Reaction	Definition
100.00%	5.064	FUM	fum_c + h2o_c <=> mal__L_c

Consuming Reactions

Percent	Flux	Reaction	Definition
100.00%	-5.064	MDH	mal__L_c + nad_c <=> h_c + nadh_c + oaa_c

Genes (cobra.core.gene.Gene)

---

attribute:

Attribute	Type	Description
id	str	The identifier to associate the gene with
name	str	A longer human readable name for the gene
functional	bool	Indicates whether the gene is functional. If it is not functional then it cannot be used in an enzyme complex nor can its products be used.

method:

Method	Parameters	Return type	Description
knock_out	None	None	Knockout gene by marking it as non-functional and setting all associated reactions bounds to zero.

# create a new gene
new_gen = cobra.Gene(id="404", name="new gene")
print(new_gen.id, new_gen.name)

404 new gene

# get a gene
gene = model_copy.genes.get_by_id("b1241")
print(gene.id)

gene = model_copy.genes[10]
gene

b1241

Gene identifier	b0726
Name	sucA
Memory address	0x7fcd7155fbd0
Functional	True
In 1 reaction(s)	AKGDH

# related rxn
gene.reactions

frozenset({<Reaction AKGDH at 0x7fcd7157ab50>})

# check boolean relationship
list(gene.reactions)[0].gene_reaction_rule

'b0726 and b0116 and b0727'

# add a gene to a model
print(f"Number of genes : {len(model_copy.genes)}")
list(gene.reactions)[0].gene_reaction_rule = f"{list(gene.reactions)[0].gene_reaction_rule} and 404"

print(f"Number of genes : {len(model_copy.genes)}")

Number of genes : 137
Number of genes : 138

# They are not the same object!!
model_copy.genes.get_by_id("404") == new_gen

print(id(model_copy.genes.get_by_id("404")), id(new_gen))

140520346671312 140521287593104

model_copy.reactions[0].gene_reaction_rule = f"{model_copy.reactions[0].gene_reaction_rule} or 404"

print(model_copy.genes.get_by_id("404").reactions)

frozenset({<Reaction ACALD at 0x7fcd71579650>, <Reaction AKGDH at 0x7fcd7157ab50>})

# knocking out a gene
model_copy.genes.get_by_id("404").knock_out()

# The related reactions might be influenced after you knock out a gene
for i in model_copy.genes.get_by_id("404").reactions:
    print(i)
    print(i.gene_reaction_rule)
    print(f"{i.id} is functional? {i.functional}")
    print()

ACALD: acald_c + coa_c + nad_c <=> accoa_c + h_c + nadh_c
b0351 or b1241 or 404
ACALD is functional? True

AKGDH: akg_c + coa_c + nad_c --> co2_c + nadh_c + succoa_c
b0726 and b0116 and b0727 and 404
AKGDH is functional? False

Configuration

reference: https://cobrapy.readthedocs.io/en/stable/configuration.html

# The object has the following attributes which you can inspect but also change as desired.

cobra_config = cobra.Configuration()
cobra_config.bounds

(-1000.0, 1000.0)

# change default bounds
cobra_config.bounds = -10, 30
cobra.Reaction("R1", lower_bound=None)

Reaction identifier	R1
Name
Memory address	0x7fcd714182d0
Stoichiometry	<=> <=>
GPR
Lower bound	-10
Upper bound	30

# change default solver
cobra_config.solver = "glpk_exact"
new_model = load_model("textbook")

Using context manager

with model:
    model.reactions[10].bounds = (-2000, 2000)
    model.reactions[9].knock_out()

    print(model.reactions[10].bounds)
    print(model.reactions[9].bounds)

    new_rxn2 = cobra.Reaction("r2")
    new_met2 = cobra.Metabolite("m2")
    model.add_metabolites([new_met2])
    model.add_reactions([new_rxn2])
    new_rxn2.build_reaction_from_string("m2 -->")

    print(model.reactions.r2)

    print(f"The model has {len(model.reactions)} reactions")
    print(f"The model has {len(model.metabolites)} metabolites")

(-2000, 2000)
(0, 0)
r2: m2 -->
The model has 96 reactions
The model has 73 metabolites

# all the changes are reverted
print(model.reactions[10].bounds)
print(model.reactions[9].bounds)

try:
    print(model.reactions.new_rxn2)
except:
    print("Cannot find new_rxn2 in the model")

print(f"The model has {len(model.reactions)} reactions")
print(f"The model has {len(model.metabolites)} metabolites")

(8.39, 1000.0)
(-1000.0, 1000.0)
Cannot find new_rxn2 in the model
The model has 95 reactions
The model has 72 metabolites

Flux balance analysis(FBA)

# The LP problem of the model
print(model.objective)

Maximize
1.0*Biomass_Ecoli_core - 1.0*Biomass_Ecoli_core_reverse_2cdba

# get a dict of {Reaction: objective_coefficient}
from cobra.util.solver import linear_reaction_coefficients
linear_reaction_coefficients(model)

{<Reaction Biomass_Ecoli_core at 0x7fcd71766850>: 1.0}

# modify the model objective
with model:
    model.objective = model.reactions.TPI
    print(f"obj value: {model.slim_optimize()}\n")

    model.objective = {model.reactions.TPI: 2,
                        model.reactions.ACALD: 1}

    # after running FBA, the flux of reaction can be obtained by:
    model.optimize()
    print(f"TPI Flux: {model.reactions.get_by_id('TPI').flux}\nACALD Flux: {model.reactions.get_by_id('ACALD').flux}\nobj value: {model.slim_optimize()}\n")

    model.objective = "ACONTa"

    print(f"obj value: {model.slim_optimize()}\n")

obj value: 10.000000000000034

TPI Flux: 10.000000000000002
ACALD Flux: 0.0
obj value: 20.000000000000004

obj value: 19.999999999999982

# Running FBA
sol = model.optimize()
sol

Optimal solution with objective value 0.874

	fluxes	reduced_costs
ACALD	0.000000	3.864368e-18
ACALDt	0.000000	-0.000000e+00
ACKr	0.000000	-0.000000e+00
ACONTa	6.007250	0.000000e+00
ACONTb	6.007250	0.000000e+00
...	...	...
TALA	1.496984	-1.586585e-17
THD2	0.000000	-2.546243e-03
TKT1	1.496984	-1.914278e-17
TKT2	1.181498	3.173170e-17
TPI	7.477382	0.000000e+00

95 rows × 2 columns

# attributes (analysis results) of a cobra.Solution object
sol.objective_value, sol.status

(0.8739215069684306, 'optimal')

# attributes (analysis results) of a cobra.Solution object
sol.to_frame().fluxes

ACALD     0.000000
ACALDt    0.000000
ACKr      0.000000
ACONTa    6.007250
ACONTb    6.007250
            ...
TALA      1.496984
THD2      0.000000
TKT1      1.496984
TKT2      1.181498
TPI       7.477382
Name: fluxes, Length: 95, dtype: float64

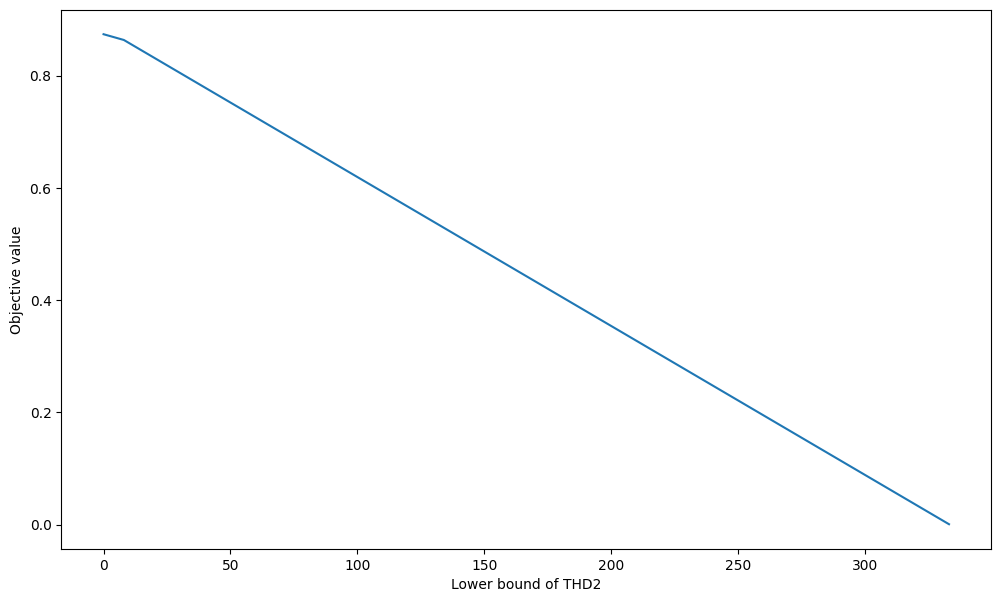

import numpy as np
import matplotlib.pyplot as plt

plt.figure(figsize=(12, 7))
with model:
    X = np.arange(0, 1000)
    Y = np.zeros(X.shape)
    for i, x in enumerate(X):
        THD2 = model.reactions.get_by_id("THD2")
        THD2.lower_bound = x
        Y[i] = model.slim_optimize()
    plt.xlabel("Lower bound of THD2")
    plt.ylabel("Objective value")
    plt.plot(X, Y)

%%timeit
model.slim_optimize()

192 µs ± 6.73 µs per loop (mean ± std. dev. of 7 runs, 10,000 loops each)

%%timeit
model.optimize()

1.43 ms ± 17.4 µs per loop (mean ± std. dev. of 7 runs, 1,000 loops each)

model.summary()

Objective

1.0 Biomass_Ecoli_core = 0.8739215069684297

Uptake

Metabolite	Reaction	Flux	C-Number	C-Flux
glc__D_e	EX_glc__D_e	10	6	100.00%
nh4_e	EX_nh4_e	4.765	0	0.00%
o2_e	EX_o2_e	21.8	0	0.00%
pi_e	EX_pi_e	3.215	0	0.00%

Secretion

Metabolite	Reaction	Flux	C-Number	C-Flux
co2_e	EX_co2_e	-22.81	1	100.00%
h2o_e	EX_h2o_e	-29.18	0	0.00%
h_e	EX_h_e	-17.53	0	0.00%

model.metabolites.get_by_id("atp_c").summary()

atp_c

C10H12N5O13P3

Producing Reactions

Percent	Flux	Reaction	Definition
66.58%	45.51	ATPS4r	adp_c + 4.0 h_e + pi_c <=> atp_c + h2o_c + 3.0 h_c
23.44%	16.02	PGK	3pg_c + atp_c <=> 13dpg_c + adp_c
2.57%	1.758	PYK	adp_c + h_c + pep_c --> atp_c + pyr_c
7.41%	5.064	SUCOAS	atp_c + coa_c + succ_c <=> adp_c + pi_c + succoa_c

Consuming Reactions

Percent	Flux	Reaction	Definition
12.27%	-8.39	ATPM	atp_c + h2o_c --> adp_c + h_c + pi_c
76.46%	-52.27	Biomass_Ecoli_core	1.496 3pg_c + 3.7478 accoa_c + 59.81 atp_c + 0.361 e4p_c + 0.0709 f6p_c + 0.129 g3p_c + 0.205 g6p_c + 0.2557 gln__L_c + 4.9414 glu__L_c + 59.81 h2o_c + 3.547 nad_c + 13.0279 nadph_c + 1.7867 oaa_c + 0.5191 pep_c + 2.8328 pyr_c + 0.8977 r5p_c --> 59.81 adp_c + 4.1182 akg_c + 3.7478 coa_c + 59.81 h_c + 3.547 nadh_c + 13.0279 nadp_c + 59.81 pi_c
0.33%	-0.2235	GLNS	atp_c + glu__L_c + nh4_c --> adp_c + gln__L_c + h_c + pi_c
10.94%	-7.477	PFK	atp_c + f6p_c --> adp_c + fdp_c + h_c

Flux variability analysis(FVA)

from cobra.flux_analysis import flux_variability_analysis as fva

sol = fva(model, fraction_of_optimum=0.8)
sol

	minimum	maximum
ACALD	-5.084741	0.000000
ACALDt	-5.084741	0.000000
ACKr	-7.564396	0.000000
ACONTa	0.754299	10.128462
ACONTb	0.754299	10.128462
...	...	...
TALA	-0.154536	9.249088
THD2	0.000000	69.950657
TKT1	-0.154536	9.249088
TKT2	-0.466373	8.996699
TPI	-0.069595	9.304568

95 rows × 2 columns

model.summary(fva=0.8)

Objective

1.0 Biomass_Ecoli_core = 0.873921506968433

Uptake

Metabolite	Reaction	Flux	Range	C-Number	C-Flux
glc__D_e	EX_glc__D_e	10	[8.093; 10]	6	100.00%
nh4_e	EX_nh4_e	4.765	[3.812; 6.355]	0	0.00%
o2_e	EX_o2_e	21.8	[14.31; 29.44]	0	0.00%
pi_e	EX_pi_e	3.215	[2.572; 3.215]	0	0.00%

Secretion

Metabolite	Reaction	Flux	Range	C-Number	C-Flux
ac_e	EX_ac_e	0	[-7.564; 0]	2	0.00%
acald_e	EX_acald_e	0	[-5.085; 0]	2	0.00%
akg_e	EX_akg_e	0	[-2.86; 0]	5	0.00%
co2_e	EX_co2_e	-22.81	[-30.25; -10.81]	1	100.00%
etoh_e	EX_etoh_e	0	[-4.429; 0]	2	0.00%
for_e	EX_for_e	0	[-19.06; 0]	1	0.00%
glu__L_e	EX_glu__L_e	0	[-2.542; 0]	5	0.00%
h2o_e	EX_h2o_e	-29.18	[-35.34; -15.91]	0	0.00%
h_e	EX_h_e	-17.53	[-33.08; -14.02]	0	0.00%
lac__D_e	EX_lac__D_e	0	[-4.29; 0]	3	0.00%
pyr_e	EX_pyr_e	0	[-5.085; 0]	3	0.00%
succ_e	EX_succ_e	0	[-3.348; 0]	4	0.00%

model.metabolites.get_by_id("atp_c").summary(fva=0.8)

atp_c

C10H12N5O13P3

Producing Reactions

Percent	Flux	Range	Reaction	Definition
66.58%	45.51	[27.44; 69.45]	ATPS4r	adp_c + 4.0 h_e + pi_c <=> atp_c + h2o_c + 3.0 h_c
23.44%	16.02	[8.767; 18.14]	PGK	3pg_c + atp_c <=> 13dpg_c + adp_c
2.57%	1.758	[0; 39.63]	PYK	adp_c + h_c + pep_c --> atp_c + pyr_c
7.41%	5.064	[0; 9.374]	SUCOAS	atp_c + coa_c + succ_c <=> adp_c + pi_c + succoa_c

Consuming Reactions

Percent	Flux	Range	Reaction	Definition
0.00%	0	[0; 7.564]	ACKr	ac_c + atp_c <=> actp_c + adp_c
0.00%	0	[-34.32; 0]	ADK1	amp_c + atp_c <=> 2.0 adp_c
12.27%	-8.39	[-42.71; -8.39]	ATPM	atp_c + h2o_c --> adp_c + h_c + pi_c
76.46%	-52.27	[-52.27; -41.82]	Biomass_Ecoli_core	1.496 3pg_c + 3.7478 accoa_c + 59.81 atp_c + 0.361 e4p_c + 0.0709 f6p_c + 0.129 g3p_c + 0.205 g6p_c + 0.2557 gln__L_c + 4.9414 glu__L_c + 59.81 h2o_c + 3.547 nad_c + 13.0279 nadph_c + 1.7867 oaa_c + 0.5191 pep_c + 2.8328 pyr_c + 0.8977 r5p_c --> 59.81 adp_c + 4.1182 akg_c + 3.7478 coa_c + 59.81 h_c + 3.547 nadh_c + 13.0279 nadp_c + 59.81 pi_c
0.33%	-0.2235	[-34.5; -0.1788]	GLNS	atp_c + glu__L_c + nh4_c --> adp_c + gln__L_c + h_c + pi_c
10.94%	-7.477	[-43.1; 0]	PFK	atp_c + f6p_c --> adp_c + fdp_c + h_c
0.00%	0	[-34.32; 0]	PPCK	atp_c + oaa_c --> adp_c + co2_c + pep_c
0.00%	0	[-34.32; 0]	PPS	atp_c + h2o_c + pyr_c --> amp_c + 2.0 h_c + pep_c + pi_c

### pFBA
from cobra.flux_analysis import pfba

sol = pfba(model)
sol

Optimal solution with objective value 518.422

	fluxes	reduced_costs
ACALD	0.000000e+00	-2.000000
ACALDt	0.000000e+00	2.000000
ACKr	-2.484585e-14	2.000000
ACONTa	6.007250e+00	-2.000000
ACONTb	6.007250e+00	-2.000000
...	...	...
TALA	1.496984e+00	-2.000000
THD2	0.000000e+00	3.822222
TKT1	1.496984e+00	-2.000000
TKT2	1.181498e+00	-2.000000
TPI	7.477382e+00	-2.000000

95 rows × 2 columns

sol.objective_value

518.4220855176067

# the objective value is the sum of fluxes
sol.fluxes.abs().sum()

518.4220855176065
