Fig 6.14 - MMSB

Model of E. coli chemotaxis signalling pathway

using ComponentArrays: ComponentArray
using SimpleUnPack
using OrdinaryDiffEq
using DiffEqCallbacks
using CairoMakie

function model614!(D, u, p, t)
    hil(x, k) = x / (k + x)
    @unpack k1, k2, k3, km1, km2, km3, k4, km4, k5, km5, KM1, KM2, L, R, Atotal, Btotal = p
    @unpack Am, AmL, AL, BP = u
    A = Atotal - Am - AmL - AL
    B = Btotal - BP
    v1 = k1 * BP * hil(Am, KM1)
    v2 = k2 * BP * hil(AmL, KM2)
    v3 = km1 * R
    v4 = km2 * R
    v5 = k3 * L * Am - km3 * AmL
    v6 = k4 * L * A - km4 * AL
    v7 = k5 * Am * B - km5 * BP
    D.Am = v3 - v1 - v5
    D.AmL = v4 - v2 + v5
    D.AL = v2 + v6
    D.BP = v7
    nothing
end

model614! (generic function with 1 method)

ps614 = ComponentArray(
    k1 = 200.0,
    k2 = 1.0,
    k3 = 1.0,
    km1 = 1.0,
    km2 = 1.0,
    km3 = 1.0,
    k4 = 1.0,
    km4 = 1.0,
    k5 = 0.05,
    km5 = 0.005,
    KM1 = 1.0,
    KM2 = 1.0,
    L = 20.0,
    R = 1.0,
    Atotal = 2.0,
    Btotal = 1.0
)

u0614 = ComponentArray(
    Am = 0.0360,
    AmL = 1.5593,
    AL = 0.3504,
    BP = 0.2644
)

ComponentVector{Float64}(Am = 0.036, AmL = 1.5593, AL = 0.3504, BP = 0.2644)

Events to increase L

affect_L1!(integrator) = integrator.p.L = 40.0
affect_L2!(integrator) = integrator.p.L = 80.0
event_L1 = PresetTimeCallback([10.0], affect_L1!)
event_L2 = PresetTimeCallback([30.0], affect_L2!)
cbs = CallbackSet(event_L1, event_L2)
tend = 50.0
prob614 = ODEProblem(model614!, u0614, tend, ps614)

ODEProblem with uType ComponentArrays.ComponentVector{Float64, Vector{Float64}, Tuple{ComponentArrays.Axis{(Am = 1, AmL = 2, AL = 3, BP = 4)}}} and tType Float64. In-place: true
Non-trivial mass matrix: false
timespan: (0.0, 50.0)
u0: ComponentVector{Float64}(Am = 0.036, AmL = 1.5593, AL = 0.3504, BP = 0.2644)

@time sol614 = solve(prob614, Tsit5(), callback=cbs)

  1.022050 seconds (5.48 M allocations: 363.535 MiB, 6.91% gc time, 99.94% compilation time)

retcode: Success
Interpolation: specialized 4th order "free" interpolation
t: 1461-element Vector{Float64}:
  0.0
  0.05177261337107878
  0.07855385959151512
  0.12183666398224637
  0.16755912839346007
  0.22428468941141977
  0.2855225141764318
  0.3443808456113713
  0.3983842394766113
  0.44861315531808205
  ⋮
 49.80541595578783
 49.83246739791603
 49.8595188497345
 49.886570313305015
 49.91362179068935
 49.94067327982574
 49.967724778652425
 49.99477628696323
 50.0
u: 1461-element Vector{ComponentArrays.ComponentVector{Float64, Vector{Float64}, Tuple{ComponentArrays.Axis{(Am = 1, AmL = 2, AL = 3, BP = 4)}}}}:
 ComponentVector{Float64}(Am = 0.036, AmL = 1.5593, AL = 0.3504, BP = 0.2644)
 ComponentVector{Float64}(Am = 0.03599551644359868, AmL = 1.5593077321638846, AL = 0.3786668825555433, BP = 0.2644001586129533)
 ComponentVector{Float64}(Am = 0.036020470807065746, AmL = 1.5593036601019372, AL = 0.3848679710225929, BP = 0.2644002262627703)
 ComponentVector{Float64}(Am = 0.03602357483180375, AmL = 1.5593077996917124, AL = 0.38976424443741975, BP = 0.2644003553293034)
 ComponentVector{Float64}(Am = 0.036024557266477825, AmL = 1.5593126524213565, AL = 0.3918010073395575, BP = 0.26440049294393936)
 ComponentVector{Float64}(Am = 0.03602335906401148, AmL = 1.5593191161695759, AL = 0.39267587496843437, BP = 0.2644006650308085)
 ComponentVector{Float64}(Am = 0.03601742087981962, AmL = 1.5593271372524034, AL = 0.39294668632521823, BP = 0.26440085335001684)
 ComponentVector{Float64}(Am = 0.03600312361706433, AmL = 1.5593370647775553, AL = 0.39301266521513545, BP = 0.2644010389765156)
 ComponentVector{Float64}(Am = 0.035990749909848324, AmL = 1.559345723242336, AL = 0.3930251683035488, BP = 0.26440120897182123)
 ComponentVector{Float64}(Am = 0.03599177356524357, AmL = 1.5593499206371084, AL = 0.3930275248033512, BP = 0.2644013605060869)
 ⋮
 ComponentVector{Float64}(Am = 0.035384633743199334, AmL = 3.623081693047986, AL = -1.6354273720603305, BP = 0.2625847165638323)
 ComponentVector{Float64}(Am = 0.03538472243868463, AmL = 3.623091450455943, AL = -1.6354371294682881, BP = 0.2625844739849415)
 ComponentVector{Float64}(Am = 0.035384810577768974, AmL = 3.623101138028383, AL = -1.6354468170407308, BP = 0.26258423153851357)
 ComponentVector{Float64}(Am = 0.03538489817532546, AmL = 3.623110756475912, AL = -1.63545643548826, BP = 0.2625839892239576)
 ComponentVector{Float64}(Am = 0.03538498524617992, AmL = 3.6231203065016735, AL = -1.635465985514019, BP = 0.2625837470406884)
 ComponentVector{Float64}(Am = 0.03538507178667982, AmL = 3.623129788811437, AL = -1.6354754678237837, BP = 0.2625835049881684)
 ComponentVector{Float64}(Am = 0.03538515779310356, AmL = 3.6231392041037123, AL = -1.6354848831160609, BP = 0.2625832630658657)
 ComponentVector{Float64}(Am = 0.03538524326995567, AmL = 3.6231485530653074, AL = -1.6354942320776529, BP = 0.26258302127323485)
 ComponentVector{Float64}(Am = 0.03537585827451964, AmL = 3.6231561984048746, AL = -1.63550187741722, BP = 0.2625829772715587)

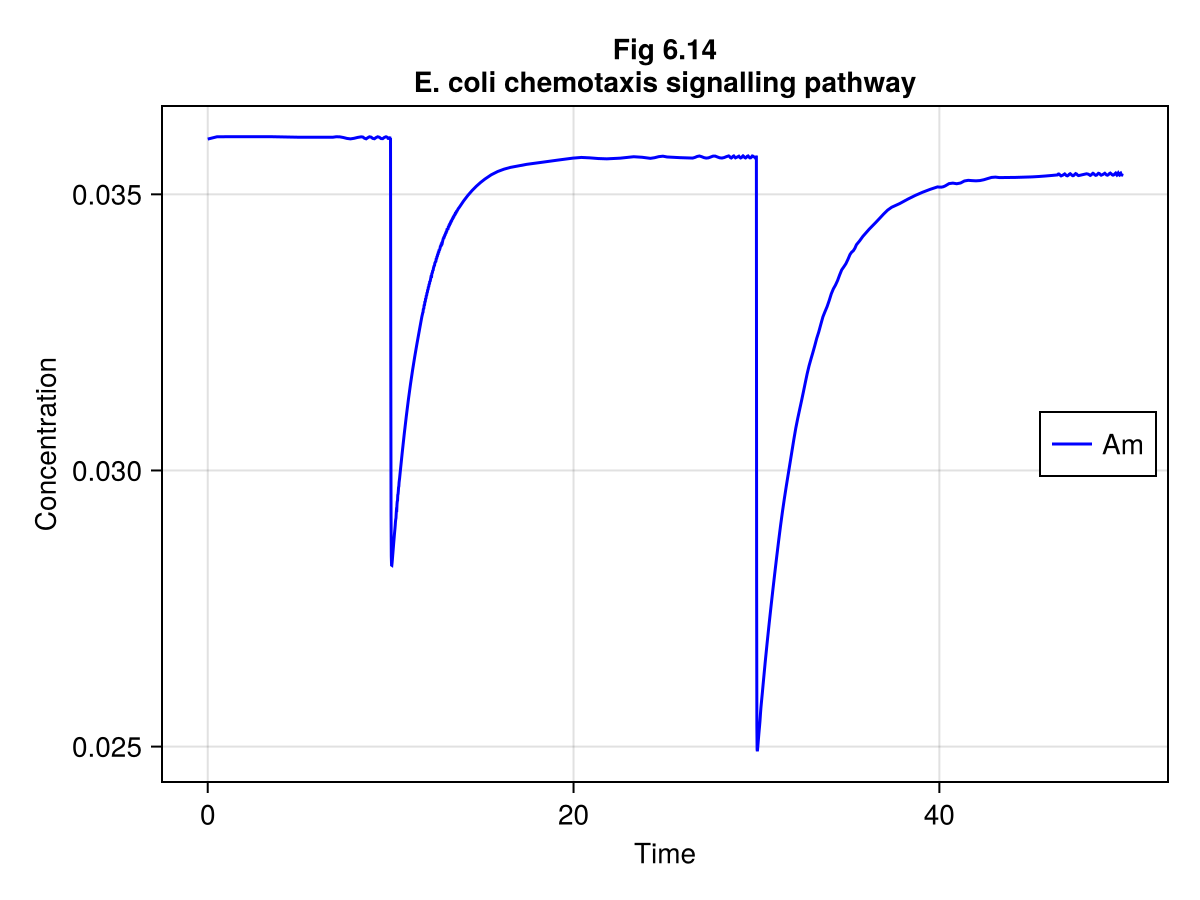

fig = Figure()
ax = Axis(fig[1, 1], xlabel="Time", ylabel="Concentration", title="Fig 6.14\nE. coli chemotaxis signalling pathway")
lines!(ax, 0..tend, t -> sol614(t).Am, color=:blue, label="Am")
axislegend(ax, position=:rc)
fig
